In this article, we take a look at common problems that won't allow your car to start. In the majority of cases, a vehicle doesn't start because of a weak battery or loose battery terminal connections. If your car turns on but all you hear is a click or light dimming try jump-starting your vehicle first.
The first thing you should check is the battery. Even if the car ignition turns on. The battery voltage should be at least 12 volts.
Many auto parts stores perform free battery and alternator test. If you can get your car to start, take it to a store near you to get it tested free of charge.
Loose Battery Terminal
Before condemning a faulty starter to check the condition of the battery cable and battery terminals.
A corroded cable and battery terminal would deliver less voltage to the starter. Therefore a clicking noise can be heard meaning insufficient battery power.
The following video shows you how to clean battery terminals and post using a Battery Terminal Brush.
If your engine overheated you may have blown a head gasket or even worse seized the engine.
You can check if the engine is seized (locked) by manually turning the crankshaft.
Especially if the car overhead or oil light was on while driving. Start by turning the engine over by hand at the crankshaft pulley.
This way you can verify a possible seized engine. If you’re unable to turn the engine over; then the engine possibly threw a rod or main bearing can possibly become loose.
In addition, when an engine is seized the starter will have a hard time turning the engine over therefore a grinding noise can be heard and the starter eventually will become hot.

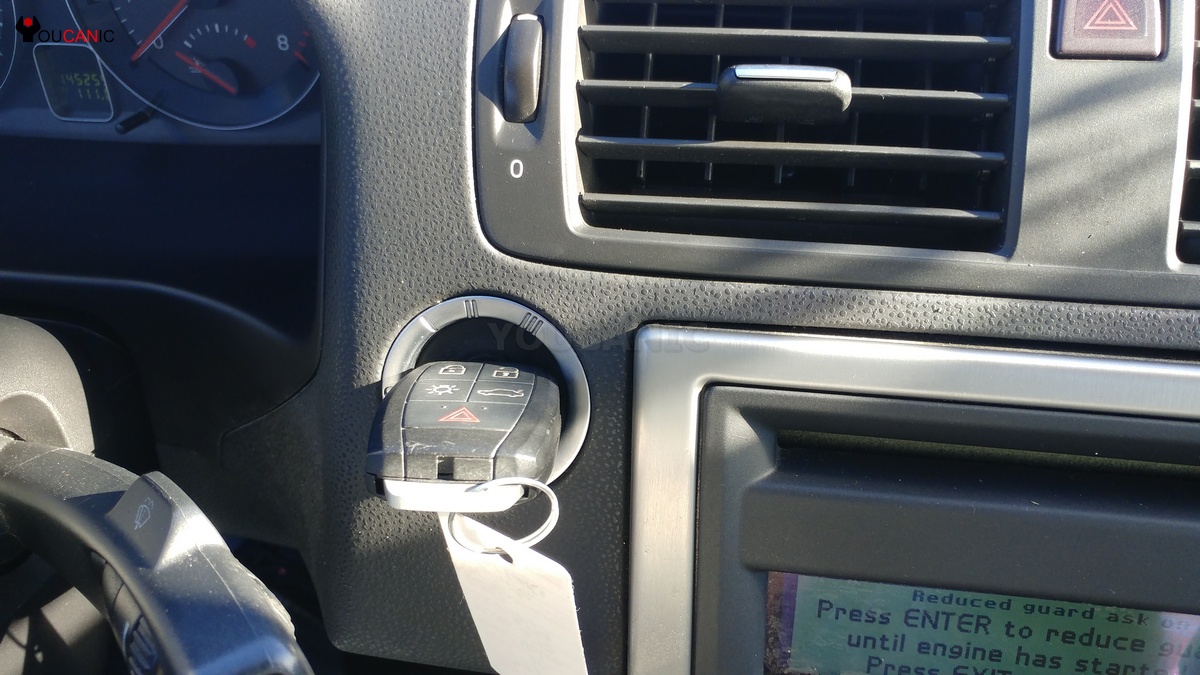

Defective Ignition Switch
First, let’s test the ignition switch. Try to start your vehicle and if the starter is making some noise that means the ignition switch is delivering power to the starter. At this point, the ignition does not need to be replaced.
One of the quickest ways to test for a good ignition switch and ignition switch wire is to test it at the starter. There is a ( +) terminal located on the starter. Use a voltmeter and connect the negative side of the voltmeter to the ground of the vehicle.
This can be on the frame, a bolt, on the engine bay, transmission and so on. Next, take the positive side of the voltmeter and probe the (+) terminal. Have someone turn the key over. If power is reaching to the (+) terminal then the ignition switch is working properly.
Let’s begin with the starter fuse since it is the easiest to check. Locate the starter fuse.
The starter fuse is usually located around the engine bay in the fuse box; it can also be located underneath the steering wheel and some time behind the passenger side panel.
Use a fuse puller and remove the fuse. Check the fuse and make sure it is not blown.
Another issue that can prevent a car from starting is a faulty relay for a critical component. There are four terminals on a starter relay. Two terminals are for power and the other two terminals are for the load side.
On a typical starter, terminal numbers 86 and 85 are for the power side. And the load side is number 87 and 30. Give the power to number 86 and 85. You should be able to hear a clicking noise.
Next, use a multimeter and set it to the ohm setting. Connect the power side and negative side of the multimeter to number 87 and 30.
There should be continuity and reading should be zero. If there is no reading; the relay is faulty.
Use a battery jumper and connect the negative side to the body of the starter. Connect the positive side of the jumper to the (b) terminal.
Next, use a jumper wire or a screwdriver and touch the (b) terminal to the (s) terminal. This should give power to the starter. If the starter motor fails to move, then the starter is faulty.
