How to Prevent Catalytic Converter From Getting Stolen
/ May 11, 2021
Catalytic converter thefts have skyrocketed due to the high demand for platinum and rhodium metals found in small quantities inside a catalytic converter.

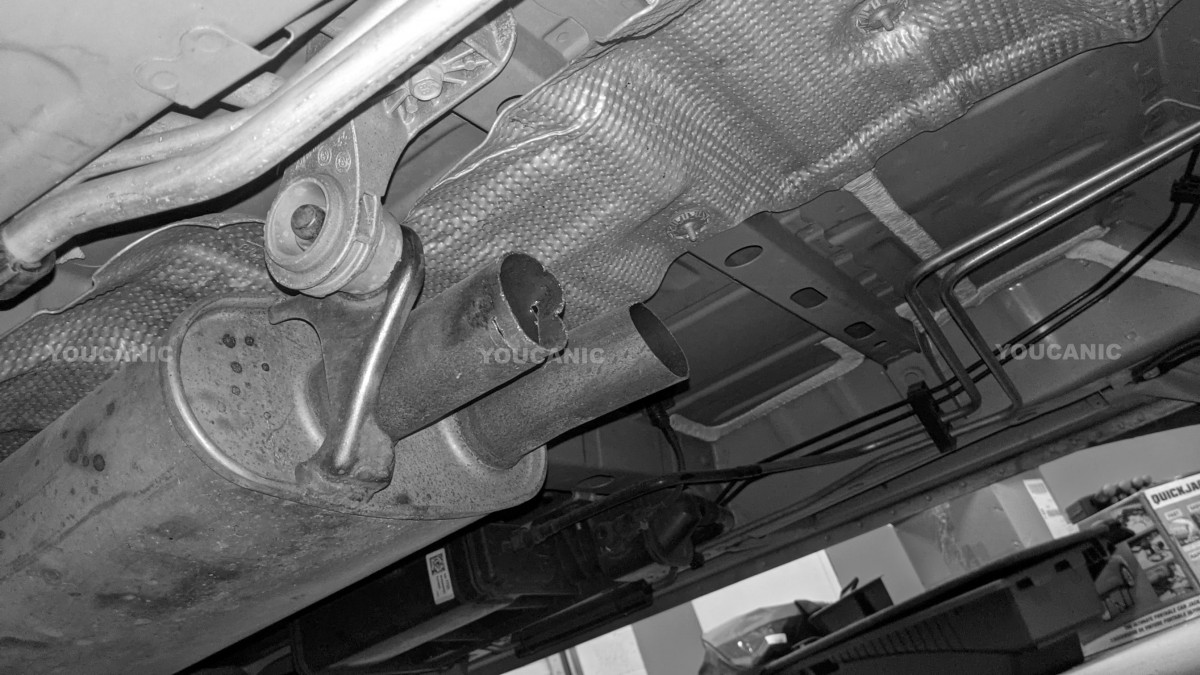

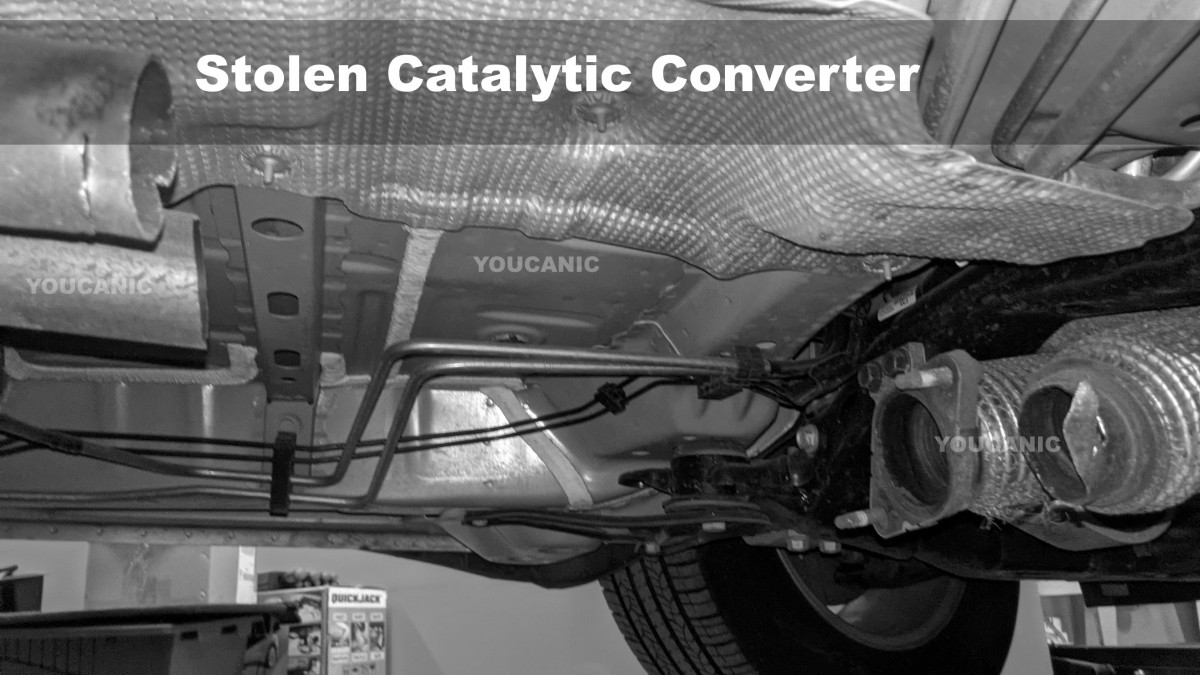

This 2020 Buick Enclalvbe has a total of four catalytic converters. Both of the lower catalytic converters were stolen, as shown in this picture.
The most stolen catalytic converters are from Toyota Prius, SUVs, and trucks. The catalytic converters in these vehicles are the easiest to steal due to the high ground clearance combined with the fact that these vehicles usually don't have plastic shields under the vehicle.
A vehicle that is low to the ground, such as sports cars and luxury vehicles, is harder to steal the catalytic converters. It is harder for a thief to get under these vehicles. Plus, these cars have sensitive alarm systems and catalytic converters that are very hard to access.
A vehicle with a stolen catalytic converter sounds extremely loud when you start it and even louder when you accelerate, plus the check engine light comes on.
A thief can steal a catalytic converter in less than five minutes. A stolen catalytic converter can be sold for about $100 to $200 to scrap metal yards.
Why are thieves stealing catalytic converters?
The main reason that catalytic converters are stolen is that they're valuable to scrap metal dealers. The catalytic converter contains precious metals, including rhodium, platinum, and palladium.
All gasoline cars sold in the US since 1974 have catalytic converters.
The only tools a thief needs to steal a reciprocating saw. Some thieves bring a small jack to raise the vehicle and get under the car.
The function of a catalytic converter on a car is to reduce exhaust emissions. Catalytic converters are worth much money, which is the main reason they get stolen.
Thieves steal catalytic converters (cats) because a catalytic converter contains precious metals like platinum, palladium, and rhodium, worth a lot. Stolen catalytic converters can be sold to scrap metal yards for about $100-$200 a piece, depending on size.
Newer vehicles have anywhere from two to four catalytic converters, which means a thief can easily net $400 by selling two catalytic converters.
How can you protect your catalytic converter from being stolen?
You can also minimize catalytic converter theft by:
Parking in a well-lit area and near security cameras.
Cleaning your garage and parking the car inside instead of parking it outside.
Install an in-vehicle camera to monitor your vehicle when parked.
Do NOT Weld Catalytic Converter to Frame
Do not weld the catalytic converter to the frame to deter thieves.
Welding, a catalytic converter to the frame, is a bad idea as it causes engine vibrations to be transferred to the cabin.
Welding a steel plate below the catalytic converter to prevent theft is acceptable as long as the plate only covers but does not weld or touch the exhaust.
We have also seen vehicle owners install locks to prevent catalytic converter theft.

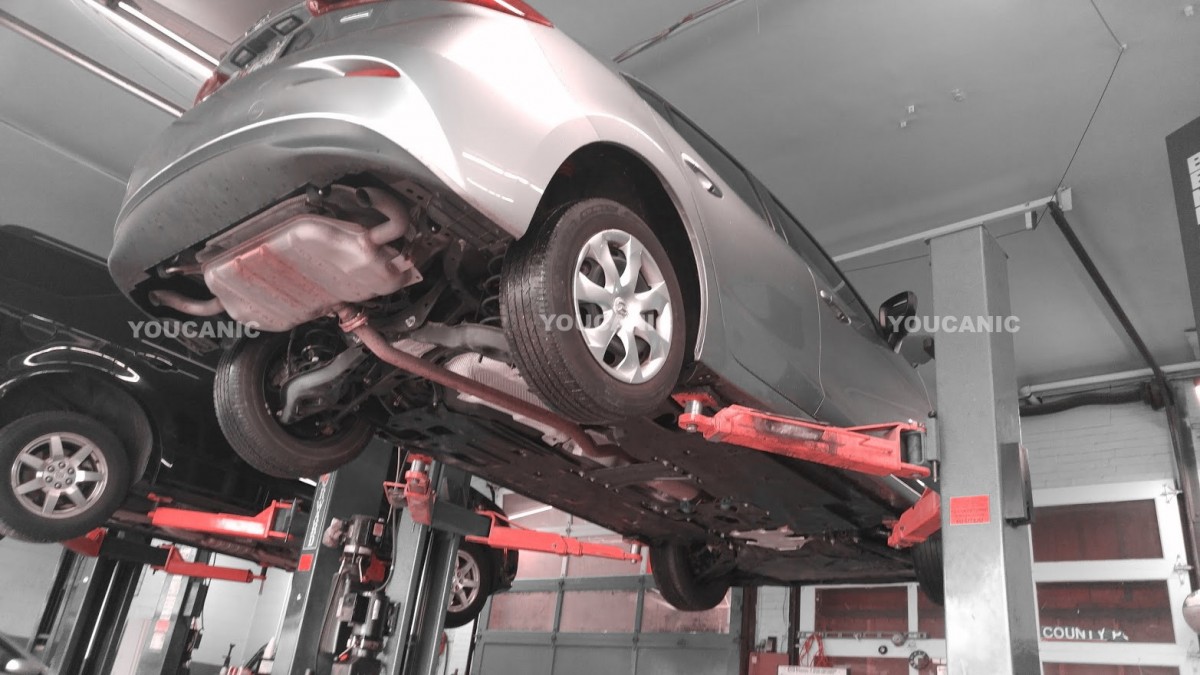

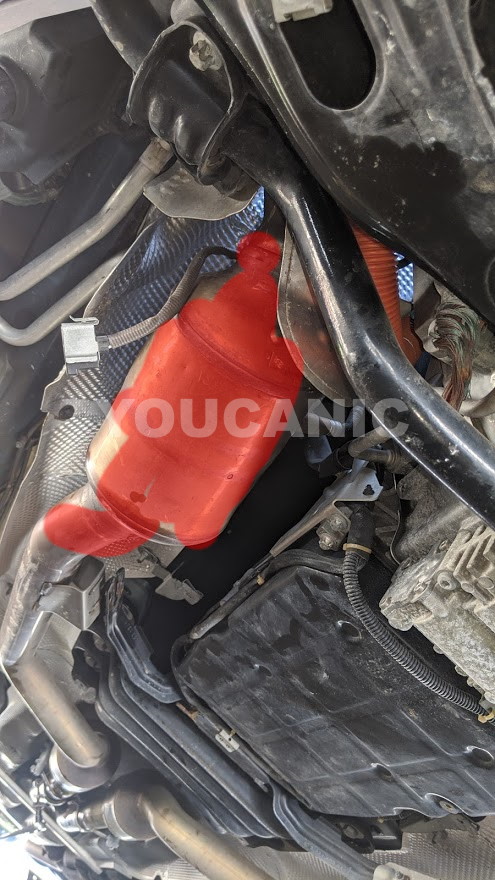

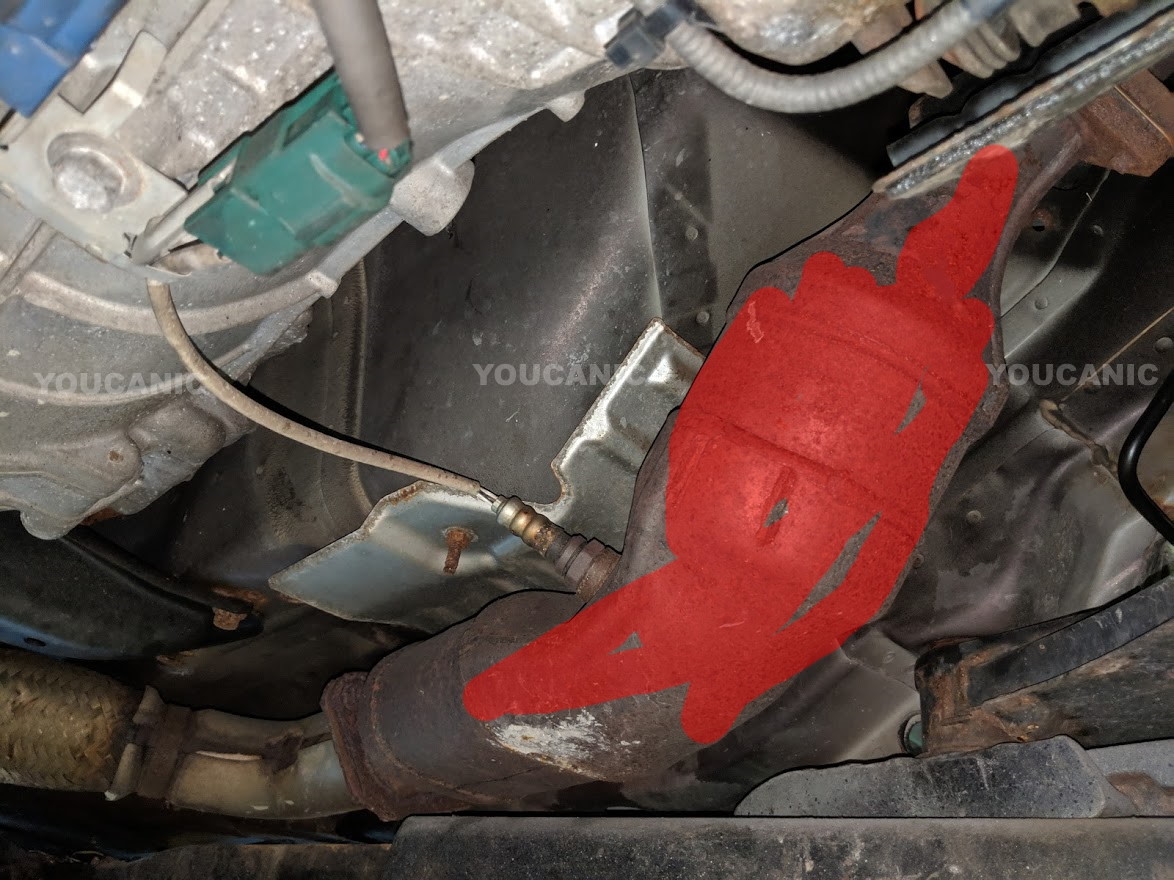

While installing a lock to prevent catalytic converter theft will make it harder to remove the catalytic converter, locks can be easily cut and are not as effective as installing a steel plate under the car or painting your catalytic converter red.
What to do if you had your catalytic converter stolen
Next, call your insurance company and ask if they cover catalytic converter theft. If you have comprehensive coverage, your insurance company will cover your catalytic converter, but you still have to pay the deduction, which for most vehicle owners is $500 or $1000.
If you only have liability coverage, your insurance company will not cover a stolen catalytic converter, in which case you need to pay out of pocket for the repair.
While catalytic converter replacement cost varies depending on the vehicle, make, and model (and how many catalytic converters you need to be replaced), on average, the cost to replace a catalytic converter at a dealership or auto repair shop is between $850 and $2500, including parts and labor. On certain high-end luxury vehicles, catalytic converter cost itself can be up to $2500.
A cheaper alternative is to find a muffler shop in your area and have them retrofit an aftermarket catalytic converter. An aftermarket catalytic converter will cost you between $450 and $800, which is significantly cheaper than having the dealer replace your catalytic converter.
Another option is to replace the catalytic converter yourself with a used one if you have an older vehicle. You can find a used catalytic converter for almost any vehicle on eBay or at a wrenching yard near you. If you purchase a use catalytic converter, you do not have to do any welding as it is a simple bolt-on job.
How long does it take to steal a catalytic converter?
While most catalytic converts are stolen at night, thieves can remove a catalytic converter in less than two minutes, so theft can even occur in broad daylight.
This video shows thieves stealing catalytic converter in under one minute. Thieves can cut the catalytic converter or unbolt it in less than 10 minutes. Some cars are straightforward to steal a catalytic converter from that thieves can steal a catalytic converter in under two minutes.
Frequently Asked Questions
What is a catalytic converter?
A catalytic converter is an anti-pollution device that neutralizes about 90% of the harmful gases in engine exhaust that contribute to smog. They are installed on all internal combustion (IC) gasoline, hybrids, diesel cars, trucks, SUVs, vans.
Where is the catalytic converter located?

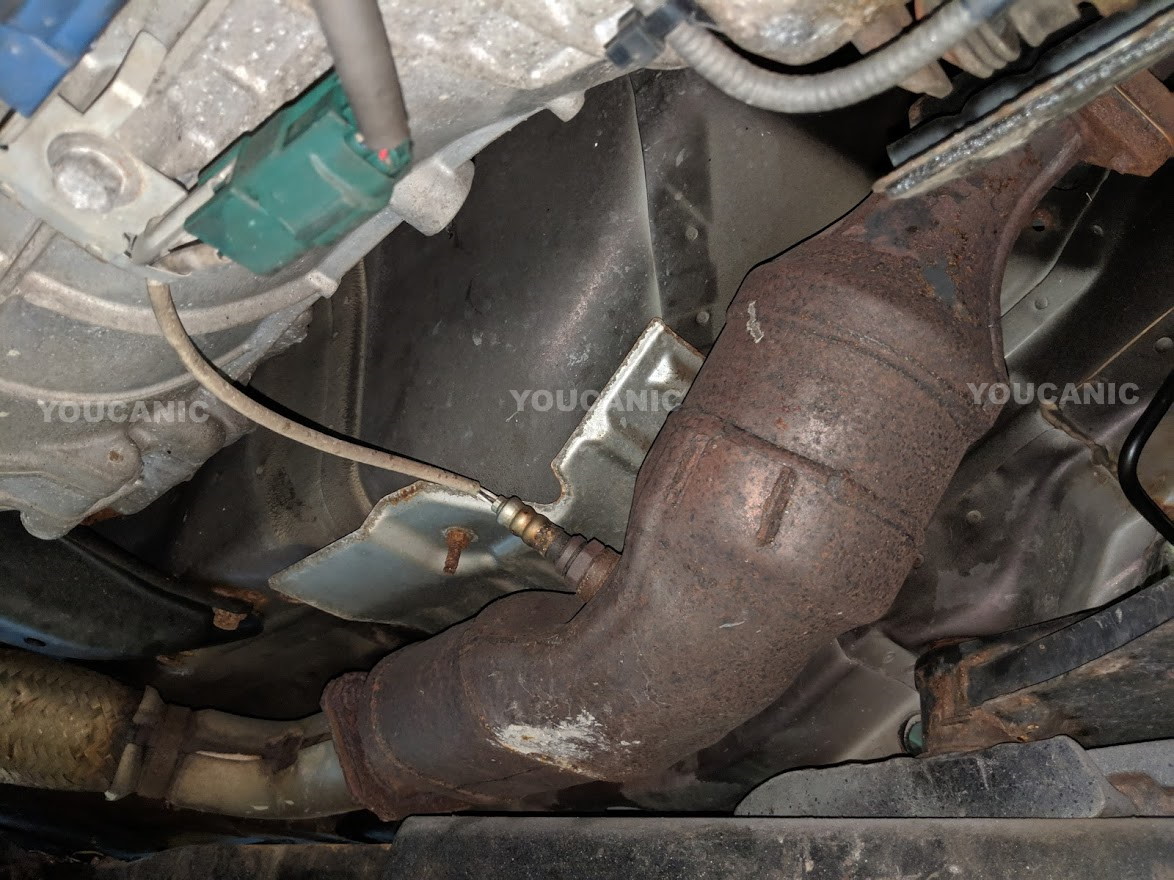

Catalytic converter(s) is located behind the engine and are part of the exhaust system. You can see your catalytic convert by raising the vehicle and looking between the muffler and manifold.
Does my car have a catalytic converter?
All gasoline vehicles have one or more catalytic converters. Diesel vehicles have Diesel Particular Filter or PDF. Hybrid vehicles also have catalytic converters. Electric vehicles do not have catalytic converters.
How many catalytic converters does a car have?

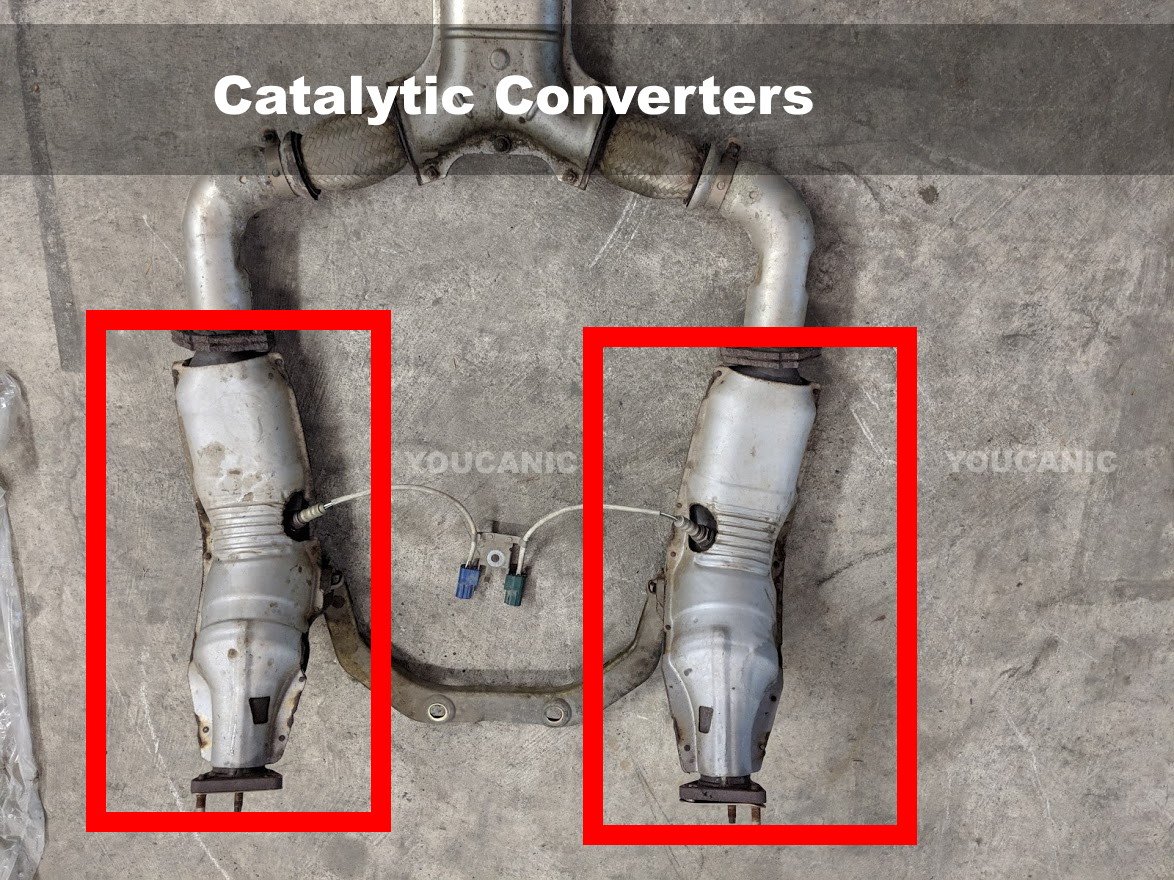

Most four-cylinder gasoline vehicles have only one catalytic converter. Six, eight, ten, or twelve-cylinder engines have at least two catalytic converters, even though four catalytic converters have become more common on newer vehicles.
Will my car insurance pay for a stolen catalytic converter?
It depends on the type of coverage you have.
If you have comprehensive coverage, your insurance will pay for a stolen catalytic converter.
If you have liability coverage, your insurance will not pay for a catalytic converter replacement.
How do you know if your catalytic converter has been stolen?
If your catalytic converter has been stolen, your car will sound very loud when you start it. The noise comes from under the vehicle and can be heard when stopped or driving. You can't miss it.
Can I straight pipe a stolen catalytic converter without there being any damage to the engine?
No. Installing a straight pipe instead of catalytic converters is illegal. Keep in mind that if you install a straight pipe, the check engine light will come on.
Can a car run without a catalytic converter?
Yes, a car can run without a catalytic converter but keep in mind that the engine will sound very loud. Even though you can drive a car without a catalytic converter, you need to make sure that the exhaust pipe will not fall off while driving. Call your mechanic and ask if you can drive the car without a catalytic converter.
Which cars are targeted for catalytic converter theft?
SUVs and trucks are often targeted, including Toyotas and Nissans cars. Vehicles with very low ground clearance or luxury vehicles are not targeted as frequently due to the difficulty of accessing the catalytic converter.
