2003-2009 Mercedes-Benz E-Class CLS-Class Battery Replacement

Vehicle: mercedes-benz/cls-class   2006-2010 (W219)
Difficulty:
DIY Cost: $125-$210
Est. Time: 1 hr

           In this guide, you will learn and become familiar with the process of replacing the battery on a Mercedes E-Class and CLS-Class.

This guide applies to E-Class W211 models such as E320, E500, E550 from 2003 until 2009. It also applies to CLS-Class W219 from 2004 until 2010 such as CLS500, CLS550, CLS55 AMG, CLS63 AMG.

On average, this entire process should only take about an hour or less. Additionally, we would rank this task as easy even for beginners.

What you’ll need

Procedure

How to change the battery on Mercedes-Benz E-Class and CLS-Class models.

  1. Gather all of the necessary tools and a new battery.
  2. Park the vehicle on flat ground with a reliable light source.
  3. Turn the ignition to the off position. Remove the key from the ignition. Leaving the key in the ignition can lead to problems with the ignition system.
  4. Open the trunk and be sure that the trunk stays open.Mercedes E Class CLS class battery replacement



  5. Lift and remove the trunk cover/mat to expose the battery.Mercedes e320 e500 e550 clk500 clk550 battery location

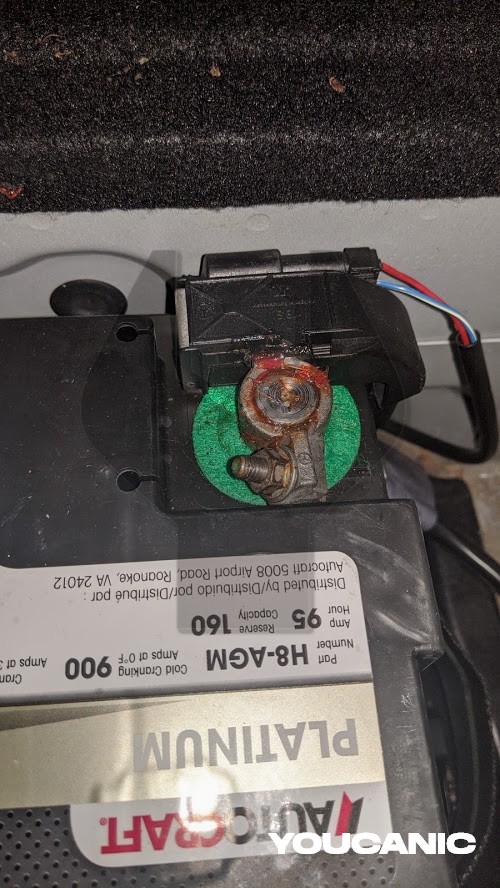

  6. Loosen the negative battery terminal nut with a 10mm socket to disconnect the battery. Next, move the terminal wire to the side.Loosen battery terminal
  7. Loosen the positive battery terminal nut with a 10mm socket and move the terminal wire to the side.Disconnect replace battery on mercedes
  8. Using the 13mm socket, remove the bolt that holds the battery bracket in place.Battery bracket
  9. Disconnect the vent hose.Mercedes battery vent hose
  10. Remove the battery strap that secures the battery in the trunk (if applicable).
  11. Remove the mounting bracket and move all of the cables out of the way. The battery can now be removed and lifted up by the two handles.
  12. Insert the new battery carefully inside of the vehicle remembering that negative and positive must match the position of the old battery.
  13. Reconnect the vent hose and make sure that the mounting bracket is lined up. If your new battery is an  Absorbent Glass Mat (AGM) it won't have a vent hose therefore you don't need to worry about connecting the vent hose.
  14. Insert the battery bracket and tighten the 13mm bolt.
  15. Connect the positive cable back on to the positive battery terminal and tighten the 10mm nut.
  16. Lastly, connect the negative battery cable and tighten the 10mm nut.

If corrosion is present on the battery cables, clean it first before reconnecting them to the battery. Also, we recommend applying battery terminal protector to the battery posts.

Torque Specifications

  • 25 ft/lbs. for both the positive and negative terminals
  • 10 ft/lbs. for each mounting bracket bolt

Tips & Tricks

  • The positive terminal is always on the right if looking at the car from the front.
  • The negative terminal is always on the left if looking at the car from the front.
  • Always check the size, AMPs, and volts of the new battery compared to the old battery.
  • After disconnecting the terminals, use a wire brush and clean off the battery terminals carefully to insure of no major corrosion.
By YOUCANIC Automotive Experts
Nov 2020
