Door Panel Removal Hyundai Elantra 2011-2016

Last Updated on Friday May 18, 2018

In this tutorial, you will learn how to replace the door panel on a Hyundai Elantra 2011-2016. These instructions are shown on the front driver's door panel but the passenger and rear panels can be removed following the same method.

If your interior door handle is broken on your Hyundai Elantra, you need to remove the door panel as described here in order to replace the door handle.  Removing the door panel on a Hyundai Elantra is very easy and can be completed in less than 20 minutes. The door panel is held in place with two screws and several retainer clips / rivets. As far as tools required, all you need is a Phillips and flat screwdriver. A flashlight and an interior trim removal set may also come in handy.

Door Panel Removal Hyundai Elantra 2011-2016


Step 1

Using a flat screwdriver to remove the front door side mirror inner cover. elantra door panel removal replace change diy guide

Step 2

Remove two Phillips screws that hold the dorr panel in place.  One of the screws is near the door handle. The second screw that needs to be removed is in the center of the door panel. Both screws have small plastic covers that need to be removed to access the screws underneath.

Step 3

After loosening the mounting screws, then remove the front door trim. how to remove install inside door panel hyundai elantra 2011 2012 2013 2014 2015 2016

Step 4

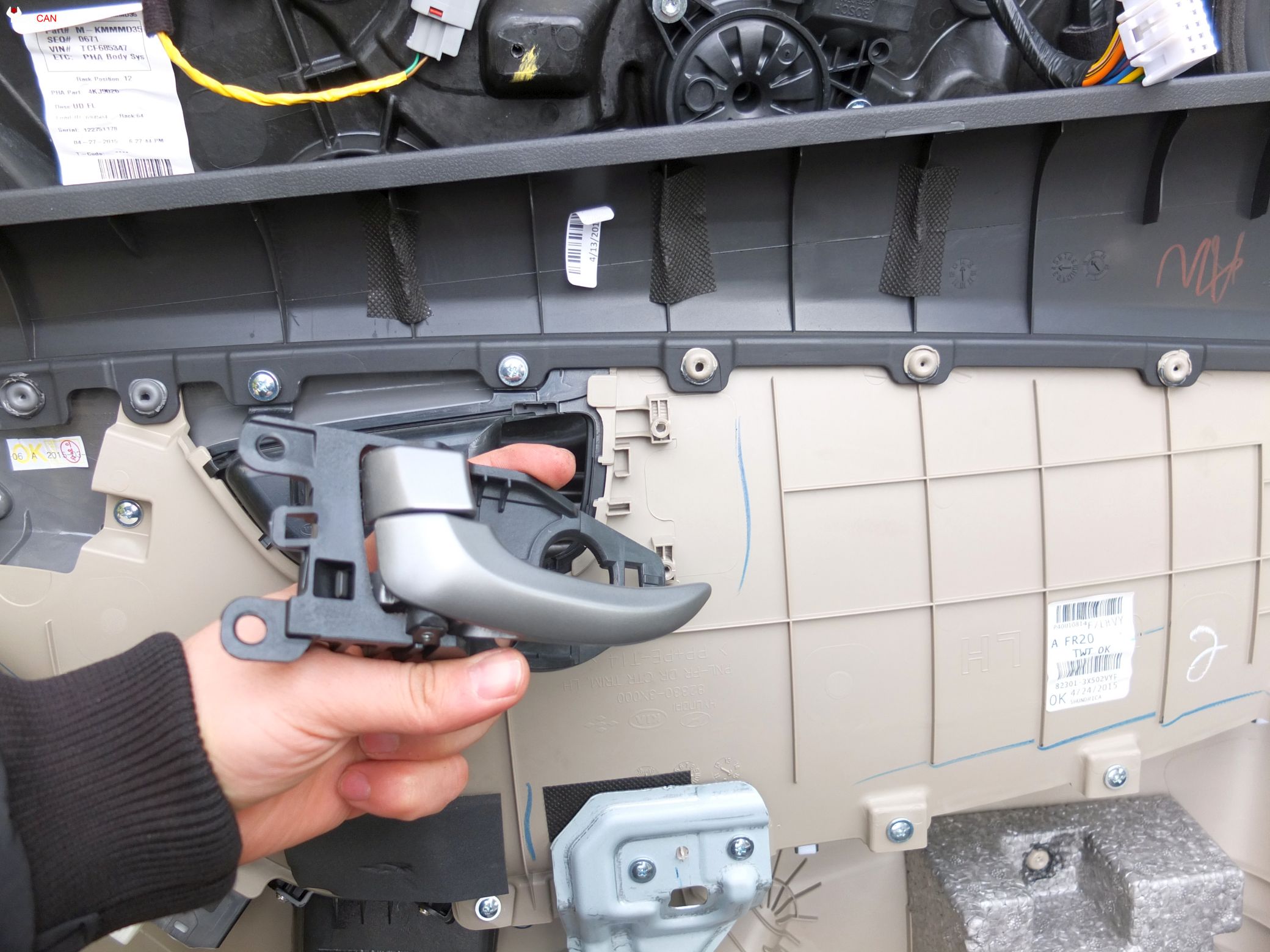

Disconnect the door handle and electrical wires. Next, you need to pop out the door panel. You can use a flat screwdriver but be careful because you can damage your Hyundai door panel. A better tool to use is plastic interior trim removal tool.

Remove the Hyundai door panel by lifting it up since it needs to come off the rail at the top of the door panel. inside door panel replacement hyundai elantra

Step 5

Installation in reverse order.

How to remove door panel Hyundai Elantra
DIY instructions on how to remove and replace interior door panel on Hyundai Elantra model years 2011, 2012, 2013, 2014, 2015, 2016.
