How to replace Mazda engine air filter

Last Updated on Friday Sep 08, 2017

Learn how to change the engine air filter on a Mazda. The pictures and video clips on this guide were recorded on a Mazda 5, but these instructions will help owners of Mazda 3, +, CX5, CX7, CX9 as well which have the same setup. In fact the same air filter fits several Mazda engines including the 2.0L and 2.5L engines.  You will need 15 minutes to replace engine air filter on a Mazda.

Back to top

1. What you will need


Parts Needed

  • Replacement Air Filter (only one):

The air filter part number is different for each Mazda depending on year and model. We have provided links below where you can check price and buy aftermarket Mazda air filters.

  1. K&N 33-2480
  2. Beck Arnley 042-1831
  3. FRAM CA11259
  4. WIX 49247
  5. Purolator A26280
  6. Mahle LX3497
  7. Ecogard XA6280
  8. Mazda PE7W-133A0
  9. AEM 28-20480

If you are looking for the best performance air filter a good choice would be K&N Air Filters. If you are looking for an air filter that allows the least amount of dust into the engine Fram does a good job but it can also restrict the air flow. If you are looking for a good overall filter at a good price Purolator engine filter are a good choice. Unless you like to go with OEM filter then a Genuine Mazda Air Filter (part# PE07-13-3A0, PE07-13-3A0A) is what you need.

Tools Needed

  • Gloves
Back to top

2. Instructions Mazda Engine Air Filter Replacement


Follow these instructions to change the engine air filter on a Mazda.



Step 1: Park and turn off your Mazda

Park your Mazda. Turn off the ignition.

how to change engine air filter on Mazda 5 2010 2011 2012 2013 2014 2015 2016 2017 2018


Step 2: Open Hood

Pull the hood release found under the dashboard on the driver's side.



Step 3: Locate engine air filter

In Mazdas, the engine air filter (air cleaner box) is in the engine bay. It is located on the left/driver side of the engine. Here is a close-up picture of how the air filter cleaner box looks like.

location of mazda engine air filter


Step 4: Remove clips

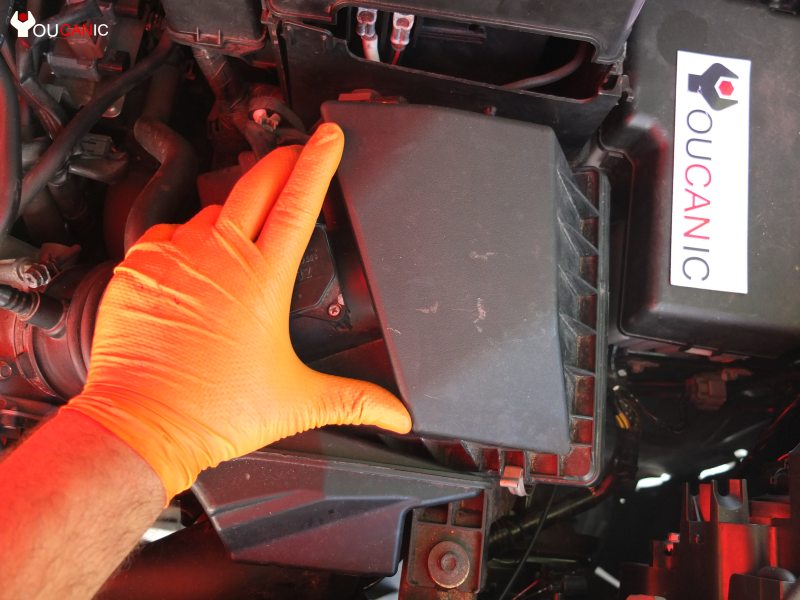

To remove the air filter you first need to release the two metal clips that secure the air filter housing.

2010-2018 Mazda 5 engine air filter replacement guide diy


Step 4: Replace Mazda air filter

Open the air filter housing and pull out the old filter from your Mazda. Check out how dirty your Mazda 5 filter is. If your Mazda air filter housing is dirty clean it up and even vacuum it if necessary.Reinstall the new filter.

Note: Pay attention to the orientation of the old filter. Also, make sure to slide the two tabs on the back of the housing before you close up the housing. Note that if the two tabs aren't in the right slots, you won't be able to lock the air filter housing again.

Back to top

3. Frequently Asked Questions


Yes, you can. It is very easy. In most cases, it only takes about 15 min and no special skills are required.

Change interval for the engine air filter is every 12,000 miles. For most drivers that will be about once a year.

When was the last time you changed your Mazda's engine air cleaner? If it has been over a year you need to change it.

  • Poor fuel economy
  • Air filter dirty
  • Reduced horsepower
Back to top

4. Conclusion


Change your Mazda engine air filter at least once a year or every 12,000. It is easy and only takes 15 min. You don't need any special tool to change the engine air filter on a Mazda. Instructions on how to chance the air filter are very similar for Mazda 3,5,6, CX-5, CX-7 and CX-9.
