2011-2016 Hyundai Elantra Light Bulb Size Table

20,335
Author

Hyundai Elantra 11-16 Light Bulb Size


Sizes of the light bulb are shown in the list below. This table contains Hyundai Elantra headlight bulb size and tail light bulb size for model years 2011, 2012, 2013, 2014, 2015, 2016. You can purchase any of these lights bulbs on Amazon by clicking on the corresponding bulb size.

Hyundai Elantra 11-16 Light Bulb Chart
Hyundai Elantra Bulb Size Lookup Bulb Size, Type, Wattage
Headlight Low Beam Halogen  H11 55W
Headlight Low Beam Projection 9005L+ 60W
Headlight High Beam H7 LL 55W
Front Turn Signal Light / Postion Light P28 8W LED
Fog Lights 881 27W
Stop Tail Lights 2357 or LED
Tail Light  5W
Rear Turn Signal Light 1156NA
Backup Lights W16W
Third brake light W21W
License Plate Light Bulbs W5W
Map, Interior Trunk Feston 5 8W

2011-16 Hyundai Elantra Light Bulb Location


Information on light bulb location and size for Hyundai Elantra model years 2011, 2012, 2013, 2014, 2015, 2016. In the following clip you will be able to identify the light bulb for Hyundai Elantra 2011-16 models.

Hyundai Elantra Location of light bulbs


Hyundai Elantra Headlight Light Bulbs2012 hyundai elantra tail light bulb size

  • Location of Low Beam Light Bulb
  • Location of Turn Signal Light Bulb
  • Location of High Beam Light Bulb
  • Location of Side Marker

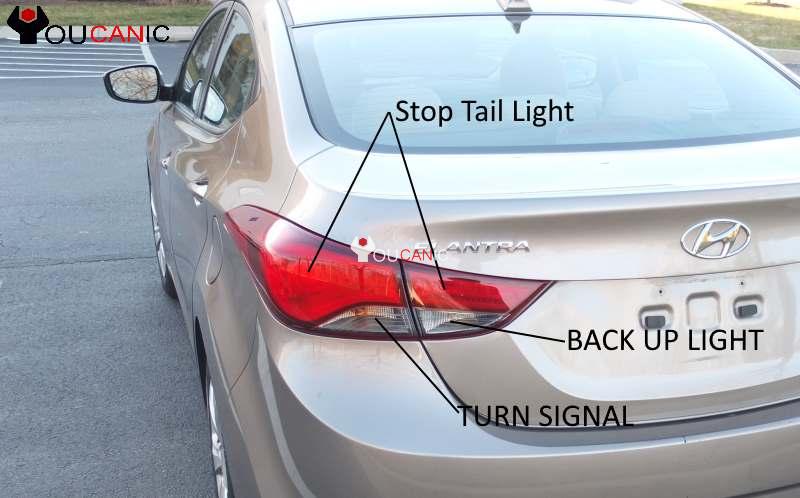

Hyundai Elantra Tail Light Light Bulbs2011 hyundai elantra low beam light bulb size

  • Location of Stop and Tail light bulb
  • Location of Back up Reverse Light Bulb
  • Location of Turn Signal

Hyundai Elantra Light Bulb Sockets
