Chassis

  • Type: TB3/4

Engine 3.5L 6-Cylinder SOHC

  • Recommended Oil Viscosity: 0W-20

  • Oil certification: API

  • Drain plug torque: 30 ft-lbs

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.044"

Fuel

  • Capacity: 16 gal (60.5L)

Oil

  • Capacity: 4.5qt (4.3 L)

Coolant

  • Capacity: 1.96 gal (7.4 L)

Brake Fluid

  • Type: Acura Heavy Duty Brake Fluid DOT 3

Automatic Transmission Fluid

  • Type: Acura Automatic Transmission Fluid ATF DW-1
  • Capacity:  3.3qt (3.1L)

Rear Differential Fluid

  • Type: Acura DPSF-II
  • Capacity: 1.32qt (1.25 L)

Transfer Assembly Fluid

  • Type: Acura Hypoid Gear Oil HGO-1·Hypoid gear oil SAE 75W-85 or SAE 90 (API grade GL4 or GL5)
  • Capacity: 0.43 qt (0.41 L)

Washer Fluid

  • Capacity:
    • U.S.: 2.6 qt (2.5 L)
    • Canada: 5.1 qt (4.85 L)

Refrigerant

  • Type: HFC-134a (R-134a)
  • Capacity: 15.2 – 16.9 oz (430 – 480 g)

Powertrain


Engine

  • 3.0 L J30Y1 V6 (China Only)
  • 3.5 L J35Z2 V6

Transmission

  • 6-speed automatic

Fuel Consumption

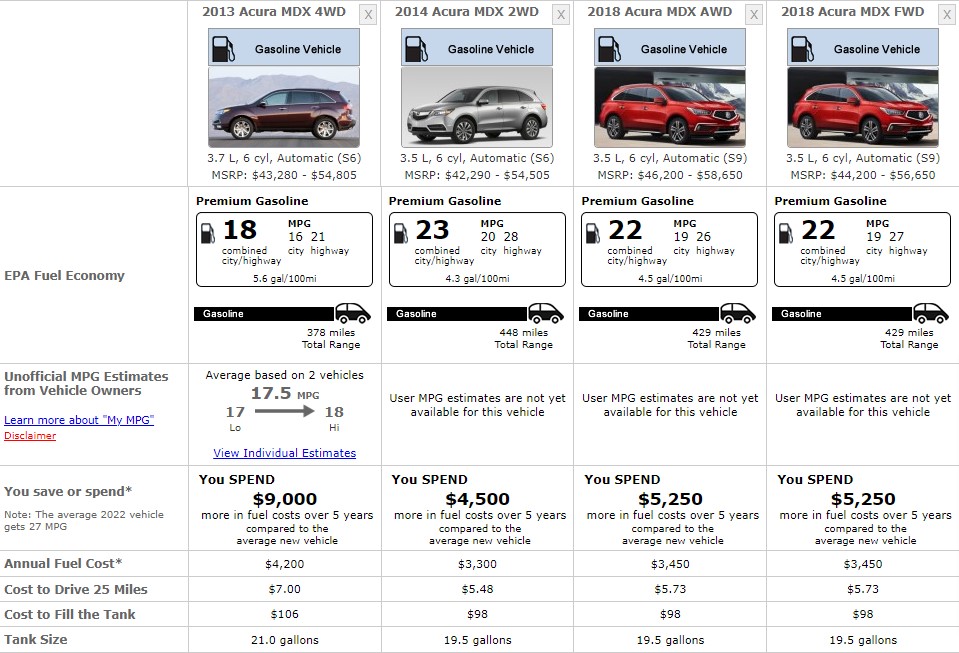

ACURA FUEL COMPARISON 2013 TO 2018

Safety Ratings

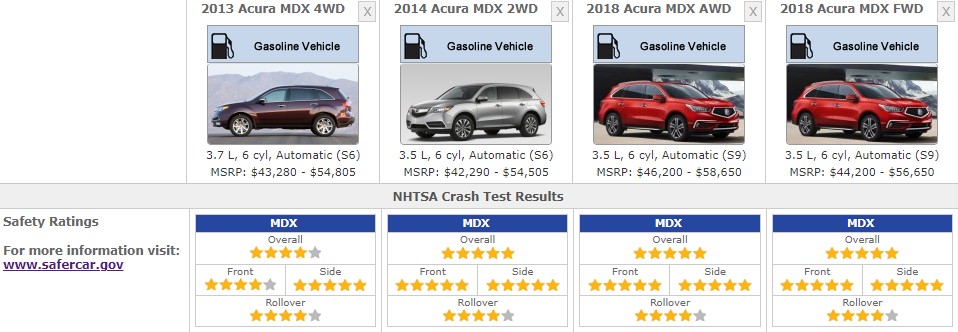

acura safety ratings 20132018

References


  1. 2013 ACURA RDX Owners Manual

  2. ACURA RDX - Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA| National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Daytime Running Light Bulb: LED

  • Front Fog Light Bulb: H11-55W

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb: LED

  • High Beam Headlight Bulb: LED

  • Low Beam Headlight Bulb: LED

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb: LED

  • Rear Sidemarker Light Bulb: LED

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb: LED

Interior Lights

  • Dome Light Bulb: DE3175

  • Glove Box Light Bulb: 74

  • Interior Door Light Bulb: 194

  • Luggage Compartment Light Bulb: 168

  • Map Light Bulb: LED

  • Vanity Mirror Light Bulb: 6615F
