Engine 3.2L 6-Cylinder SOHC

  • Recommended Oil Viscosity: 5W-30

  • Oil certification: API

  • Drain plug torque: 29 ft-lbs

  • Oil capacity: 5.0 quarts

Spark Plug Gap

  • 3.2L 6-Cylinder : 0.044''

Fuel

  • Capacity: 17.17 gal (65.0 L, 14.30 Imp gal)

Coolant

  • Capacity: 1.98 gal (7.5 L, 1.65 Imp gal)

Automatic Transmission Fluid

  • Type: Honda ATF-Z1 (Automatic Transmission Fluid) preferred, or a DEXRON III ATF as a temporary replacement

  • Capacity: 7.6 US qt (7.2L, 6.3 Imp qt)

Washer Fluid

  • Capacity: 4.8 US qt (4.5L, 4.0 Imp qt)

Refrigerant

  • Type: HFC-134a (R-134a)

  • Capacity: 25 27 oz (700 750 g)

Powertrain


Engine

  • 2.5 L J25A

  • 3.2 L J32A, J32A1 (225 hp) V6

  • 3.2 L J32A2 (260 hp) V6 (Type-S Models)

Transmission

  • 4-speed automatic

  • 5-speed automatic (2000 and later)

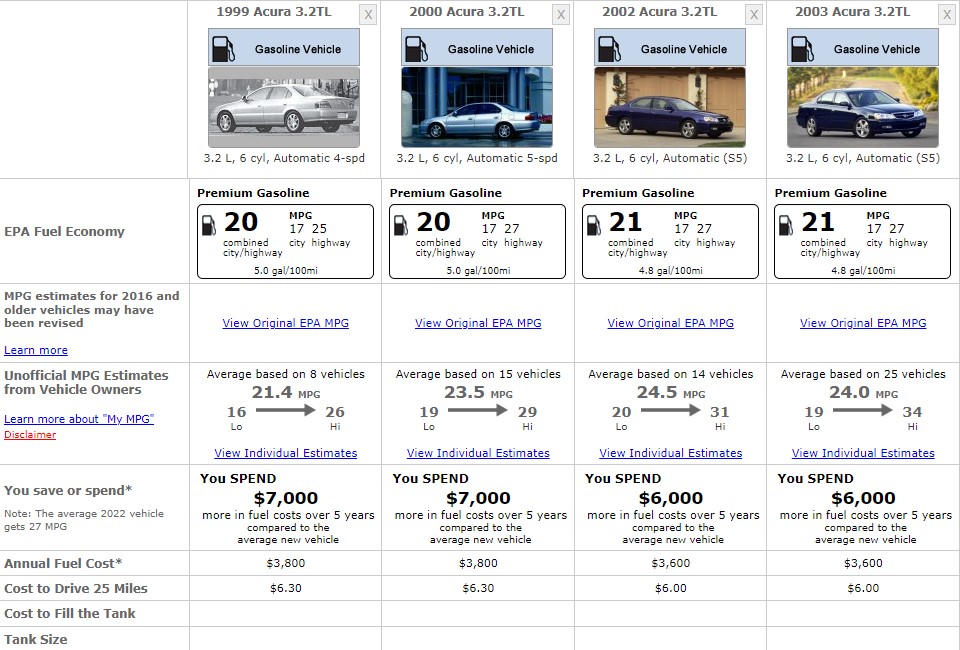

Fuel Consumption


acura fuel comparison

References


  1. 2003 ACURA TL Owners Manual

  2. ACURA TL- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Daytime Running Light Bulb: 9005

  • Front Fog Light Bulb: 9006

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb: 1157NA

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb: HID-D2R

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 7443-SCK

    • 7443

  • Center High Mount Stop Light Bulb: 7440

  • License Plate Light Bulb: 168

  • Parking Light Bulb: 1157NA

  • Rear Sidemarker Light Bulb:

    • 7443-SCK

    • 7443

  • Rear Turn Signal Light Bulb: 12496

  • Tail Light Bulb

    • :7443-SCK

    • 7443

Interior Lights

  • Auto Trans Indicator Light Bulb: 74

  • Dome Light Bulb: DE3425

  • Floor Console Compartment Light Bulb: 194

  • Glove Box Light Bulb: 194

  • Instrument Panel Light Bulb: 74

  • Interior Door Light Bulb: 194

  • Map Light Bulb: 204

  • Trunk Light Bulb: 168

  • Vanity Mirror Light Bulb: 6612F
