Engine 3.6L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Drain plug torque: 18 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 3.6L 6-Cylinder: 0.044''

Engine Coolant

  • Type: 50/50 mixture of clean, drinkable water and use only DEX-COOL® Coolant

Hydraulic Brake System

  • Type: DOT 3 Hydraulic Brake Fluid (GM Part No. U.S. 88863461, in Canada 88863462).

Windshield Washer

  • Type: Optikleen® Washer Solvent

Hydraulic Power Steering System

  • Type: DEXRON®-VI Automatic Transmission Fluid.

Automatic Transmission (3.0L V6 Engine)

  • Type: DEXRON®-VI Automatic Transmission Fluid.

  • Capacity: 9.5 qt (9.0 L)

Automatic Transmission (2.8L V6 Engine)

  • Type: AW‐1 Automatic Transmission Fluid (GM Part No. U.S. 19256039, in Canada 19256040).

  • Capacity: 2.8L V6 6–Speed Automatic (Transmission Requires No Fluid Replacement)

Chassis Lubrication

  • Type: Chassis Lubricant (GM Part No. U.S. 12377985, in Canada 88901242) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.

Key Lock Cylinders

  • Type: Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241in Canada 10953474).

Hood Latch Assembly, Secondary  Latch, Pivots, Spring Anchor, and Release Pawl

  • Type: Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293, in Canada 992723) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.

Hood, Door, and Folding Seat Hinges

  • Type: Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241, in Canada 10953474).

Power Liftgate Actuator Ball Joint

Weatherstrip Conditioning

  • Type:  Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518) or Dielectric Silicone Grease (GM Part No. U.S. 12345579, in Canada 992887).

Fuel Tank

  • Type: 21.0 gal (79.5 L)

Powertrain


Engine

  • 3.6 L LY7 HFV6 V6

  • 4.6 L LH2 Northstar V8

Transmission

Fuel Consumption


Cadillac SRX Fuel Consumption

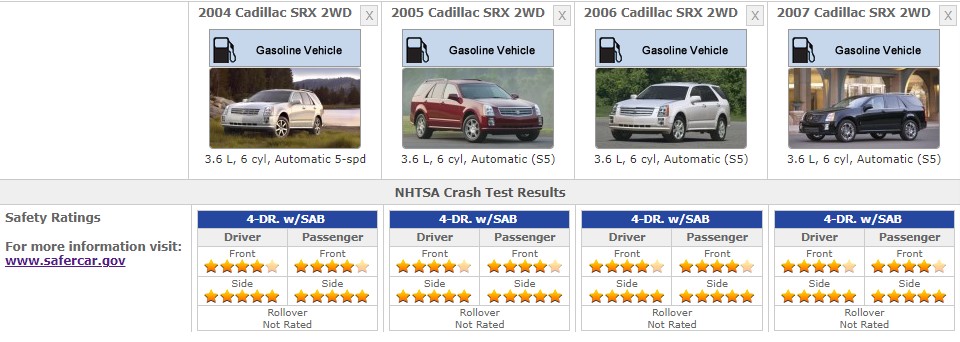

Safety Ratings

CADILLAC SRX SAFETY RATINGS

References


  1. 2004 Cadillac SRX Owners Manual

  2. Cadillac SRX-Series - Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Cornering Light Bulb:

    • 3157-SCK

    • 3057

  • Front Fog Light Bulb: 880

  • Front Sidemarker Light Bulb: 194

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 4157NAK

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • 9006

    •  HID-D1S

  • Stepwell Light Bulb: 562

Rear Lights

  • Back Up Light Bulb:

    • 3157-SCK

    • 3157K

  • Brake Light Bulb:

    • 3157-SCK

    • 3057K

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 194

  • Parking Light Bulb:

    • 3157-SCK

    • 4157NAK

  • Rear Turn Signal Light Bulb:

    • 3157-SC

    • 3057K

  • Tail Light Bulb:

    • 3157-SCK

    • 3057

Interior Lights

  • Back Up Light Bulb:

    • 3157-SCK

    • 3157K

  • Brake Light Bulb:

    • 3157-SCK

    • 3057K

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 194

  • Parking Light Bulb:

    • 3157-SCK

    • 4157NAK

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    •  3057K

  • Tail Light Bulb:

    • 3157-SCK

    • 3057K
