2010-2016 (2nd gen)

Engine 2.8L 6-Cylinder DOHC

• Recommended oil viscosity: 5W-30

• Oil certification: API

• Drain plug torque: 18 ft-lbs

• Oil capacity: 6.0 quarts

Spark Plug Gap

• 2.8L 6-Cylinder:0.040''

Engine 3.0L 6-Cylinder DOHC

• Recommended oil viscosity: 5W-30

• Oil certification: API

• Drain plug torque: 18 ft-lbs

• Oil capacity: 6.1 quarts

Spark Plug Gap

• 3.0L 6-Cylinder: 0.044''

Coolant

• Type: 50/50 mixture of clean, drinkable water and use only DEX-COOL® Coolant.

Fuel

• Capacity: 21.0 gal (79.5 L)

Hydraulic Brake System

• Type: DOT 3 Hydraulic Brake Fluid (GM Part No. U.S. 88863461, in Canada 88863462).

Windshield Washer

• Type: Optikleen® Washer Solvent.

Hydraulic Power Steering System

• Type: DEXRON®-VI Automatic Transmission Fluid

Automatic Transmission (3.0L V6 Engine)

• Type: DEXRON®-VI Automatic Transmission Fluid.

• Capacity: 9.5qt (9.0L)

Automatic Transmission (2.8L V6 Engine)

• Type: Automatic Transmission Fluid (GM Part No. U.S. 19256039, in Canada 19256040)

Chassis Lubrication

• Type: Chassis Lubricant (GM Part No. U.S. 12377985, in Canada 88901242) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.

Key Lock Cylinders

• Type: Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241, in Canada 10953474)

Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl

• Type: Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293, in Canada 992723) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.

Hood, Door, and Folding Seat Hinges

• Type: Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241, in Canada 1095347)

Power Liftgate Actuator Ball Joint

• Type: Multi-Purpose Lubricant (GM Part No. U.S. 89021668, in Canada 89021674)

Weatherstrip Conditioning

•  Type: Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518)  or Dielectric Silicone Grease (GM Part No. U.S. 12345579, in Canada 992887)

Powertrain

---

Engine

• 3.6 L LY7 HFV6 V6

• 4.6 L LH2 Northstar V8

Transmission

• 5-speed 5L40-E automatic

• 5-speed 5L50 automatic

• 6-speed 6L50 automatic

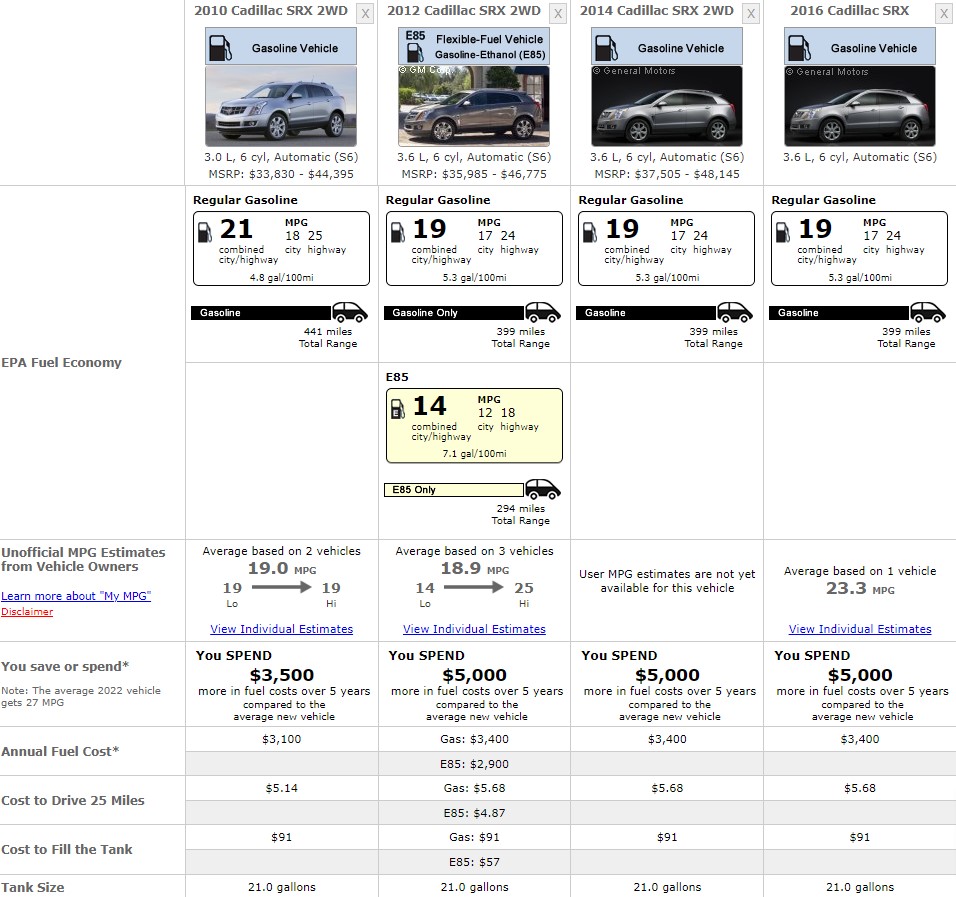

Fuel Consumption

---

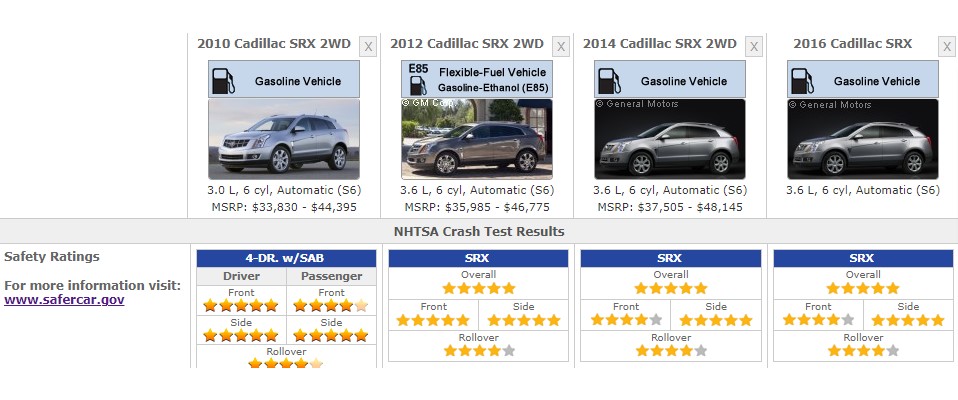

Safety Ratings

---

References

---

1. 2010 Cadillac SRX Owners Manual

2. Cadillac SRX - Wikipedia.org

3. US Department of Energy - FuelEconomy.gov

4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov
