Engine 1.4L 4-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Oil certification: DEXOS-1

  • Drain plug torque: 10 ft-lbs

  • Oil capacity: 4.2 quarts

Spark Plug Gap

  • 1.4L 4-Cylinder: 0.027''

Engine 1.8L 4-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Oil certification: DEXOS-1

  • Drain plug torque: 10 ft-lbs

  • Oil capacity: 4.2 quarts

Spark Plug Gap

  • 1.8L 4-Cylinder: 0.027''

Engine 2.0L 4-Cylinder DSL

  • Recommended Oil viscosity: 5W-30

  • Oil certification: DEXOS-1

  • Drain plug torque: 10 ft-lbs

  • Oil capacity: 4.2 quarts

Fuel

  • Capacity:

    • Standard Fuel Tank: 59.0 L (15.6 gal)

    • With RPO NL6 Fuel Tank: 48.0 L (12.6 gal)

Cooling

  • Capacity:

    • 1.4L L4 Engine: 5.8 qt(5.5 L)

    • 1.8L L4 Engine  6.9 qt(6.5 L)

    • 2.0L L4 Diesel Engine 8.8 qt (8.3 L)

Hydraulic Brake/Clutch System

Diesel Exhaust Aftertreatment System

  • Type:  Diesel Exhaust Fluid (GM Part No. 19286291, in Canada 88862660) or diesel exhaust fluid that meets ISO 22241-1 or displays the API Diesel Exhaust Fluid Certification Mark.

Automatic Transmission (Except 2.0L Diesel)

  • Type: DEXRON®-VI Automatic Transmission Fluid.

Automatic Transmission (2.0L Diesel)

  • Type; AW-1 Automatic Transmission Fluid (GM Part No. 19256039, in Canada 19256040).

Manual Transmission

Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl

  • Type: Lubriplate Lubricant Aerosol (GM Part No. 89021668, in Canada 89021674) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.

Key Lock Cylinders, Hood and Door Hinges

  • Type: Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in Canada 10953474)

Windshield Washer

  • Type: Automotive windshield washer fluid that meets regional freeze protection requirements.

Weatherstrip Conditioning

Powertrain


Engine

  • 1.4 L LUJ I4 (t/c gasoline)

  • 1.4 L LUV I4 (t/c gasoline)

  • 1.6 L LDE I4 (gasoline)

  • 1.6 L Ecotec I4 (t/c gasoline)

  • 1.8 L LUW I4 (gasoline)

  • 1.8 L LWE I4 (gasoline)

  • 1.8 L 2H0 I4 (gasoline)

  • 1.7 L VCDi (GM) diesel I4

  • 1.6 L MDE I4 (t/c diesel)

  • 2.0 L LUZ (GM/Fiat) I4 (t/c diesel)

  • 2.0 L VCDi (VM Motori) I4 (t/c diesel)

  • 2.0 L VCDi (GM) I4 (t/c diesel)

Transmission

  • 5-speed manual

  • 6-speed M32 manual

  • 6-speed F40 manual

  • 6-speed GM 6T30 automatic

  • 6-speed GM 6T40 automatic

  • 6-speed Aisin-Warner AF40-6 automatic

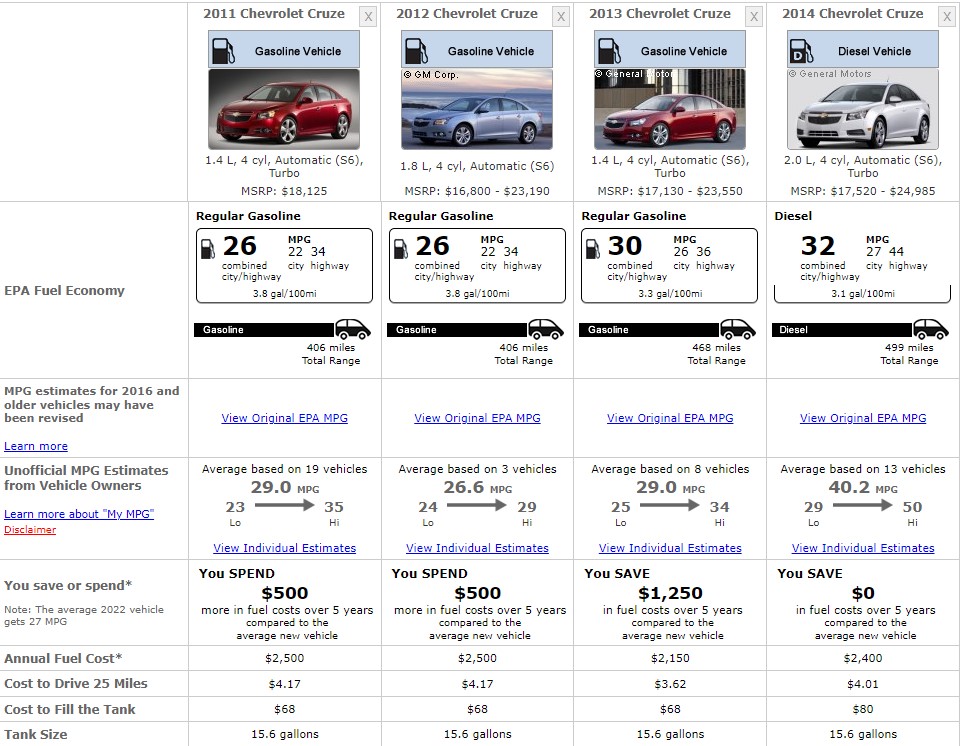

Fuel Consumption

CHEVROLET CRUZE

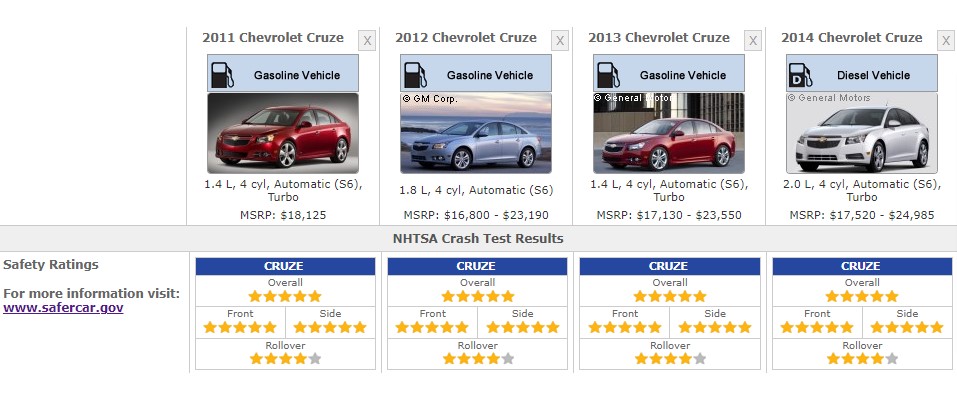

Safety Ratings


CHEVROLET CRUZE SAFETY RATINGS

References


  1. 2015 CHEVROLET CRUZE Owners Manual

  2. CHEVROLET CRUZE - Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Daytime Running Light Bulb: H13

  • Front Fog Light Bulb: H8LL

  • Front Sidemarker Light Bulb: 194

  • Front Turn Signal Light Bulb:

    • 7443-SCK

    •  7444NA

  • High Beam and Low Beam Headlight Bulb: H13

Rear Lights

  • Back Up Light Bulb: 921K

  • Brake Light Bulb:

    • 3157-SCK

    •  3057KLCP

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 2825L

  • Parking Light Bulb:

    • 7443-SCK

    •  7444NA

  • Rear Sidemarker Light Bulb: 194

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb:

    • 3157-SCK

    •  3057KLCP

Interior Lights

  • Dome Light Bulb: 2825L

  • Glove Box Light Bulb: 175

  • Map Light Bulb: 2825L

  • Trunk Light Bulb: 175

  • Vanity Mirror Light Bulb: 7065
