Engine 3.6L 6-Cylinder DOHC

  • Recommended Oil Viscosity: 5W-30

  • Oil certification: DEXOS-1

  • Drain plug torque: 18 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 3.6L 6-Cylinder: 0.044''

Automatic Transmission

  • Capacity: 5.3 qt (5.0 L)

Cooling System Including Reservoir

  • Capacity: 9.1 qt (8.7 L)

Fuel Tank (RPO FHO)

  • Capacity: 17.3 gal (65.5 L)

Fuel Tank (RPO FHS)

  • Capacity: 17.5 gal (66.3 L)

Engine Coolant

  • Type: 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.

Hydraulic Brake System

  • Type: DOT 3 Hydraulic Brake Fluid (GM Part No. 88862806, in Canada 88862807).

Windshield Washer

  • Type: Automotive windshield washer fluid that meets regional freeze protection requirements.

Power Steering System

  • Type: GM Power Steering Fluid (GM Part No. 89021184, in Canada 89021186)

Automatic Transmission

  • Type: DEXRON®-VI Automatic Transmission Fluid

Key Lock Cylinders

  • Type: Multi-Purpose Lubricant, Superlube (GM Part No.12346241, in Canada 10953474)

Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl

  • Type: Lubriplate Lubricant Aerosol (GM Part No. 89021668, in Canada 89021674) or lubricant meeting requirements of NLGI #2, Category LB or GC-LB.

Hood and Door Hinges

  • Type: Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in Canada 10953474).

Weatherstrip Conditioning

  • Type: Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or Dielectric Silicone Grease (GM Part No. 12345579, in Canada 10953481)

Powertrain


Engine

  • 3.5 L LZ4 V6 (gasoline)

  • 3.5 L LZE V6 (gasoline/E 85)

  • 3.6 L LFX V6 (gasoline/E85)

  • 3.9 L LZ9 V6 (gasoline)

  • 3.9 L LGD V6 (gasoline/E85)

  • 3.9 L LZ8 V6 (gasoline)

  • 3.9 L LZG V6 (gasoline/E85)

  • 5.3 L LS4 V8 (gasoline)

Transmission

  • 4-speed 4T65E automatic

  • 4-speed 4T65E-HD automatic

  • 6-speed 6T70 automatic

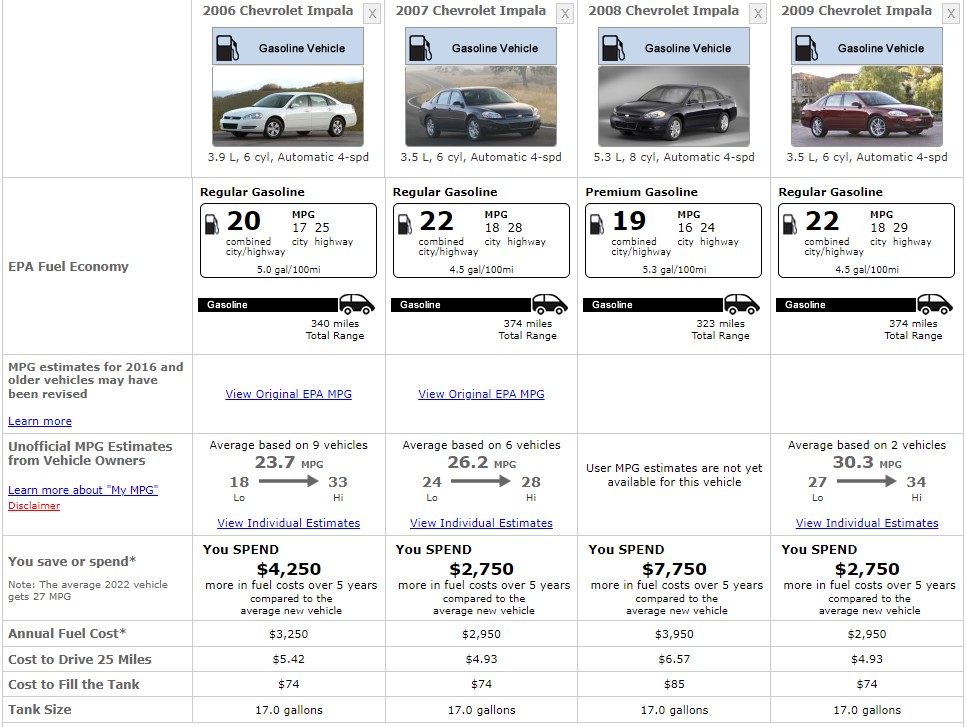

Fuel Consumption


CHEVROLET IMPALA FUEL CONSUMPTION

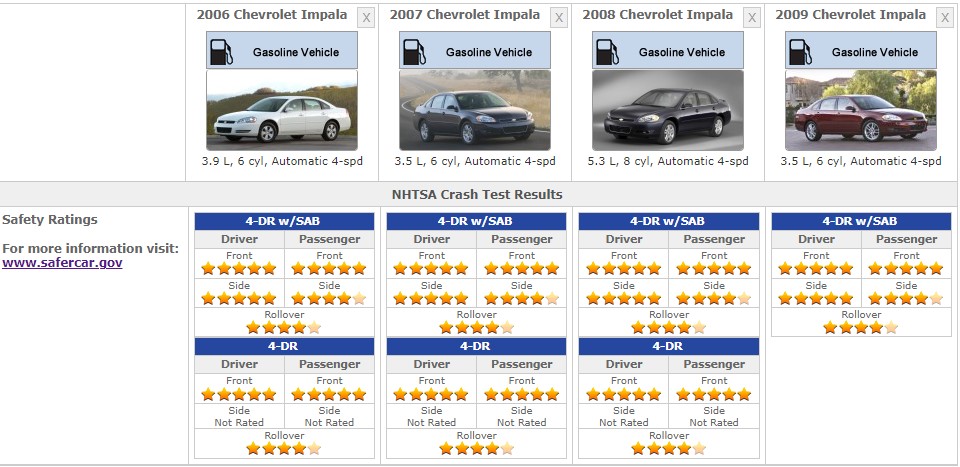

Safety Ratings


chevrolet impala safety ratings

References


  1. 2013 Chevrolet Impala Owners Manual

  2. Chevrolet Impala - Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Front Fog Light Bulb: H11LL

  • Front Sidemarker Light Bulb: 194

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    •  4157NAK

  • High Beam Headlight Bulb: H9-65W

  • Low Beam Headlight Bulb: H11LL

  • Stepwell Light Bulb: 194

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 3157-SCK

    • 3057K

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 194

  • Parking Light Bulb:

    • 3157-SCK

    •  4157NAK

  • Rear Sidemarker Light Bulb: 194

  • Rear Turn Signal Light Bulb:

    • 3157-SCK,

    • 3057K

  • Tail Light Bulb

    • 3157-SCK

    • 3057K

Interior Lights

  • Ash Tray Light Bulb: 194

  • Dome Light Bulb: 578

  • Glove Box Light Bulb: 194

  • Map Light Bulb: 578

  • Trunk Light Bulb: 912

  • Vanity Mirror Light Bulb: 37
