Engine 2.7L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 2.7L 6-Cylinder:0.050''

Engine 3.5L 6-Cylinder SOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.052''

Engine 5.7L 8-Cylinder

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 5.7L 8-Cylinder : 0.040''

Engine 6.1L 8-Cylinder

  • Recommended oil viscosity: 5W-40

  • Oil certification: API

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 6.1L 8-Cylinder : 0.052''

Fuel

  • 2.7 Liter Engine: 18 Gallons (68 Liters)

  • 3.5 Liter Engine without All-Wheel Drive:18 Gallons (68 Liters)

  • 3.5 Liter Engine with All Wheel Drive:19 Gallons (72 Liters)

Coolant

  • Capacity:
    • 2.7 Liter Engine:9.9 Quarts (9.4 Liters)

    • 5.7 Liter Engine:19 Gallons (72 Liters)

    • 3.5 Liter Engine without All-Wheel Drive : 11.1 Quarts (10.5 Liters)

    • 3.5 Liter Engine with All Wheel Drive: 11.4 Quarts (10.8 Liters)

    • 5.7 Liter Engine without Severe Duty II Cooling System:14.7 Quarts (13.9 Liters)

    • 5.7 Liter Engine with Severe Duty II Cooling System:15.1 Quarts (14.3 Liters)

Automatic Transmission

  • Type: MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product.

Brake Master Cylinder

  • Type: MOPAR DOT 3 and SAE J1703 should be used or equivalent. If DOT 3 brake fluid is not available, then DOT 4 is acceptable. Use only recommended brake fluids.

Power Steering Reservoir

  • Type: MOPAR Power Steering Fluid + 4, MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product.

Front Axle

  • Type: API GL-5 SAE 75W90 Synthetic Gear Lubricant or equivalent.

Rear Axle

  • Type: API GL-5 SAE 75W140 Synthetic Gear Lubricant or equivalent.

Transfer Case

  • Type: MOPAR Transfer Case Lubricant for BorgWarner 44–40 or equivalent.

Powertrain


Engine

  • 2.7 L EER V6

  • 3.5 L EGG V6

  • 5.7 L EZB Hemi V8

  • 6.1 L ESF Hemi V8

  • 3.0 L OM642 turbodiesel V6

Transmission

  • 4-speed 42RLE automatic

  • 5-speed W5A580 automatic

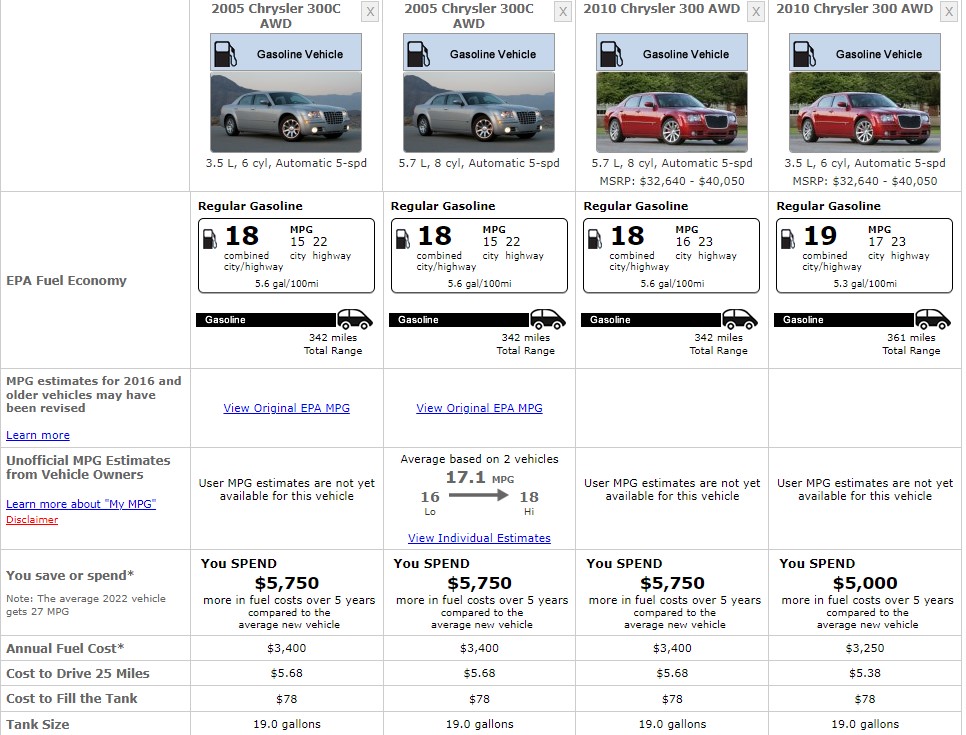

Fuel Consumption


CHRYSLER 300 FUEL CONSUMPTION 2010

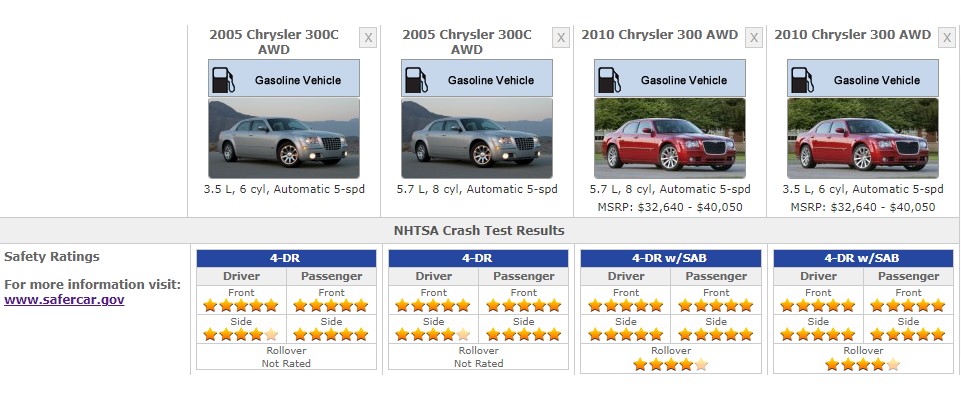

Safety Ratings


CHRYSLER SAFETY RATINGS

References


  1. 2010 Chrysler 300 Owners Manual

  2. Chrysler 300- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • LED Driving Lights & Fog Lights: FDC-MB2

  • Front Fog Light Bulb: 2504

  • Front Sidemarker Light Bulb: 2825

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    •  3157

    • 3157AK

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb

    •  9006

    •  9006XS

    • HID-D1S

Rear Lights

  • Back Up Light Bulb:

    • 3157-SCK

    • 3057

  • Brake Light Bulb:

    • 3157-SCK

    • 3057

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 2825

  • Parking Light Bulb:

    • 3157-SCK

    •  194NA

    •  3157AK

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    •  3057

    •  3757AK

  • Tail Light Bulb:

    • 3157-SCK

    • 305

Interior Lights

  • Dome Light Bulb: 578

  • Glove Box Light Bulb: 194

  • Interior Door Light Bulb: 562

  • Map Light Bulb: 578

  • Rear Reading Light Bulb: 2825

  • Trunk Light Bulb: 562
