Engine 3.6L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 5.0 quarts

Spark Plug Gap

  • 3.6L 6-Cylinder: 0.044''

Engine 5.7L 8-Cylinder

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 5.7L 8-Cylinder: 0.044''

Engine 6.2L 8-Cylinder

  • Recommended oil viscosity: 0W-40

  • Oil certification: API

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 6.2L 8-Cylinder : 0.0332

Fuel

  • Capacity

  • 3.6L Engine (87 Octane, 0-15% Ethanol.) :18.5 Gallons (70 Liters)

  • 5.7L Engine (Automatic Transmission: 87 Octane or 89 Octane, 0-15% Ethanol. Manual Transmission: 91 Octane or higher, 0-15% Ethanol.):18.5 Gallons (70L)

  • 6.4L Engine (91 Octane or higher, 0-15% Ethanol.):18.5 Gallons (70 L)

Coolant

  • Type: Mopar Antifreeze/Coolant 10 Year/150,000 (240,000 km)Mile Formula OAT (Organic Additive Technology

  • Capacity

  • 3.6L Engine (Mopar Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula or equivalent) :11.1 Quarts (10.5 Liters)

  • 5.7L Engine (Mopar Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula or equivalent) :14.7 Quarts (13.9 Liters)

  • 6.4L Engine (Mopar Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula or equivalent)  :15.2 Quarts (14.4 Liters)

8-Speed Automatic Transmission

  • Type: Mopar ZF 8&9 Speed ATF Automatic Transmission Fluid, or equivalent.

Manual Transmission – If Equipped

  • Type: Mopar ATF+4 Automatic Transmission Fluid.

Brake Master Cylinder

  • Type: Mopar DOT 3, SAE J1703. If DOT 3 brake fluid is not available, then DOT 4 is acceptable

Front Axle

  • Type: Mopar Synthetic Gear Lubricant SAE 75W90 (API GL-5).

Rear Axle – 3.6L/5.7L Engine With Automatic Transmission

  • Type: Mopar OD Synthetic Gear Lubricant SAE 75W85 (API GL-5).

Rear Axle – 6.4 Engine or 5.7 With Manual Transmission

  • Type: Mopar LSD Synthetic Gear Lubricant SAE 75W85 (API GL-5)

Transfer Case – AWD (If Equipped)

  • Type: Mopar Transfer Case Lubricant for BorgWarner 44–40

Powertrain


Engine

  • 3.5 L (215 cu in) SOHC V6 (2009–2010)

  • 3.6 L (220 cu in) Pentastar DOHC V6 (2011–present)

  • 5.7 L (345 cu in) HEMI OHV V8 (2009–present)

  • 6.1 L (370 cu in) HEMI OHV V8 (2008–2010)

  • 6.2 L (376 cu in) Hellcat OHV supercharged V8 (2015–present)

  • 6.2 L (376 cu in) Demon Hemi OHV supercharged V8 (2018)

  • 6.4 L (392 cu in) HEMI OHV V8 (2011–present)

Transmission

  • 4-speed automatic 42RLE (2009)

  • 5-speed automatic W5A580 (2008–2014)

  • 8-speed automatic 845RE, 8HP70, 8HP90 (2014–present)

  • 6-speed manual Tremec TR6060 (2008–present)

Fuel Consumption

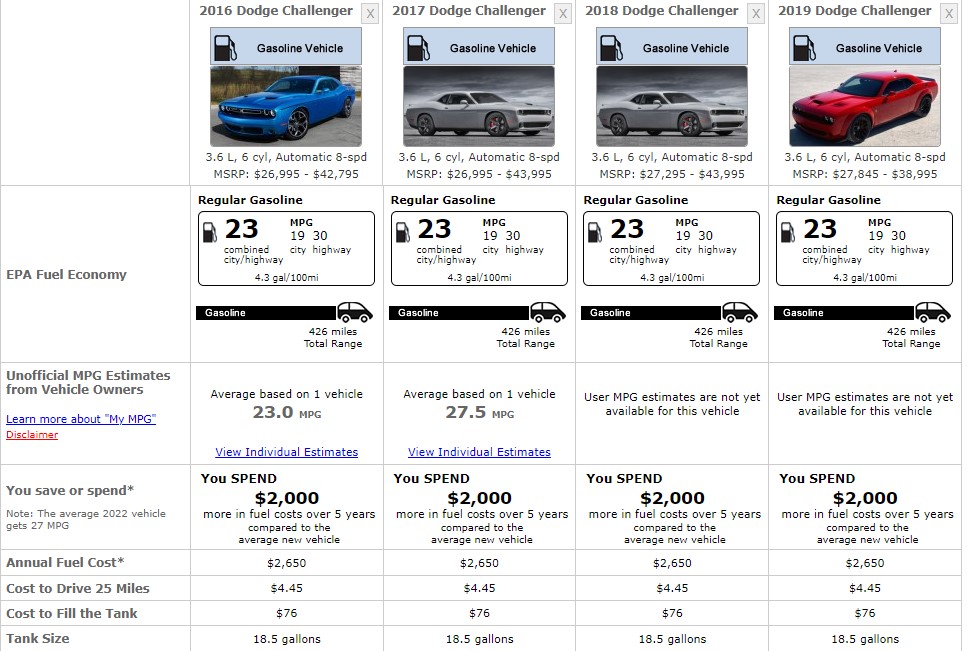

DODGE CHALLENGER 2019 FUEL CONSUMPTION

Safety Ratings

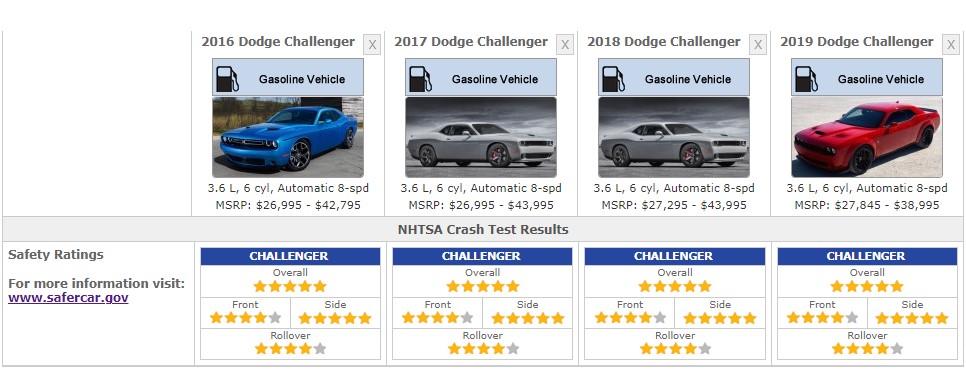

DODGE CHALLENGER 2019 SAFETY RATINGS

References


  1. 2019 Dodge Challenger Owners Manual

  2. Dodge Caravan- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov+

Lights

Front Lights

  • Front Fog Light Bulb: H11-55W

  • Front Sidemarker Light Bulb: LED

  • Front Turn Signal Light Bulb: LED

  • High Beam and Low Beam Headlight Bulb:

    • 9012

    • HID-D3S

Rear Lights

  • Back Up Light Bulb: LED

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: LED

  • Parking Light Bulb: LED

  • Rear Sidemarker Light Bulb: LED

  • Rear Turn Signal Light Bulb: LED

  • Tail Light Bulb: LED

Interior Lights

  • Dome Light Bulb: 578

  • Glove Box Light Bulb: 194

  • Interior Door Light Bulb: 567

  • Map Light Bulb: 578

  • Rear Reading Light Bulb: 2825

  • Trunk Light Bulb: 567
