Engine 3.6L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 3.6L 6-Cylinder : 0.044''

Engine 5.7L 8-Cylinder

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 25 ft-lbs

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 5.7L 8-Cylinder : 0.044''

Engine 6.4L 8-Cylinder

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 25 ft-lbs

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 6.4L 8-Cylinder : 0.044''

Fuel

  • Capacity: 19 Gallons (72 Liters)

Coolant

  • Capacity
  • 3.6L Engine: 10 Quarts (9.5 Liters)

  • 5.7L Engine: 14.5 Quarts (13.9 Liters)

  • 5.7l Engine:  15 Quarts (14.3 Liters)



Automatic Transmission – 8-Speed Transmission

  • Type: MOPAR® ZF 8&9 Speed ATF™ Automatic Transmission Fluid, or equivalent. Failure to use the correct fluid may affect the function or performance of your transmission.

Automatic Transmission – 5-Speed Transmission

  • Type; ATF+4® Automatic Transmission Fluid. Failure to use ATF+4® fluid may affect the function or performance of your transmission. We recommend MOPAR® ATF+4® fluid.

Brake Master Cylinder

  • Type:  MOPAR® DOT 3 and SAE J1703. If DOT 3 brake fluid is not available, then DOT 4 is acceptable.

Power Steering Reservoir

  • Type: We recommend you use MOPAR® Hydraulic Fluid or equivalent meeting MS-11655, such as Fuchs EG ZH 3044 or Pentosin CHF 11s.

Front Axle

  • API GL-5 SAE 75W90 Synthetic Gear Lubricant.

Rear Axle

  • Type: API GL-5 SAE 75W140 Synthetic Gear Lubricant.

Transfer Case

  • Type: MOPAR® Transfer Case Lubricant for BorgWarner 44–40

Powertrain


Engine

  •  3.6 L (220 cu in) Pentastar V6

  • 5.7 L (345 cu in) Eagle EZD HEMI V8

  • 6.2 L (376 cu in) Hellcat supercharged V8

  • 6.4 L (391 cu in) ESG HEMI V8

Transmission

  • 5-speed W5A580 automatic (2011–14 V6 and V8) (2011-20 Charger Pursuit)

  • 8-speed 845RE automatic (Optional, 2012–2014 V6s. Standard on V6s as of 2015 except Pursuit)[19]

  • 8-speed 850RE automatic (2021-present Charger Pursuit V6)

  • 8-speed 8HP70 automatic (2015-present, non-Hellcat V8s) (2021-present Charger Pursuit V8)

  • 8-speed 8HP90 automatic (2015-present, Hellcat only)

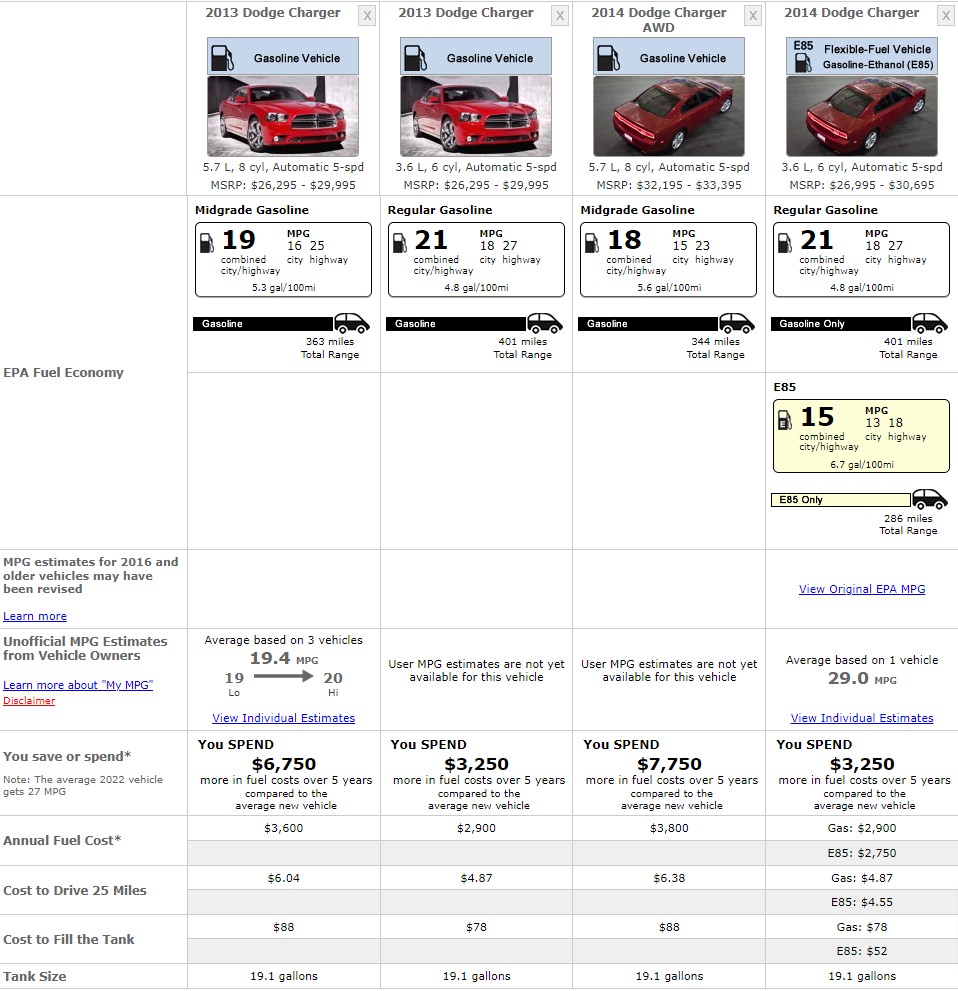

Fuel Consumption


DODGE FUEL CONSUMPTION

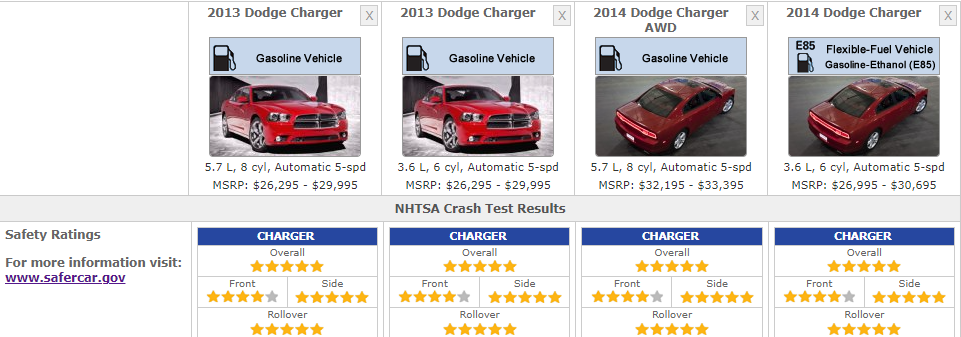

Safety Ratings


DODGE CHARGER SAFERTY RATINGS 2014

References


  1. 2014 Dodge Charger Owners Manual

  2. Dodge Charger- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Front Fog Light Bulb: 2504

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3157AK

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • H11-55W

    • HID-D3S

Rear Lights

  • Back Up Light Bulb:

    • 3157-SCK

    •  3157K

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb:

    • 3157-SCK

    • 3157AK

  • Rear Sidemarker Light Bulb 168

  • Rear Turn Signal Light Bulb\: LED

  • Tail Light Bulb: LED

Interior Lights

  • Dome Light Bulb: 578

  • Glove Box Light Bulb: 194

  • Interior Door Light Bulb: 562

  • Map Light Bulb: 578

  • Rear Reading Light Bulb: 2825

  • Trunk Light Bulb: 56
