Engine 2.7L 6-Cylinder DOHC

  • Recommended Oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 20 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 2.7L 6-Cylinder: 0.050''

Engine 3.5L 6-Cylinder DOHC

  • Recommended Oil viscosity: 10W-30

  • Oil certification: API

  • Drain Plug Torque: 20 ft-lbs

  • Oil capacity: 6.0 quartseSpark Plug Gap

  • 3.5L 6-Cylinder:0.052''

Engine 5.7L 8-Cylinder

  • Recommended Oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 20 ft-lbs

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 5.7L 8-Cylinder: 0.040''

Engine 6.1L 8-Cylinder

  • Recommended Oil viscosity: 0W-40

  • Oil certification: API

  • Drain Plug Torque: 20 ft-lbs

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 6.1L 8-Cylinder : 0.052''

Fuel

  • Capacity
    • 2.7 Liter Engine:18 gallons (68 liters)

    • 3.5 Liter Engine without All Wheel Drive 18 gallons (68 liters)

    • 3.5 Liter Engine with All Wheel Drive 19 gallons (72 liters)

    • 5.7 Liter Engine 19 gallons (72 liters)

Coolant

Capacity:

  • 2.7 Liter Engine:9.9 qts (9.4 liters)

  • 3.5 Liter Engine Engine without All-Wheel Drive: 11.1 qts (10.5 liters)

  • 5.7 Liter Engine with Severe Duty II Cooling System: 15.1 qts (14.3 liters)

  • 3.5 Liter Engine Engine with All Wheel Drive: 11.4 qts (10.8 liters)

  • 5.7 Liter Engine: 14.7 qts (13.9 liters)

Automatic Transmission

  • Type: Mopar ATF+4 Automatic Transmission Fluid.

Brake Master Cylinder

  • Type: Mopar DOT 3, SAE J1703, or equivalent should be used. If DOT 3 brake fluid is not available, then DOT 4 is acceptable. Use only recommended brake fluids.

Front Axle

  • Type: API GL-5 SAE 75W90 Synthetic Gear Lubricant or equivalent.

Power Steering Reservoir

  • Type: Mopar Power Steering Fluid + 4, Mopar ATF+4 Automatic Transmission Fluid.

Rear Axle

  • API GL-5 SAE 75W140 Synthetic Gear Lubricant or equivalent.

Transfer Case

  • Type: Mopart Transfer Case Lubricant LX, P/N 05170055AA, or equivalent

Powertrain


Engine

  • 2.7 L (167 cu in) EER V6

  • 3.5 L (215 cu in) EGJ V6

  • 5.7 L (345 cu in) EZB HEMI V8

  • 6.1 L (370 cu in) ESF HEMI V8

Transmission

  • 4-speed 42RLE automatic

  • 5-speed W5A580 automatic

Fuel Consumption

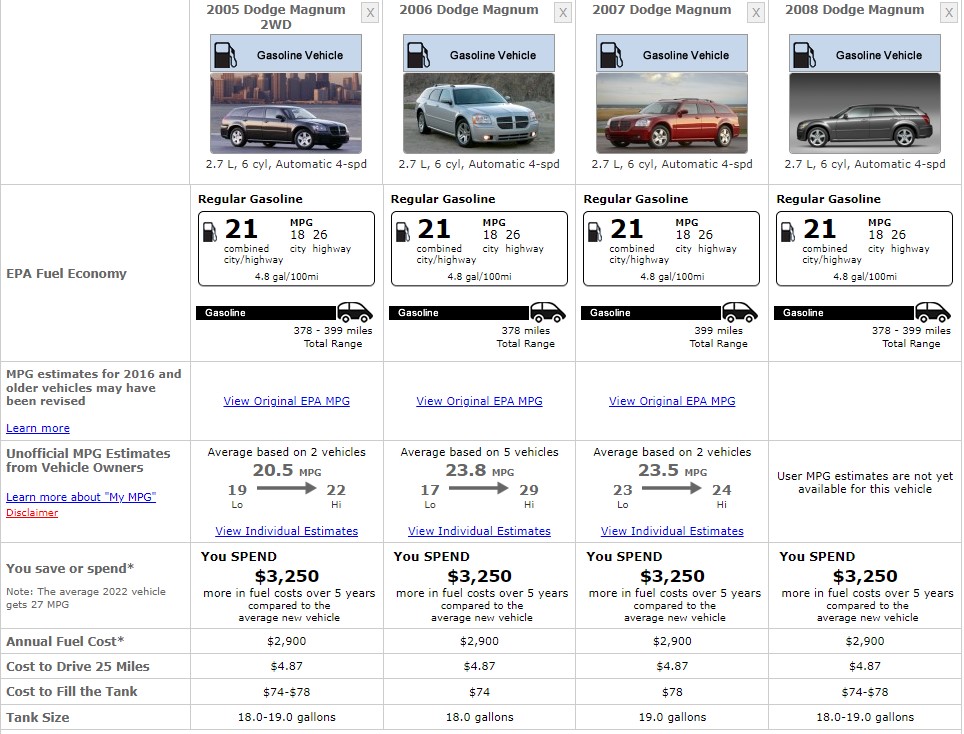

DODGE MAGNUM FUEL CONSUNMPTION

Safety Ratings

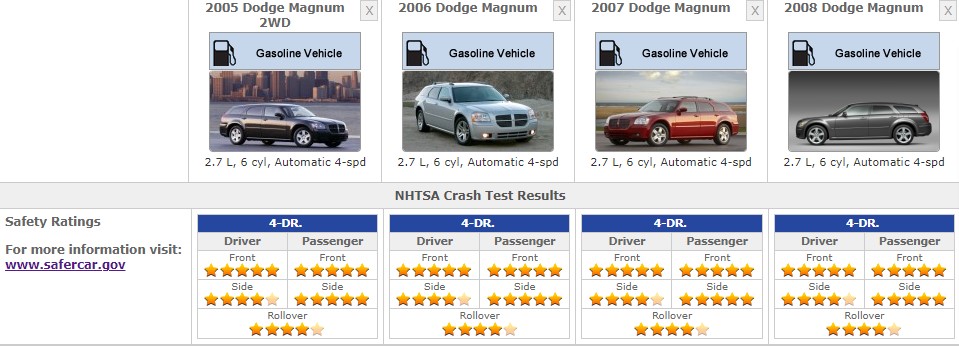

DODGE MAGNUM 2008 SAFETY RATINGS

References


  1. 2008 Dodge Magnum Owners Manual

  2. Dodge Magnum- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Daytime Running Light Bulb:

    • 9005HL+

    • , LED

  • Front Fog Light Bulb: H11-55W

  • Front Sidemarker Light Bulb: LED

  • Front Turn Signal Light Bulb: 3157AK

  • High Beam and Low Beam Headlight Bulb:

    • 9005HL+

    • HID-D3S

  • Stepwell Light Bulb: 906

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: LED

  • Parking Light Bulb:

    • 3157AK

    • LED

  • Rear Sidemarker Light Bulb: LED

  • Rear Turn Signal Light Bulb: LED

  • Tail Light Bulb: LED

Interior Lights

  • Courtesy Light Bulb: 2825

  • Glove Box Light Bulb: 194

  • Instrument Panel Light Bulb: 103

  • Luggage Compartment Light Bulb: 214-2
