Engine 3.5L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.032''

Engine coolant (Base radiator with auxiliary rear heat)

  • Type:

    • U.S. and Mexico : Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B/ WSS-M97B44-D2

    • Canada: WSS-M97B44-D2 Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B/ WSS-M97B44-D2

  • Capacity:  18.5 qt (17.5 L)

Engine coolant (Heavy Duty trailer towing  with auxiliary rear heat)

  • Type

    • U.S. and Mexico : Motorcraft® Orange Prediluted Antifreeze/Coolant VC-3DIL-B/ WSS-M97B44-D2

    • Canada: WSS-M97B44-D2 Motorcraft® Orange Prediluted Antifreeze/Coolant CVC-3DIL-B/ WSS-M97B44-D2

  • Capacity: 18.0 qt (17 L)

Brake Fluid

  • Type:

    • Motorcraft® DOT 4 LV High-Performance Motor Vehicle Brake Fluid/WSS-M6C65-A2

    • U.S. and Mexico: Motorcraft® DOT 3 Motor Vehicle Brake Fluid PM-1-C/WSS-M6C65-A1

    • Canada: High-Performance DOT 3 Motor Vehicle Brake Fluid CPM-1-C/ WSS-M6C65-A1

  • Capacity: Between MIN and MAX on brake fluid reservoir

Front axle

  • Type: Motorcraft® SAE 75W-85 Hypoid Gear Lube XY-75W85-QL/  WSS-M2C942-A

  • Capacity: 3.5 pt (1.7 L)

Rear axle (Conventional Differential)

  • Type : Motorcraft® SAE 75W-85 Hypoid Gear Lube XY-75W85-QL/ WSS-M2C942-A

  • Capacity: 4.5 pt (2.1 L)

Rear axle (Limited-slip differential)

  • Type : Motorcraft® SAE 75W-85 Hypoid Gear Lube XY-75W85-QL/ WSS-M2C942-A

  • Capacity: 4.25 pt (2.01 L)

Automatic transmission fluid

  • Type:

  • US and Mexico: Motorcraft® MERCON LV Automatic Transmission Fluid /XT-10-QLVC /WSS-M2C938-A MERCON LV

  • Canada : Motorcraft® MERCON LV Automatic Transmission Fluid : WSS-M2C938-A/ MERCON LV

  • Capacity: 13.1 qt (12.4 L)

Transfer case fluid

  • Capacity: 1.5 qt (1.4 L)

Windshield washer fluid

  • Type:

    • US AND MexicoMotorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2/WSB-M8B16-A2

    • Canada: Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F)/ WSB-M8B16-A2

  • Capacity: Fill as required

Fuel tank

  • Capacity: 28.0 gal (106 L)

Fuel tank (Expedition EL)

  • Capacity: 33.5 gal (126.8 L)

A/C refrigerant

  • Type:

    • US: Motorcraft® R-134a Refrigerant YN-19/ WSH-M17B19-A

    • Canada: Motorcraft® R-134a Refrigerant CYN-16-R/WSH-M17B19-A

    • Mexico: Motorcraft® R-134a Refrigerant MYN-19/ WSH-M17B19-A

  • Capacity: 44 oz (1.25 kg)

A/C refrigerant (Expedition EL)

  • Capacity: 40 oz (1.13 kg)

A/C refrigerant compressor oil

  • Type: Motorcraft® PAG Refrigerant Compressor Oil YN-12-D/WSH-M1C231-B

  • Capacity: 7.1 fl oz (210 ml)

Multi-purpose grease

  • Type: Motorcraft® Multi-Purpose Grease Spray XL-5-A ESB-M1C93-B

Lock cylinders

  • Type:
    • US: Penetrating and Lock Lubricant XL-1

    • CanadaPenetrating Fluid CXC-51-A

    • Mexico: Penetrating and Lock Lubricant MXL-1

Powertrain


Engine

  • 5.4 L Triton 24V V8 (2006–2014)

  • 3.5 L EcoBoost V6 (2014–2017)

Transmission

  • 6-speed 6R75 automatic

  • 6-speed 6R80 automatic

  • 6-speed 6R80 SelectShift automatic

  • Transfer case (4x4 models)

  • 2-speed BorgWarner 4417

  • High range ratio: 1.00:1

  • Low range ratio: 2.64:1

Fuel Consumption

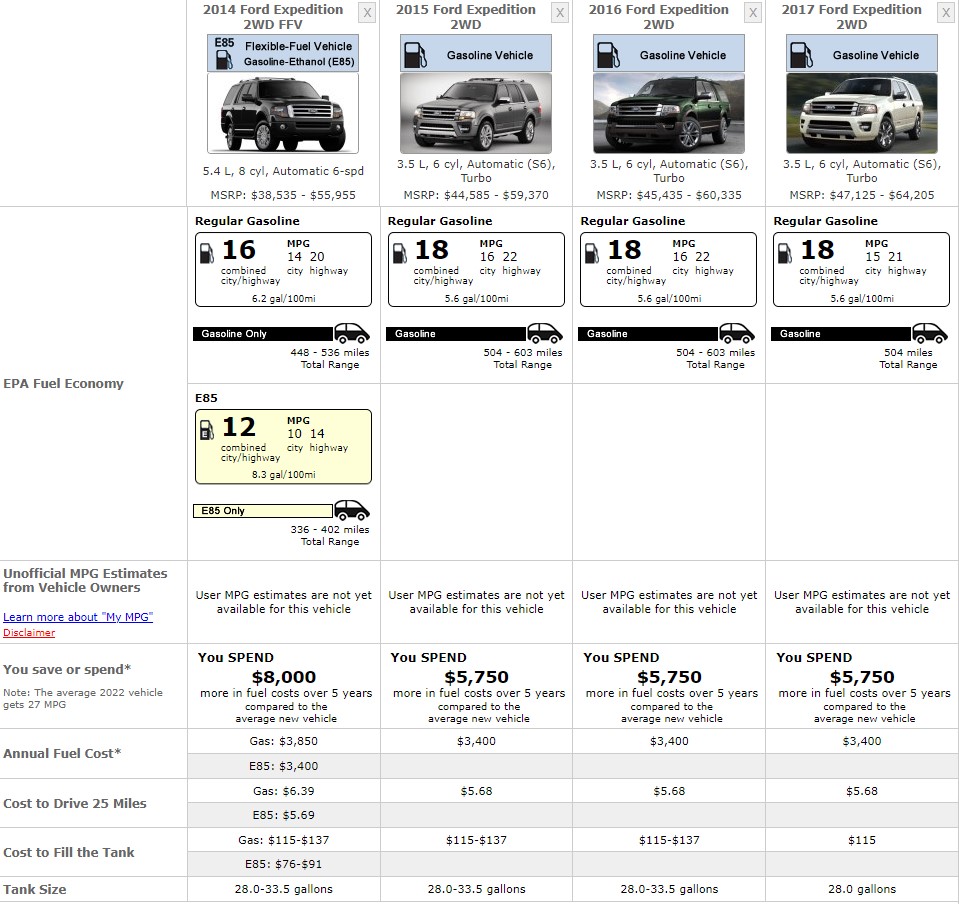

FORD 2017 EXPEDITION FUEL CONSUMPTION

Safety Ratings

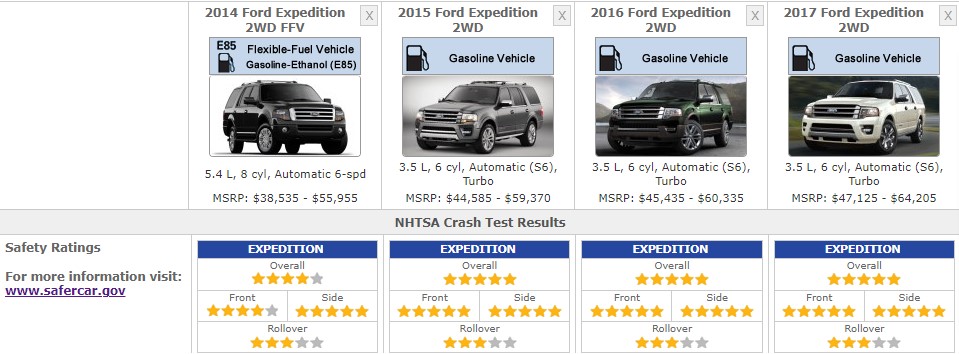

FORD SAFETY RATINGS 2017 EXPEDITION

References


  1. 2017 Ford Expedition Owners Manual

  2. Ford Expedition Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Front Fog Light Bulb: LED

  • Front Sidemarker Light Bulb: LED

  • Front Turn Signal Light Bulb: 7444NA

  • High Beam Headlight Bulb:

    • H9-65W

    • 9005

  • Low Beam Headlight Bulb:

    • 9005L+

    • H11-55W

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb: 3157K

  • Center High Mount Stop Light Bulb: 2825

  • License Plate Light Bulb: 168

  • Parking Light Bulb: 7444NA

  • Rear Sidemarker Light Bulb: 3157K

  • Rear Turn Signal Light Bulb: 3157K

  • Tail Light Bulb: 3157K

  • Tailgate Light Bars: vbf-tailgate-light

Interior Lights

  • Dome Light Bulb: 578

  • Luggage Compartment Light Bulb: 578

  • Map Light Bulb: 2825
