Engine 4.6L 8-Cylinder SOHC

  • Recommended oil viscosity:

  • Oil certification: API

  • Drain plug torque: 17 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 4.6L 8-Cylinder: 0.054''

Engine 5.4L 8-Cylinder SOHC

  • Recommended oil viscosity: 5W:30

  • Oil certification: API

  • Drain plug torque: 12 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 5.4L 8-Cylinder: 0.044''

Front Axle

  • Type: Motorcraft SAE 80W-90 Premium Rear Axle Lubricant XY-80W-90–QL / WSP-M2C197–A

  • Capacity: 5.8 pints (2.8L)

Spindle bearing

  • Type: High Temperature 4X4 Front Axle and Wheel Bearing Grease E8TZ-19590–A XG-11 (FAD) / ESA-M1C198–A

Rear axle - F-250/350 1 (10.50-inch axle)

  • Type: Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140–QL /WSL-M2C192-A

  • Capacity: 6.9 pints (3.3L)

Rear axle - F-350 (DANA 80)

  • Type: Motorcraft SAE 75W-90 Synthetic Rear Axle Lubricant/ XY-75W90–QLS / WSS–M2C918–A
  • Capacity: 8.5 pints (4.0L)

Rear axle - F-450/550 (Dana S110/S130)

  • Type: Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant/ XY-75W140–QL /WSL-M2C192-A

  • Capacity: 14.0 pints (6.6L)

Brake fluid (and clutch fluid, if equipped)

  • Type: Motorcraft High Performance DOT 3 Motor Vehicle Brake Fluid/ PM-1 / ESA-M6C25-A or WSS-M6C62-A

Engine coolant - 5.4L 2 V8 engine with AC

  • Type: Motorcraft Premium Gold Engine Coolant (yellow-colored) : VC-7-B /WSS-M97B51-A1

  • Capacity: 26.4 quarts (25.0L)

Engine coolant - 6.8L  2 V10 engine

  • Type: Motorcraft Premium Gold Engine Coolant (yellow-colored) / VC-7-B / WSS-M97B51-A1

  • Capacity: 27.5 quarts (26.0L)

Engine coolant - diesel engine

  • Type:  Refer to the 6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s Guide Supplement

Fuel

  • Capacity: 19.0 gallons (71.9L)Y

Fuel tank - Short box

  • Type: 30.5 gallons (115.5L)

Fuel tank - Long box

  • Type: 38.0 gallons (143.9L)

Fuel tank - Aft axle

  • Type: 40.0 gallons (151.4L)

Hinges, latches, striker plates, fuel filler door hinge, and seat tracks

  • Type: Multi-Purpose Grease/ XG–4 or XL-5 /ESB-M1C93–B

Lock cylinders

  • Type: Motorcraft Penetrating and Lock Lubricant / XL-1

Transmission / parking brake linkages and pivots, brake and clutch pedal shaft (if equipped)

  • Type: Motorcraft Premium Long-Life Grease/ XG-1-C or XG-1-K / WSD-M1C227-A

Power steering fluid

  • Type: Motorcraft MERCON ATF / XT-2-QDX / MERCON

  •  Capacity: Fill to FULL COLD range on dipstick

Transfer case fluid

  • Type: Motorcraft MERCON ATF/XT-2-QDX / MERCON

  • Capacity: 2.0 quarts (1.9L)

Manual transmission fluid

  • Type: Motorcraft MERCON ATF/ XT-2-QDX / MERCON

  • Capacity: 5.8 quarts (5.5L)

Automatic transmission fluid

  • Type: Motorcraft MERCON SP ATF XT-6–QSP / MERCON SP

  • Capacity: 17.5 quarts 5 (includes (16.6L) remote filter element change)

Windshield washer fluid

  • Type: Motorcraft Premium Windshield Washer Concentrate/ ZC-32–A / WSB-M8B16–A2

  • Capacity: 4.25 quarts (4.0L)

Powertrain


Engine

  • Gasoline:

    • 4.2L Essex V6 engine (Brazil, F-250 only)

    • 5.4 L Triton V8

    • 6.8 L Triton V10

  • Diesel:

    • 1999- 2003.5: 7.3 L Powerstroke V8

    • 2003.5-2007: 6.0 L Powerstroke V8

    • 4.2L MWM-International Sprint 6.07 TCA straight-6 turbodiesel (Brazil, F-250 only, also featured in some RHD versions exported to Australia, South Africa, United Kingdom, etc.)

    • 3.9 L Cummins B-series (Brazil)

    • 2.8L Cummins ISF2.8 (Brazil, F-350/F-4000 since 2014)

Transmission

  • 5-speed manual

  • 6-speed ZF S6-650l manual

  • 4-speed 4R100 automatic

  • 5-speed 5R110W automatic

Fuel Consumption


Engine

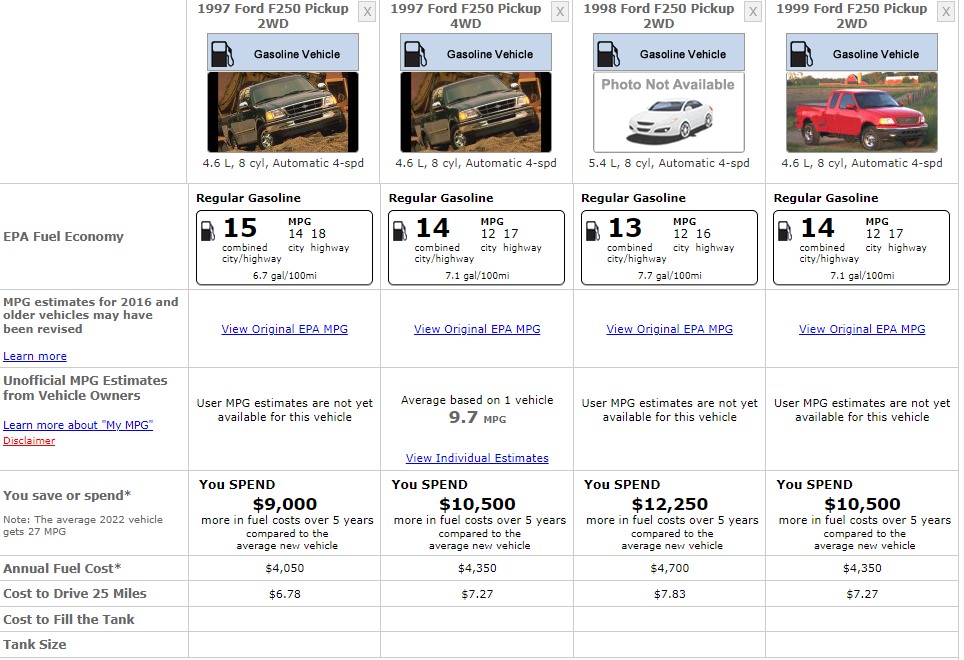

FORD F250 FUEL CONSUMPTION

References


  1. 2007 Ford F-Series Super Duty Owners Manual

  2. Ford F-Series Super Duty Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov.

Lights

Front Light

  • Front Fog Light Bulb: 9145

  • Front Inner Turn Signal Light Bulb:

    • 3157-SCK

    • 3157AK

    • 4157K

  • Front Outer Turn Signal Light Bulb: 194

  • Front Sidemarker Light Bulb: 194

  • High Beam and Low Beam Headlight Bulb:

    • H13

    • H6054

Rear Lights

  • Back Up Light Bulb:

    • 3156K

    • 921

  • Brake Light Bulb:

    • 3157-SCK

    •  3157K

  • Center High Mount Stop Light Bulb: 922

  • License Plate Light Bulb: 168

  • Parking Light Bulb:

    • 3157-SCK

    • 3157AK

    •  4157K

  • Rear Sidemarker Light Bulb: 2825

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    • 3157K

  • Tail Light Bulb:

    • 3157-SCK

    •  3157K

  • Tailgate Light Bars: vbf-tailgate-light

Interior Lights

  • Courtesy Light Bulb: 194

  • Dome Light Bulb: 578

  • Glove Box Light Bulb: 161

  • Luggage Compartment Light Bulb: 906
