Chassis

  • Type: P552

Engine 2.7L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 2.7L 6-Cylinder: 0.032''

Engine  3.3L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 3.3L 6-Cylinder; 0.032''

Engine 3.5L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.032''

Engine 5.0L 8-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 17 ft-lbs

  • Oil capacity: 6.0 quarts

Engine 3.0L 6-Cylinder

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Oil capacity: 8.8 quarts

Spark Plug Gap

  • 3.0L 6-Cylinder: 0.052''

Refrigerant

  • Type: WSS-M17B21-A

  • R-1234yf Refrigerant (U.S.)

  • R-1234yf Refrigerant / Frigorigène R-1234yf (Canada) YN-33-A (U.S.)

  • HS7Z-19B519-BA (Canada)

  • Capacity: 26 oz (0.74 kg)

Refrigerant Oil

  • Type: WSS-M17B21-A

    • Motorcraft® R-1234yf Refrigerant PAG Oil (U.S.)

    • Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf

    • Motorcraft® (Canada) YN-35 (U.S. & Canada)

  • Capacity: 2.71 fl oz (80 ml)

Automatic Transmission

  • Type: WSS-M2C949

    • Motorcraft® MERCON® ULV Automatic Transmission Fluid (U.S.)

    • Motorcraft® MERCON® ULV Automatic Transmission Fluid /

    • MERCON® ULV huile pour boîtes automatique Motorcraft® (Canada) XT-12-QULV (U.S. & Canada)

  • Capacity: 13.2 qt (12.5 L)

Coolant

  • Type: WSS-M97B57-A2

    • Motorcraft® Yellow Prediluted Antifreeze/Coolant (U.S.)

    • Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prédilué jaune

    • Motorcraft® (Canada) VC-13DL-G (U.S.) CVC-13DL-G (Canada)

  • Capacity: 15.1 qt (14.3 L)

Fuel

  • Capacity:

    • Regular Cab and SuperCab; 23.0 gal (87.1 L)

    • SuperCrew Cab.: 26.0 gal (98.4 L)

    • Optional: 36.0 gal (136.3 L

Grease

  • Type: ESA-M1C75-B

    • Motorcraft® Premium Long-Life Grease (U.S.)

    • ESA-M1C75-B Motorcraft® Premium Long-Life Grease / Graisse longue durée de qualité première Motorcraft® (Canada) XG-1-E1 (U.S. & Canada)

    • Motorcraft® Multi-Purpose Grease Spray (U.S.)

    • ESB-M1C93-B Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aérosol

    • Motorcraft® (Canada) XL-5-A (U.S. & Canada)

Hydraulic Brake System

  • Type: WSS-M6C65-A2

    • Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid (U.S.)

    • Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV

    • Motorcraft® (Canada) PM-20 (U.S. & Canada)

Lock

  • Type:

    • Motorcraft® Penetrating and Lock Lubricant (U.S.)

    • Motorcraft® Penetrating Fluid / Liquide dégrippant

    • Motorcraft® (Canada) XL-1 (U.S.) CXC-51-A (Canada)

Transfer Case

  • Type: MERCON® LV WSS-M2C938-A

    • Motorcraft® MERCON® LV Automatic Transmission

    • MERCON® LV WSS-M2C938-A Fluid (U.S.)

    • Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boîte automatique MERCON® LV

    • Motorcraft® (Canada) XT-10-QLVC (U.S.) CXT-10-LV6 (Canada)

  • Capacity:

    • Four-wheel drive (Electronic Shift-on-the- Fly):1.5 qt (1.4 L)

    • Automatic four-wheel drive (Torque on demand):1.5 qt (1.4 L)

Front Axle

  • Type:

    • Motorcraft® SAE 75W-85 Premium Synthetic WSS-M2C942-A Hypoid Gear Lubricant (U.S.)

    • Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthétique de haute qualité pour engrenages hypoïdes

    • SAE 75W-85 Motorcraft® (Canada) XY-75W85-QL (U.S. & Canada)

  • Capacity: 1.8 qt (1.7 L)

Rear Axle

  • Type:

    • Motorcraft® SAE 75W-85 Premium Synthetic WSS-M2C942-A Hypoid Gear Lubricant (U.S.)

    • Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthétique de haute qualité pour engrenages hypoïdes SAE 75W-85

    • Motorcraft® (Canada) XY-75W85-QL (U.S. & Canada)

  • Capacity: 2.7 qt (2.6 L)

Washer Reservoir

  • Type:  WSS-M14P19-A

    • Motorcraft® Premium Windshield Wash Concentrate with Bitterant (U.S.)

    • Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualité

    • Motorcraft® (Canada) ZC-32-B2 (U.S.) CXC-37-A/B/D/F (Canada)

  • Capacity: Fill as required.

Powertrain


Engine

  •  3.3 L Cyclone V6 gasoline

  • 3.5 L Cyclone V6 gasoline

  • 2.7 L EcoBoost V6 twin-turbo gasoline

  • 3.5 L EcoBoost V6 twin-turbo gasoline

  • 5.0 L Coyote V8 gasoline

  • 3.0 L Powerstroke turbo-diesel V6

Transmission

  • 6-speed Ford 6R80 automatic

  • 10-speed Ford 10R80 automatic

Fuel Consumption

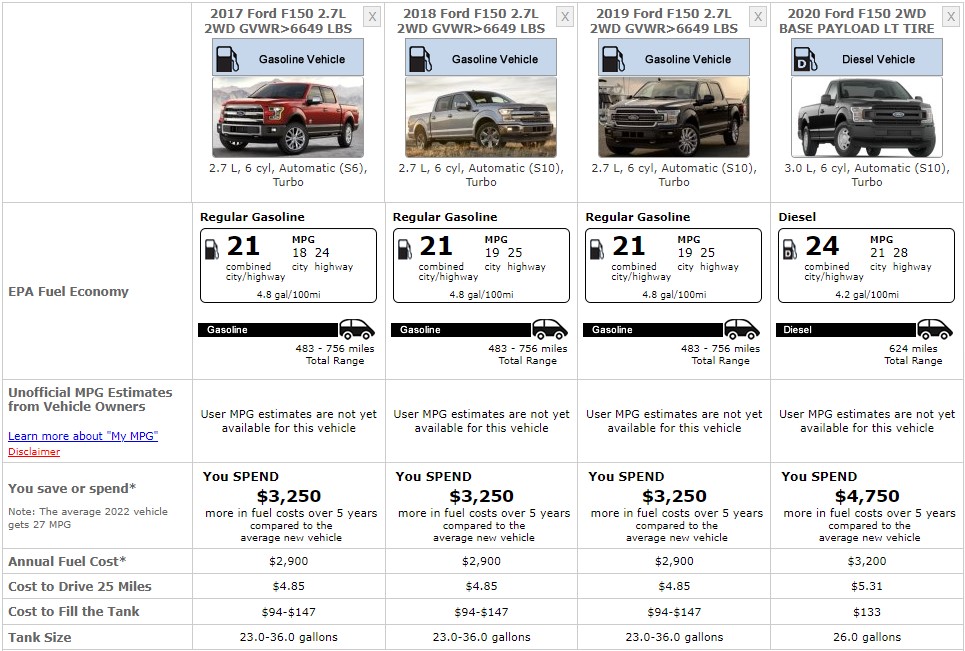

Ford  F150 Fuel Comparison

References


  1. 2020 Ford F-Series Owners Manual

  2. Ford Ford F-Series- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov.

Front Lights

  • Door Mirror Illumination Light Bulb: LED

  • Front Fog Light Bulb: 9140

  • Front Sidemarker Light Bulb:

    • 2825

    • LED

  • Front Turn Signal Light Bulb:

    • 7444NA

    •  LED

  • High Beam Headlight Bulb:

    • 9005LL

    • LED

  • Low Beam Headlight Bulb:

    • H11-55W

    • LED

Rear Lights

  • Back Up Light Bulb:

    • 3156

    • LED

  • Brake Light Bulb:

    • 3157K

    • LED

  • Center High Mount Stop Light Bulb:

    • 912,

    • LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb

    •  7444NA

    • LED

  • Rear Sidemarker Light Bulb:

    • 3157K

    •  LED

  • Rear Turn Signal Light Bulb:

    • LED

    •  3157K

  • Tail Light Bulb:

    • 3157K

    •  LED

Interior Lights

  • Dome Light Bulb: LED

  • Luggage Compartment Light Bulb

    • : 912

    • LED

  • Map Light Bulb LED

Every Month

  • Check engine oil level.
  • The function of all interior and exterior lights.
  • Check tires for wear and proper pressure.
  • Windshield washer fluid.

Every 6 Months

  • Battery connections. Clean if necessary
  • Body and door drain holes for obstructions. Clean if necessary.
  • Cooling system fluid level and coolant strength.
  • Door weatherstrips for wear. Lubricate if necessary.
  • Hinges, latches, and outside locks for proper operation. Lubricate if necessary
  • Parking brake for proper operation.
  • Safety belts and seat latches for wear and function.
  • Safety warning lamps (brake, ABS, airbag, and safety belt) for operation.
  • Washer spray and wiper operation. Clean or replace blades as necessary.

Oil Change Interval

This vehicle is equipped with an Intelligent Oil-Life Monitor that determines when you should change the engine oil based on how your vehicle is used. By using several important factors in its calculations, the  the monitor helps reduce the cost of owning your vehicle and reduces environmental waste at the same time.

Ford fusion oil change interval

This means you do not have to remember to change the oil on a mileage-based schedule. Your vehicle lets you know when an oil change is due by displaying ENGINE OIL CHANGE DUE or OIL CHANGE REQUIRED in the information display.

oil change interval

The following table provides examples of vehicle use and its impact on oil change intervals. It is a guideline only. Actual oil change intervals depend on several factors and generally decrease with the severity of use.

At every oil change interval as indicated by the information display.

Cabin Air Filter

  • Every 20000 miles

Engine Air Filter

  • Every 30000 miles

Change Engine Coolant

  • At 100000 miles

Replace Spark Plugs

  • Every 100000 miles

Inspect Accessory Drive Belt

  • Every 100000 miles

Every 150000 miles

  • Change automatic transmission fluid.
  • Replace accessory drive belt(s).
These are recommended intervals for all vehicles. Intervals in your owner's manual supersede these values.
