Engine 2.0L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 21 ft-lbs

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 2.0L 4-Cylinder : 0.052''

Brake fluid (and clutch fluid–if equipped)

  • Type: Motorcraft High Performance DOT 3 Motor Vehicle Brake Fluid/ PM-1-C / WSS-M6C62-A or WSS-M6C65-A1

  • Capacity: Between MIN and MAX on reservoir

Door latch, hood latch, auxiliary hood latch, trunk latch, seat tracks

  • Type: Multi-Purpose Grease (Lithium grease)  XG-4 or XL-5 or equivalent ESB-M1C93-B

Lock cylinder

  • Type: Motorcraft Penetrating and Lock Lubricant XL-1

Automatic transmission fluid

  • Type: Motorcraft 2 MERCON LV ATF/ XT-10-QLV /MERCON LV

  • Capacity: 6.9 quarts 1 (6.6L)

Manual transmission fluid (5-speed)

  • Type: Motorcraft Full Synthetic Manual Transmission Fluid/XT-M5-QS / WSD-M2C200-C

  • Capacity: 2.0 quarts 1 (1.9L)

Coolant

  • Type: Motorcraft Premium Gold Engine Coolant with Bittering Agent4 (yellow-colored) : VC-7-B /WSS-M97B51-A1

  • Capacity: 5.3 quarts (5.0 L)

Power steering fluid

  • Type: Motorcraft MERCON V ATF /XT-5-QM /MERCON V

  • Capacity: Fill to between MIN and MAX lines on reservoir

Windshield Washer Fluid

  • Type: Motorcraft Premium Windshield Washer Concentrate (US) Premium Quality Windshield Washer

  • Capacity: Fill as required

Powertrain


Engine

  •    2.0 L Duratec I4 (gasoline)

Transmission

  • 4-speed automatic

  • 5-speed manual

Fuel Consumption

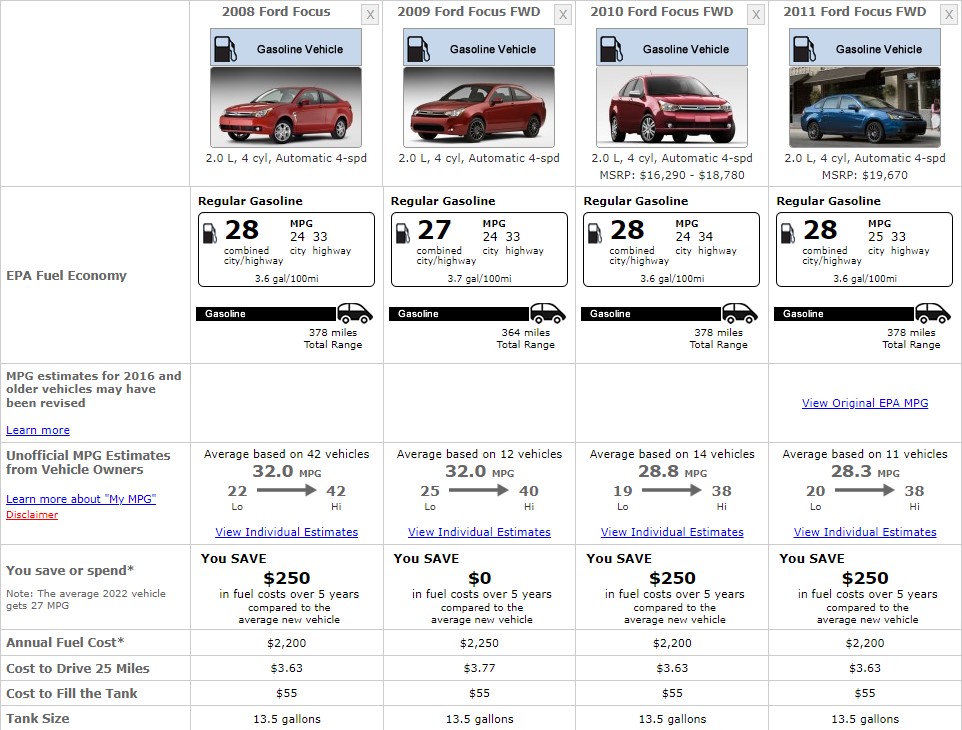

FORD FOCUS FUEL CONSUMPTION 2011

Safety Ratings

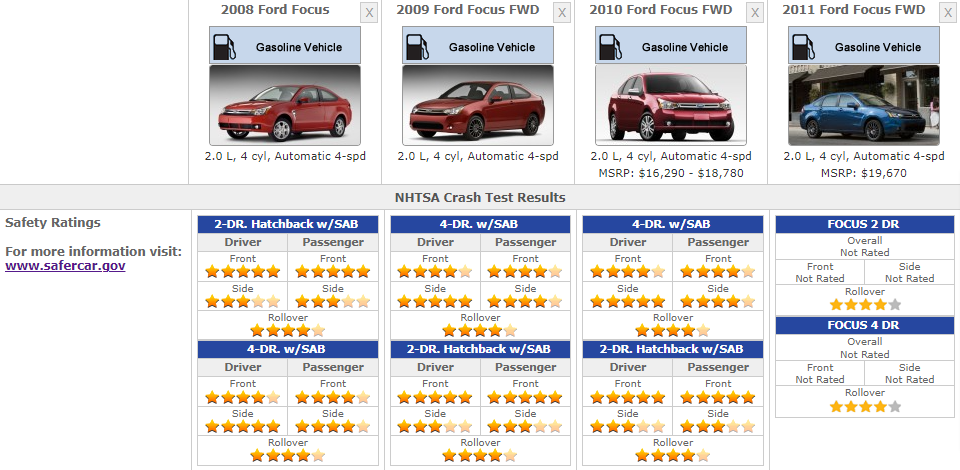

FORD FOCUS 2011 SAFETY RATINGS

References


  1. 2011 Ford Focus Owners Manual

  2. Ford Focus Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov.

Lights

Front Lights

  • Daytime Running Light Bulb:

    • 3157-SCK

    •  3157K

  • LED Driving Lights & Fog Lights: FDC-MB1

  • Front Fog Light Bulb: H11LL

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3457NAK

  • High Beam and Low Beam Headlight Bulb: H13

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 3157-SCK

    •  3057K

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 6418

  • Parking Light Bulb:

    • 3157-SCK

    •  3457NAK

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    •  3057K

  • Tail Light Bulb:

    • 3157-SCK

    • 3057K

Interior Lights

  • Dome Light Bulb: 6411

  • Map Light Bulb: 3886X

  • Trunk Light Bulb: 6411
