Engine 1.6L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 21 ft-lbs

  • Oil capacity: 5.3 quarts

Spark Plug Gap

  • 2.5L 4-Cylinder: 0.032''

Engine 2.0L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 5.7 quarts

Spark Plug Gap

  • 3.0L 6-Cylinder: 0.032''

Engine 2.5L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Drain plug torque: 21 ft-lbs

  • Oil capacity: 5.7 quarts

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.052''

Brake (and clutch–if equipped) fluid

  • Type: Motorcraft High Performance DOT 4 Motor Vehicle Brake Fluid/ PM-1-C / WSS M6C65-A2 and ISO 4925 Class 6

  • Capacity: PM-1-C / WSS-M6C62-A or WSS-M6C65-A1

Door latch, hood latch, auxiliary hood latch, door hinges, striker plates, seat tracks and fuel filler door hinge

  • Type: Multi-Purpose Grease (Lithium grease) XG-4 or XL-5 or equivalent / ESB-M1C93-B

Lock cylinders

  • Type: Motorcraft Penetrating and Lock Lubricant XL-1

Automatic transmission fluid

  • Type: Motorcraft® MERCON® LV ATF XT-10-QLV MERCON® LV

  • Capacity: 9.0 qt (8.5 L)

Rear differential (AWD) fluid

  • Type: Motorcraft SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL /WSP-M2C197-A

  • Capacity: 1.2 qt (1.15 L)

Power Transfer Unit (PTU) fluid (AWD)

  • Type: Motorcraft SAE  75W-140 Synthetic Rear Axle Lubricant/ XY-75W140-QL / WSL-M2C192-A

  • Capacity: 11.8 fl oz (0.35 L)

Engine coolant

  • Type:

    • 2.0L EcoBoost
      • Motorcraft® Orange Antifreeze / Coolant Prediluted

        • VC-3DIL-B (U.S.)

        • CVC-3DIL-B

        • WSS-M97B44-D2

    • 1.6L EcoBoost

      • Motorcraft® Orange Antifreeze / Coolant Prediluted
        • VC-3DIL-B (U.S.)

        • CVC-3DIL-B

        • WSS-M97B44-D2

    • 2.5L engine

      • Motorcraft® Orange Antifreeze / Coolant Prediluted
        • VC-3DIL-B (U.S.)

        • CVC-3DIL-B

        • WSS-M97B44-D2

  • Capacity:

    • 2.0L EcoBoost :8.9 qt (8.4 L)

    • 1.6L EcoBoost: 6.9 qt (6.6 L)

    • 2.5L engine: 7.1 qt (6.8 L)

Windshield washer fluid

  • Type: WSB-M8B16-A2

    • Motorcraft Premium Windshield Washer Concentrate (US) Premium Quality ZC-32-A (US)

    • Windshield Washer Fluid (Canada) CXC-37- (A, B, D, and F)

  • Capacity: 101 oz (3.0L)

Fuel (FWD)

  • Capacity:  16.5 gal (62.5 L)

Fuel (AWD)

  • Capacity:  17.5 gal (66.2 L)

A/C Refrigerant

  • Type:

    • 2.5L Engine (EXCEPT E100)Motorcraft R-134a Refrigerant

    • 1.5L/1.6L, 2.0L and 2.5L (E1000 Engine): Motorcraft R-134a Refrigerant
      • YN-19 (US)

      • CYN-16-R (Canada)

      • WSH-M1C231-A

  • Capacity:

    • 2.5L Engine (EXCEPT E100) :1.50 lb (0.68 kg)

    • 1.5L/1.6L, 2.0L and 2.5L (E1000 Engine): 1.23 lb (0.56 kg)

A/C Refrigerant Compressor Oil

  • Type: Motorcraft PAG Refrigerant Compressor Oil / YN-12-D WSH-M1C231-B

  • Capacity: 5.2 oz (153.8 ml)

Powertrain


Engine

  • 1.5 L EcoBoost I4

  • 1.6 L EcoBoost I4

  • 2.0 L EcoBoost I4

  • 2.0 L Duratec I4 (Hybrid only)

  • 2.5 L Duratec I4

  • 2.7 L Ecoboost V6 (Sport only)

Transmission

  • 6-speed Ford B6 manual (1.6 EcoBoost only)

  • 6-speed Ford 6F automatic (all engines)

  • eCVT: Ford HF35 (hybrid and PHEV)

Fuel Consumption

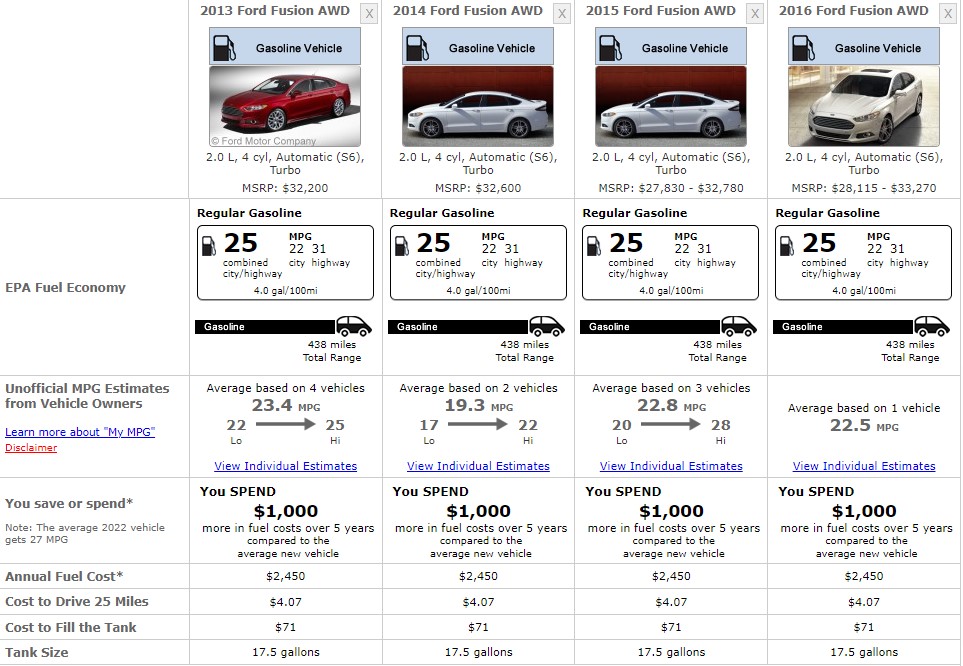

FORD  2013 FUSION FUEL CONSUMPTION

Safety Ratings

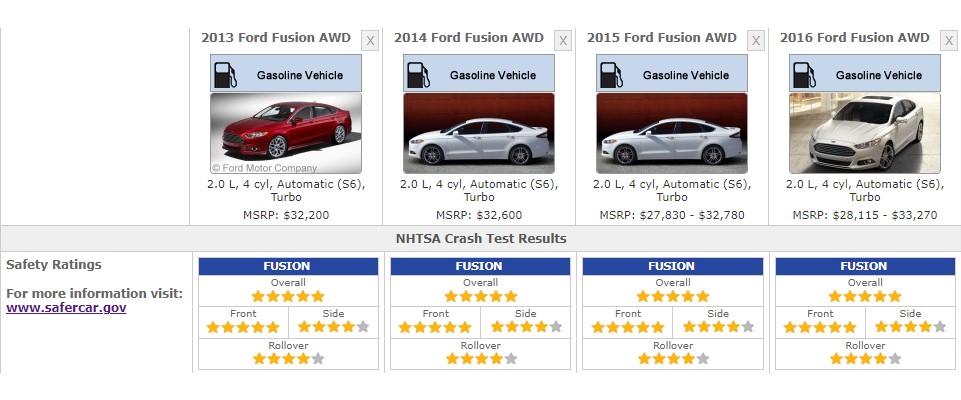

FORD FUSION 2013 SAFETY RATINGS

References


  1. 2013 Ford Fusion Owners Manual

  2. Ford Fusion Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov.

Lights

Front Lights

  • Front Fog Light Bulb:

    • H11-55W

  • Front Sidemarker Light Bulb: LED

  • Front Turn Signal Light Bulb: 12181NA

  • High Beam Headlight Bulb: H7LL

  • Low Beam Headlight Bulb: H11LL

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb: 168

  • Rear Sidemarker Light Bulb: LED

  • Rear Turn Signal Light Bulb: LED

  • Tail Light Bulb: LED

Interior Lights

  • Dome Light Bulb: LED

  • Map Light Bulb: LED

  • Trunk Light Bulb: 168
