Engine 2.3L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Oil capacity: 5.7 quarts

Spark Plug Gap

  • 2.3L 4-Cylinder: 0.032''

Coolant

  • Type:
    • Engine coolant (U.S.): WSS-M97B57-A2 Motorcraft® Yellow Prediluted Antifreeze/Coolant VC-13DL-G

    • Engine coolant (Canada): WSS-M97B57-A2 Motorcraft® Yellow Prediluted Antifreeze/Coolant CVC-13DL-G

    • Capacity: 11.6 qt (11 L)

Brake fluid

  • Type:  WSS-M6C65-A2 Motorcraft® DOT 4 Low Viscosity (LV) High Performance Motor Vehicle Brake Fluid PM-20

  • Capacity: Between MIN/MAX on brake fluid reservoir

Front axle fluid

  • Type:

  • Capacity: 2.11 pt (1.0 L)

Rear axle fluid (standard axle)

  • Type:

    • U.S WSP-M2C197-A Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL

    • Canada: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant CXY-80W90-1L

  • Capacity: 3.70 pt (1.75 L)

Rear axle fluid (locking axle)

  • Type:

  • Capacity: 3.04 pt (1.44 L)

Automatic transmission fluid

  • Type:

    • WSS-M2C949-A Motorcraft® MERCON® ULV Automatic Transmission MERCON® ULV Fluid XT-12-QUL

    • WSS-M2C949-A Motorcraft® MERCON® ULV Automatic Transmission MERCON® ULV Fluid XT-12-QULVC

  • Capacity: 12.8 qt (12.1 L)

Power Transfer Unit (PTU) fluid (four-wheel drive)

  • Capacity: 23.7 fl oz (700 ml)

Windshield washer fluid

  • Type:

    • Windshield washer fluid (U.S.): WSS-M14P19-A Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2

    • Windshield washer fluid (Canada): WSS-M14P19-A Motorcraft® Premium Quality Windshield Washer Fluid CXC-37-(A, B, D, F)

  • Capacity: Fill as required

Fuel tank

  • Capacity: 18.8 gal (71.2 L)

A/C refrigerant

  • Type:

    • A/C refrigerant (U.S.): WSS-M17B21-A R-1234yf Refrigerant YN-33-A

    • A/C refrigerant (Canada): WSS-M17B21-A R-1234yf Refrigerant HS7Z-19B519-BA

  • Capacity: 1.49 lb (0.675 kg)

A/C refrigerant compressor oil

  • Type: Motorcraft® R-1234yf Refrigerant PAG Oil YN-35 WSS-M2C300-A2

  • Capacity:2.7 fl oz (80 ml)

Transmission, parking brake linkage, and pivots and brake pedal shift grease

  • ​​​​​​​Type: ESA-M1C75-B ESA-M1C75-B

  • Capacity: 18.8 gal (71.2 L)

Multi-purpose grease

  • ​​​​​​​Type: Motorcraft® Multi-Purpose Grease Spray XL-5-A ESB-M1C93-B

  • Capacity: 18.8 gal (71.2 L)

Lock cylinders

  • ​​​​​​​Type:

    • US Penetrating and Lock Lubricant XL-1

    • Canada: Penetrating Fluid CXC-51-A

  • Capacity: 18.8 gal (71.2 L)

Powertrain


Engine

  • Petrol:

    • 2.3 L EcoBoost I4 turbo

    • 2.5 L Duratec 25 I4

  • Diesel:

    • 2.0 L EcoBlue I4 turbo

    • 2.0 L EcoBlue I4 twin-turbo

    • 2.2 L Duratorq I4 turbo

    • 3.2 L Duratorq I5 turbo

Transmission

  • 5/6-speed manual

  • 6/10-speed 6R80/Ford-GM SelectShift automatic



Fuel Consumption

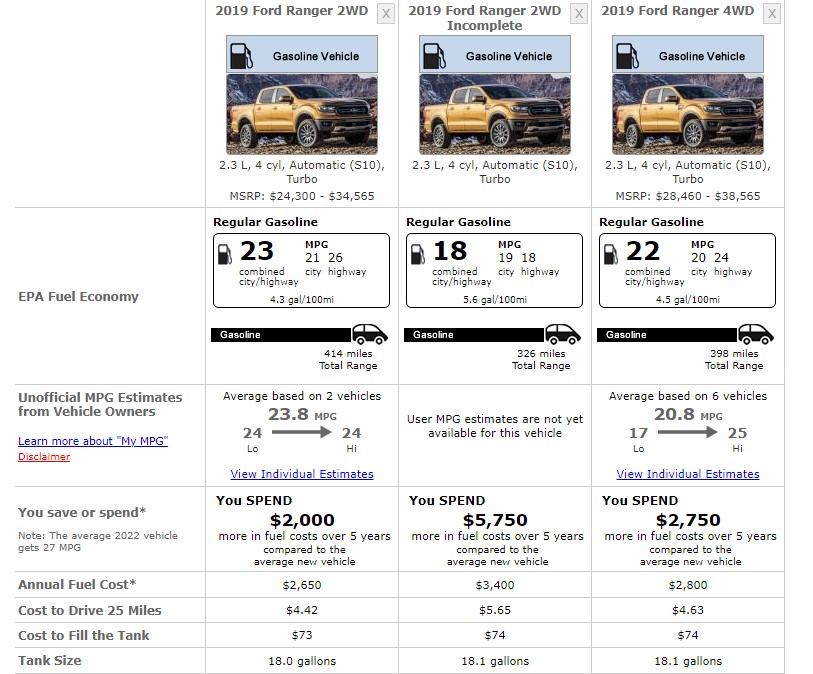

FORD RANGER 2019 FUEL CONSUMPTION

References


  1. 2019 Ford Ranger Owners Manual

  2.  Ford Ranger- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov.

Lights

Front Lights

  • Front Fog Light Bulb:

    • H11-55W

    • LED

  • Front Sidemarker Light Bulb: 194

  • Front Turn Signal Light Bulb: 7444NA

  • High Beam Headlight Bulb:

    • 9005LL

    •  LED

  • Low Beam Headlight Bulb:

    • H11LL

    • LED

Rear Lights

  • Back Up Light Bulb:

    • 7440

    •  LED

  • Brake Light Bulb:

    • 7443

    • LED

  • Center High Mount Stop Light Bulb:

    • 912

    •  LED

  • License Plate Light Bulb: 2825

  • Parking Light Bulb: 7444NA

  • Rear Turn Signal Light Bulb:

    • LED

    •  7440NA

  • Tail Light Bulb:

    • 7443

    •  LED

Interior Lights

  • Luggage Compartment Light Bulb:

    • 912

    • LED
