Engine 2.0L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 5.7 quarts

Spark Plug Gap

  • 2.0L 4-Cylinder: 0.032''

Engine 3.5L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.032''

Brake fluid

  • Type: Motorcraft DOT 4 Low Viscosity High Performance Motor Vehicle Brake Fluid PM-20 / WSS-M6C65-A2

  • Capacity: Between MAX and MIN on reservoir

Door latch, hood latch, auxiliary hood latch, door hinges, striker plates, seat tracks and fuel filler door hinge

  • Type: Multi-Purpose Grease (Lithium grease) \

  • XL-5 (aerosol) (U.S.)

  • CRCSL3151 (Canada) / ESB-M1C93-B

Coolant

  • Type: Motorcraft Orange Antifreeze/Coolant Prediluted VC-3DIL-B (U.S.); CVC-3DIL-B (Canada) / WSS-M97B44-D2 VC-7- B / WSS-M97B51-A1

  • Capacity:

    • 3.5L V6 engine : 11.1 quarts (10.5L)

    • 3.5L V6 Super High Output (SHO) engine : 11.4 quarts (10.8L)
    • 2.0L EcoBoost engine : 11.6 quarts (11.0L)

Fuel

  • Capacity: 19.0 gallons (71.9 L)

Power steering fluid

  • Type: Motorcraft MERCON ATF XT-2-QDX / MERCON

  • Capacity: Fill to line on dipstick

Automatic  transmission fluid

  •  Type: Motorcraft 2 MERCON LV/ XT-10-QLVC (U.S.); CXT-10-LV12 (Canada) / MERCON LV

  • Capacity:

    • (6F50) : 10.9 quarts (10.3L)

    • (6F55) : 11.6 quarts (11.0L)
    • (6F35) : 9.0 quarts (8.5L)



Rear differential (All Wheel Drive) fluid



  • Type: Motorcraft SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL / WSP-M2C197-A

  • Capacity: 2.4 pints (1.15L)



Power Transfer Unit (PTU) fluid (All 4 Wheel Drive)

  • Type: Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL / WSL-M2C192-A

  • Capacity: 18 ounces (0.53L)

Windshield washer fluid

  • Type: Motorcraft Premium Windshield Washer Concentrate ZC-32-B2 (U.S); CXC-37-(A, B, D, and F) (Canada) / WSB-M8B16-A2

  • Capacity: Fill as required

Lock cylinder

  • Type: Penetrating and Lock Lubricant Motorcraft XL-1

A/C refrigerant

  • Type: Motorcraft R–134a Refrigerant YN-19 (U.S.); CYN–16–R (Canada) / WSH-M17B19–A

  • Capacity:

    • 2.0LEcoBoost engine: 1.62 lb (0.74kg)

    • 3.5L V6 engine :1.43 lb (0.65kg)

A/C refrigerant compressor oil

  • Type: Motorcraft PAG Refrigerant Compressor Oil YN-12–D / WSH-M1C231–B

  • Capacity: 2.0L GTDI &3.5LTiVCT :5.2 fl oz\(0.153 L)

Powertrain


Engine

  • 2.0 L EcoBoost Turbo I4 240 hp (2013–2017)

  • 3.5 L Cyclone V6 263 hp (2010–2012)

  • 3.5 L Cyclone V6 288 hp (2013–2019)

  • 3.5 L EcoBoost V6 365 hp (2010–2019)

  • 3.7 L Cyclone Ti-VCT FFV V6 305 hp (Police Interceptor Sedan, all-wheel drive only) (2013-2019)

Transmission

  • 6F35 6-speed automatic (2.0T)

  • 6F50 6-speed automatic (3.5L)

  • 6F55 6-speed automatic (3.5TT)

  • 6F55 6-speed SelectShift® automatic (3.7L FFV)

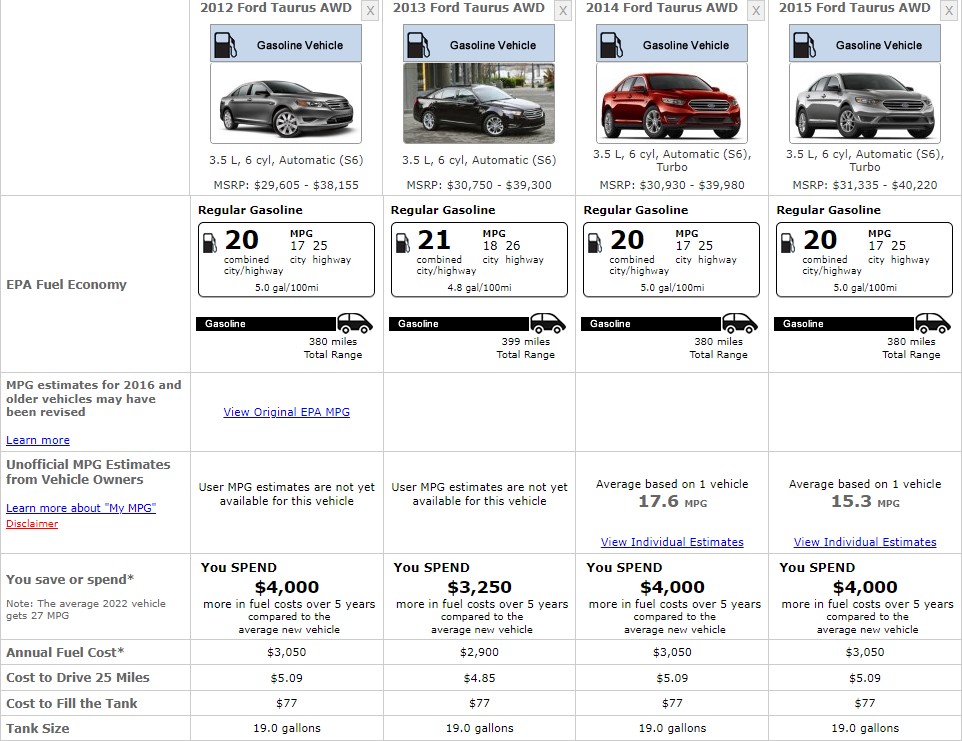

Fuel Consumption


FORD 2015 TAURUS FUEL CONSUMPTION

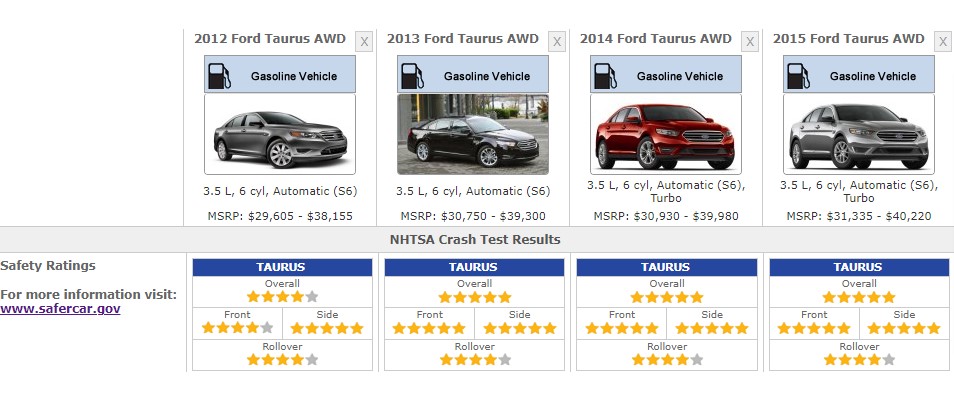

Safety Ratings


FORD 2015 TAURUS SAFETY RATINGS

References


  1. 2009 Ford Taurus Owners Manual

  2. Ford Taurus- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov.

Lights

Front Lights



  • Front Sidemarker Light Bulb:

    • 168NA

    •  168

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    •  3457NAK

  • High Beam and Low Beam Headlight Bulb

    •  9012

    •  HID-D3S

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 6418

  • Parking Light Bulb:

    • 3157-SCK,

    • 3457NAK

  • Rear Sidemarker Light Bulb: LED

  • Rear Turn Signal Light Bulb: LED

  • Tail Light Bulb: LED

Interior Lights

  • Dome Light Bulb: 2825L

  • Map Light Bulb: 2825L
