Engine 3.5L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Oil capacity: 5.9 quarts

Spark Plug Gap

  • 3.5L 6-Cylinder: 0.032''

Engine 3.7L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 20 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 3.7L 6-Cylinder: 0.052''

Engine 3.2L 5-Cylinder DOHC

  • Recommended oil viscosity: 5W-40

  • Oil certification: API

  • Oil capacity: 12.0 quarts

Engine coolant fill capacity - vehicles with an auxiliary heater

  • Type:

    • WSS-M97B44-D2

      • Motorcraft® Orange Prediluted Antifreeze/Coolant (U.S.)

      • Motorcraft® Orange Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prédilué orange

      • Motorcraft® (Canada) VC-3DIL-B (U.S.) CVC-3DIL-B (Canada)

  • Capacity:

    • 3.2L Engine :15.3 qt (14.5 L)

Engine coolant fill capacity - vehicles without an auxiliary heater

  • Type:

    • WSS-M97B44-D2

      • Motorcraft® Orange Prediluted Antifreeze/Coolant (U.S.)

      • Motorcraft® Orange Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement prédilué orange

      • Motorcraft® (Canada) VC-3DIL-B (U.S.) CVC-3DIL-B (Canada)

  • Capacity:

  • 3.2L Engine : 13.9 qt (13.2 L)

Brake Fluid

  • Type:
    • WSS-M6C65-A2

      • Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid (U.S.)

      • Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de frein automobile haute performance DOT 4 LV

      • Motorcraft® (Canada) PM-20 (U.S. & Canada)



Automatic transmission fluid fill capacity



  • Type:

    • MERCON® LV WSS-M2C938-A

      • Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.) XT-10-QLVC (U.S.)

      • Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boîte automatique MERCON® LV Motorcraft® CXT-10-LV6 (Canada

  • Capacity:
  • 3.2L Engine: 13.1 qt (12.4 L)

Rear axle fluid fill capacity - vehicles with limited-slip differential.2

  • Type:
    • Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant (U.S.)

    • Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthétique de haute qualité pour engrenages hypoïdes SAE 75W-85

    • Motorcraft® (Canada) XY-75W85-QL (U.S. & Canada)

  • Capacity: 3.2L Engine: 2.9 qt (2.72 L)

Rear axle fluid fill capacity - vehicles with conventional differential

  • Type:
    • Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant (U.S.)

    • Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile synthétique de haute qualité pour engrenages hypoïdes SAE 75W-85

    • Motorcraft® (Canada) XY-75W85-QL (U.S. & Canada)

  • Capacity:

  • 3.2L Engine: 3.0 qt (2.84 L)

Rear axle friction modifier

  • Type:

    • `Motorcraft® Additive Friction Modifier XL-3 (U.S.)

    • Motorcraft® Additive Friction Modifier / Additif modificateur de friction Motorcraft® CXL-3 (Canada)

  • Capacity: 3.2L Engine: 4.0 fl oz (118 ml)

Fuel tank fill capacity

  • Capacity:

  • 3.2L Engine: 25.1 gal (95 L)

Diesel exhaust fluid fill capacity

  • Capacity:

  • 3.2L Engine: 5.5 gal (21 L)

Washer system fill capacity.

  • Type:
    • Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 (U.S.)

    • Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute qualité Motorcraft® CXC-37-A/B/D/F (Canada)

  • Capacity: 3.2L Engine:4.8 qt (4.5 L)

Air conditioning refrigerant fill capacity - vehicles with rear air conditioning

  • Type:

    • WSH-M17B19-A

      • Motorcraft® R-134a Refrigerant (U.S.)YN-19 (U.S.)
      • R-134a Refrigerant / Frigorigène R-134a CYN-19-R (Canada)​​​​​​​​​​​​​​

  • Capacity:

  • 3.2L Engine: 2.45 lb (1.11 kg)

Air conditioning refrigerant fill capacity - vehicles without rear air conditioning

  • Type:

    • WSH-M17B19-A

      • Motorcraft® R-134a Refrigerant (U.S.)YN-19 (U.S.)
      • R-134a Refrigerant / Frigorigène R-134a CYN-19-R (Canada)

  • Capacity:
  • 3.2L Engine:1.76 lb (0.8 kg)



Air conditioning refrigerant compressor oil fill capacity - vehicles with rear air conditioning

  • Type:
    • Motorcraft® PAG Refrigerant Compressor Oil YN-12-D (U.S. & Canada)

    • Motorcraft® PAG Refrigerant Compressor Oil / Huile PAG pour compresseur frigorifique Motorcraft® (Canada) ​​​​​​​

Capacity: 9.5 fl oz (280 ml)

Air conditioning refrigerant compressor oil fill capacity - vehicles without rear air conditioning

  • Type:

    • WSH-M17B19-A

      • Motorcraft® R-134a Refrigerant (U.S.)YN-19 (U.S.)
      • R-134a Refrigerant / Frigorigène R-134a CYN-19-R (Canada)

  • Capacity: 5.4 fl oz (160 ml)

Powertrain


Engine

  • Diesel engines

    • 2.0 L EcoBlue TDCi I4

    • 2.0 L Duratorq TDCi I4 (China only)

    • 2.2 L Duratorq TDCi I4 (Europe and Australia only)

    • 2.4 L Duratorq TDCi I4 (Europe only)

    • 3.2 L Duratorq TDCi/Power Stroke I5 (All markets except for South America)

  • Diesel Hybrid engines

    • 2.0 L EcoBlue Hybrid mHEV TDCi I4

  • Petrol engines

    • 2.0 L EcoBoost I4 (China only)

    • 2.3 L Duratec I4 (Europe only)

    • 3.5 L Ti-VCT V6 (North America only)

    • 3.7 L Ti-VCT V6 (North America only)

    • 3.5 L EcoBoost V6 (North America and South America only include Transit Prisoner Transport Vehicle)

Transmission

  • 6-speed automatic

  • 6-speed manual (Outside North America

  • 5-speed manual (China only)

  • single-speed automatic (Electric)

  • 10-speed automatic (2020-present)

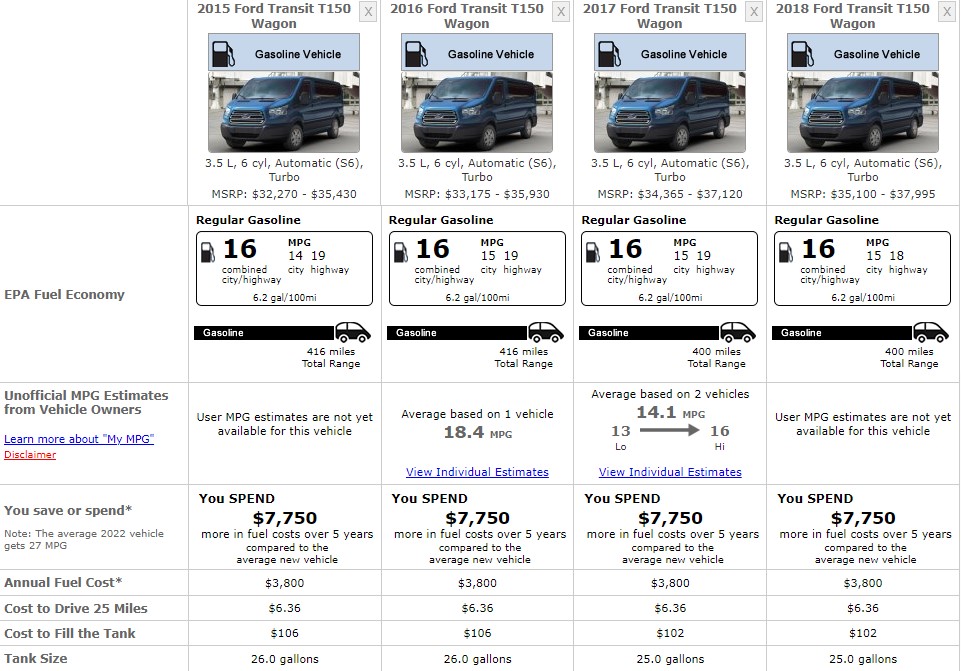

Fuel Consumption


FORD 2015 TO 2018 FUEL CONSUMPTION

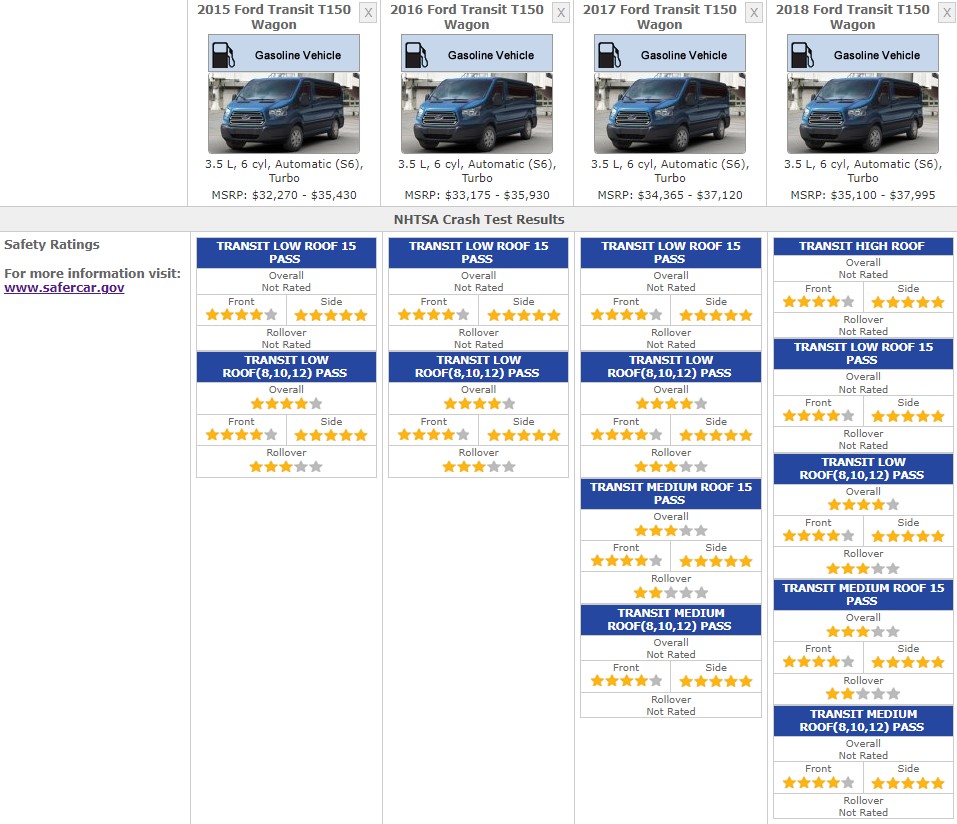

Safety Ratings


FORD 2015 TO 2018 SAFETY RATINGS

References


  1. 2018 Ford Transit Owners Manual

  2. Ford Transit - Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov.

Lights

Front Lights

  • Daytime Running Light Bulb: 9005LL

  • Front Inner Turn Signal Light Bulb: 3457NAK

  • Front Outer Turn Signal Light Bulb: 2827

  • Front Sidemarker Light Bulb: 168

  • High Beam Headlight Bulb: 9005LL

  • Low Beam Headlight Bulb: H11-55W

Rear Lights

  • Back Up Light Bulb: 3057K

  • Brake Light Bulb: 3057K

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 2825

  • Parking Light Bulb: 3457NAK

  • Rear Sidemarker Light Bulb: 168

  • Rear Turn Signal Light Bulb: 3057K

  • Tail Light Bulb: 3057K

Interior Lights

  • Dome Light Bulb: 2886X

  • Interior Door Light Bulb: 211-2

  • Luggage Compartment Light Bulb: 211-2

  • Map Light Bulb: 2886X
