Engine 4.8L 8-Cylinder

  • Recommended Oil Viscosity: 5W-30

  • Oil certification: API

  • Drain plug torque: 18 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 4.8L 8-Cylinder : 0.040''

Engine 5.3L 8-Cylinder

  • Recommended Oil Viscosity: 5W-30

  • Oil certification: API

  • Drain plug torque: 18 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 5.3L 8-Cylinder: 0.040''

Engine 6.0L 8-Cylinder

  • Recommended Oil Viscosity: 5W-30

  • Oil certification: API

  • Drain plug torque: 18 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 6.0L 8-Cylinder: 0.040''

Cooling System

  • Capacity:

    • 4800 V8 Electric Cooling Fan System:16.7 qt (15.8 L)

    • 5300 V8 Electric Cooling Fan System:16.7 qt (15.8 L)

    • 6000 V8 Engine Fan Driven Cooling System :16.2 qt (15.3 L)

    • 6000 V8 Electric Cooling Fan System: 16.8 qt (15.9 L)

    • 8100 V8 Engine Fan Driven Cooling System: 26.9 qt (25.5 L)

Fuel Tank

  • Capacity:

    • Yukon : 26.0 gal (98.4 L)

    • Yukon XL (1500 Series): 31.0 gal (117.3 L)

    • Yukon XL (2500 Series) 37.5 gal (140.0 L)

Transfer Case Fluid

  • Capacity : 2.0 qts (1.9 L)

Engine Coolant

  • Type: 50/50 mixture of clean, drinkable water and use only DEX-COOL® Coolant.

Hydraulic Brake System

  • Type: Delco® Supreme 11 Brake Fluid or equivalent DOT-3 brake fluid.

Windshield Washer Solvent

  • Type: Optikleen® Washer Solvent.

Power Steering System

  • Type: GM Power Steering Fluid (GM Part No. U.S. 89021184, in Canada 89021186)

Automatic Transmission

  • Type: DEXRON®-VI Automatic Transmission Fluid

Key Lock Cylinders

  • Type: Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in Canada 10953474).

Front Axle (Four-Wheel Drive)

  • Type: SAE 80W-90 Axle Lubricant (GM Part No. U.S. 1052271, in Canada 10950849)

Front Axle (All-Wheel Drive)

  • Type: SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 12378261, in Canada 10953455) meeting GM Specification 9986115

Rear Axle

  • Type: SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 12378261, in Canada 10953455) meeting GM Specification 9986115

Transfer Case (All-Wheel Drive with StabiliTrak®

  • Type: DEXRON®-III Automatic Transmission Fluid. Look for “Approved for the H-Specification” on the label.

Automatic Transfer Case (Four-Wheel Drive)

  • Type: AUTO-TRAK II Fluid (GM Part No. U.S. 12378508, in Canada 10953626)

AUTO-TRAK II Fluid (GM Part No. U.S. 12378508, in Canada 10953626)

  • Type: Spline Lubricant, Special Lubricant (GM Part No. U.S. 12345879, in Canada 10953511) or lubricant meeting requirements of GM 9985830.

Hood Hinges

  • Type: Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241, in Canada 10953474)

Outer Tailgate Handle Pivot Points, Hinges, Latch Bolt, and Linkage

  • Type: Multi-Purpose Lubricant, Superlube GM Part No. U.S. 12346241, in Canada 10953474).

Weatherstrip Conditioning

  • Type: Weatherstrip Lubricant (GM Part No. U.S. 3634770,in Canada 10953518) or Dielectric Silicone Grease (GM Part No. U.S. 12345579, in Canada 992887).

Weatherstrip Squeaks

  • Type: Synthetic Grease with Teflon, Superlube   (GM Part No. U.S. 12371287, in Canada 10953437).

Powertrain


Engine

  • 4.8 L 275 hp (205 kW) V8

  • 5.3 L 285 hp (213 kW) V8

  • 5.7 L Small-Block Chevrolet V8 (Mexico Only)

Transmission

  • 4-speed 4L60-E automatic

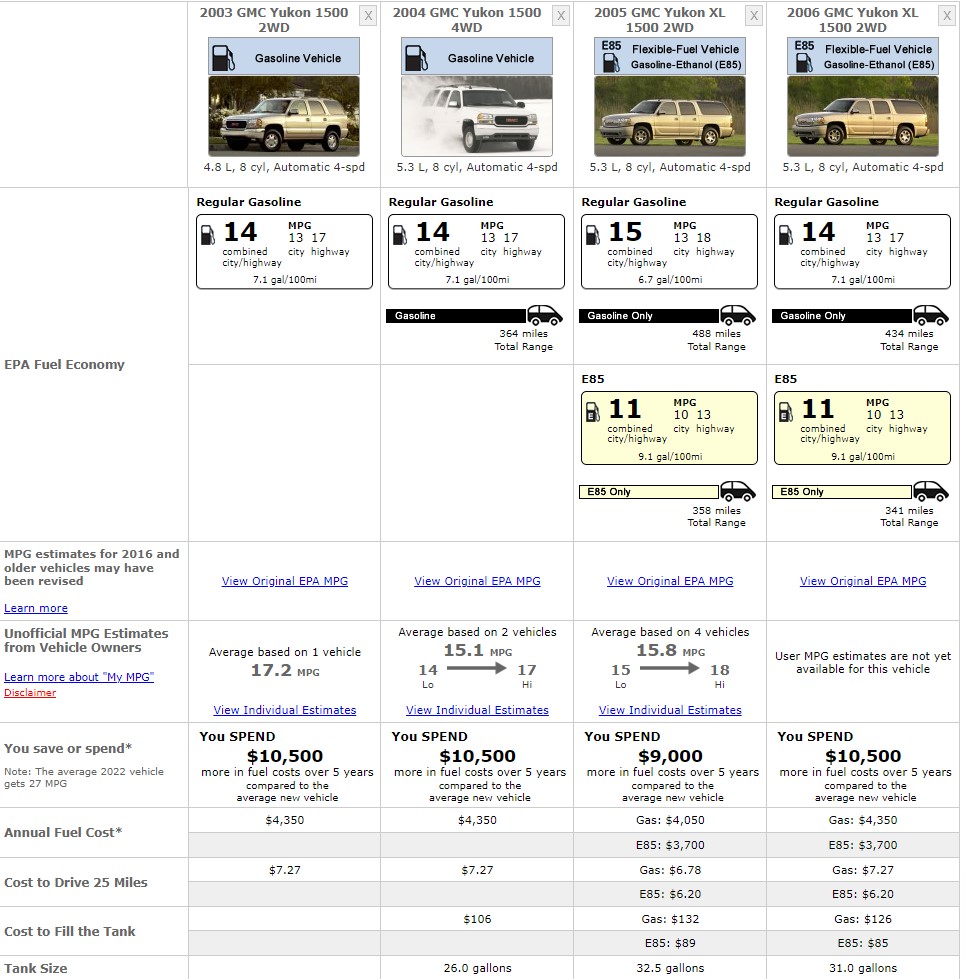

Fuel Consumption


GMC YUKON 2006 FUEL CONSUMPTION

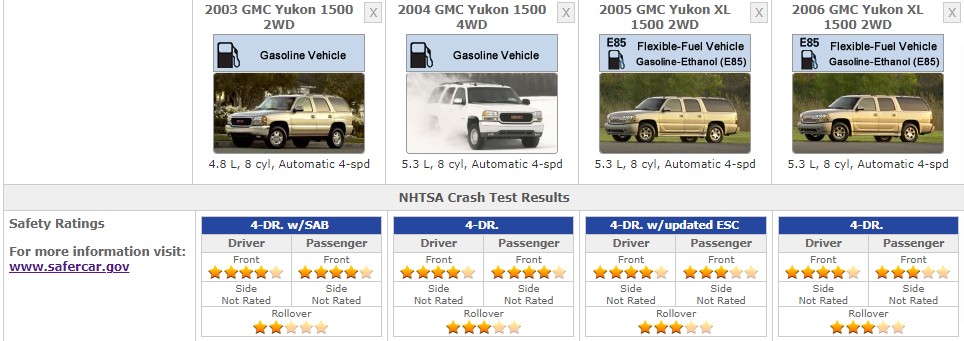

Safety Ratings


GMC 2005 YUKON SAFETY RATINGS

References


  1. 2006 GMC Yukon Owners Manual

  2. GMC Yukon- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov





Lights

Front Lights

  • Daytime Running Light Bulb

    • 3157-SCK

    • 4114K

  • Front Fog Light Bulb: 880

  • Front Sidemarker Light Bulb: 194

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3157AK

    •  3157K

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • 9006

    • 9005

Rear Lights

  • Back Up Light Bulb:

    • 3157-SCK

    • 3157K

  • Brake Light Bulb:

    • 3157-SCK

    • 3157K

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 194

  • Parking Light Bulb:

    • 3157-SCK

    • 3157AK

    • 3157K

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    • 3157K

  • Tail Light Bulb:

    • 3157-SCK

    •  3157K

  • Tailgate Light Bars: vbf-tailgate-light

Interior Lights

  • Courtesy Light Bulb:

    • 168

    • 561

    • 74

  • Dome Light Bulb:

    • 211-2

    • 578

  • Engine Compartment Light Bulb: 93

  • Glove Box Light Bulb:194

  • Instrument Panel Light Bulb:

    • PC195,

    • PC74

  • Map Light Bulb:

    • 161

    • 211-2

    • 578
