Engine 2.4L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 33 ft-lbs

  • Oil capacity: 4.4 quarts

Spark Plug Gap

  • 2.4L 4-Cylinder: 0.044''

Fuel

  • Capacity: 15.3 US gal (58.0 L)

Coolant

  • Capacity:

    • Manual: 1.90 US gal (7.2 )

    • Automatic: 1.88 US gal (7.1 )

Automatic Transmission Fluid

  • Type: Honda ATF-Z1 (Automatic Transmission Fluid) preferred, or a DEXRON III ATF as a temporary replacement
  • Capacity:

    • 4WD: 7.6 US qt (7.2 L)

    • 2WD: 6.9 US qt (6.5 L)

Manual Transmission Fluid

  • Type: Honda Manual Transmission Fluid preferred, or an SAE 10W-30 or 10W-40 motor oil as a temporary replacement
  • Capacity: 2.4 US qt (2.3 L)

Rear Differential Fluid

  • Type: Honda Dual Pump Fluid. Do not use ATF
  • Capacity: 1.1 US qt (1.0 l )

Windshield Washer Reservoir

  • Capacity:
    • US: 2.6 qt (2.5 L)

    • Canada: 4.8 qt (4.5 L)

Power Steering Fluid

  • Type: Honda Power Steering Fluid preferred, or another brand of power steering fluid as a temporary replacement. Do not use ATF

Refrigerant

  • Type: HFC-134a (R-134a)
  • Capacity: 17.0 18.7 oz (480 530 g)

Lubricant

  • Type: SP-10

Powertrain


Engine

  • Gasoline:

    • 2.0 L K20A1/A4 I4

    • 2.4 L K24A1 I4

  • Diesel:

    • 2.2 L N22A2 turbo I4

Transmission

  • 5-speed manual

  • 4-speed automatic

  • 5-speed automatic

  • 6-speed manual

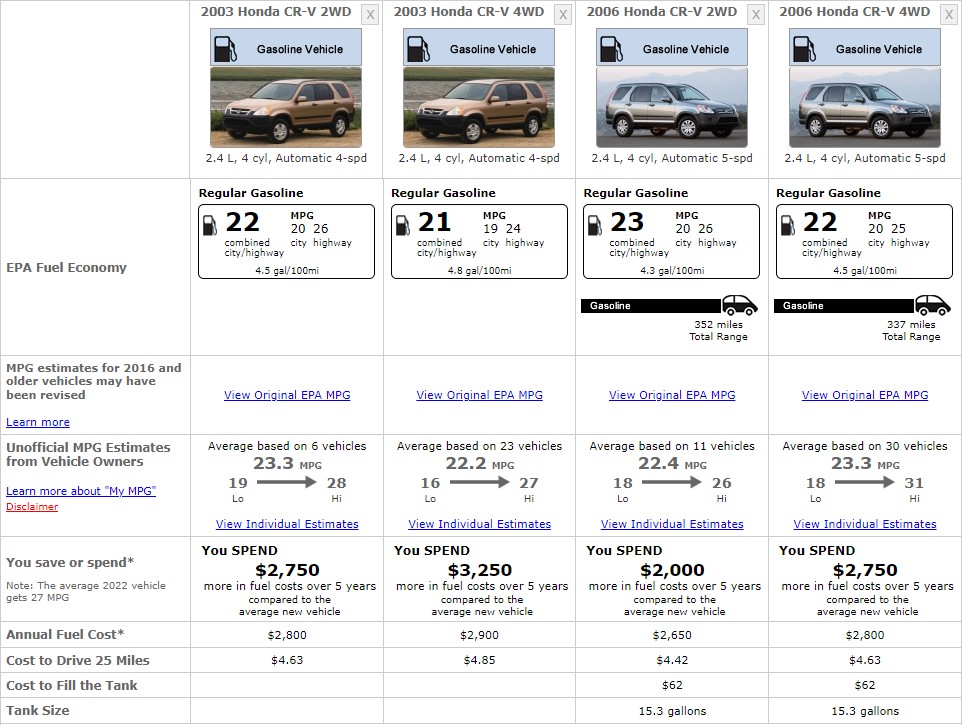

Fuel Consumption




HONDA CRV 2006 FUEL CONSUMPTION

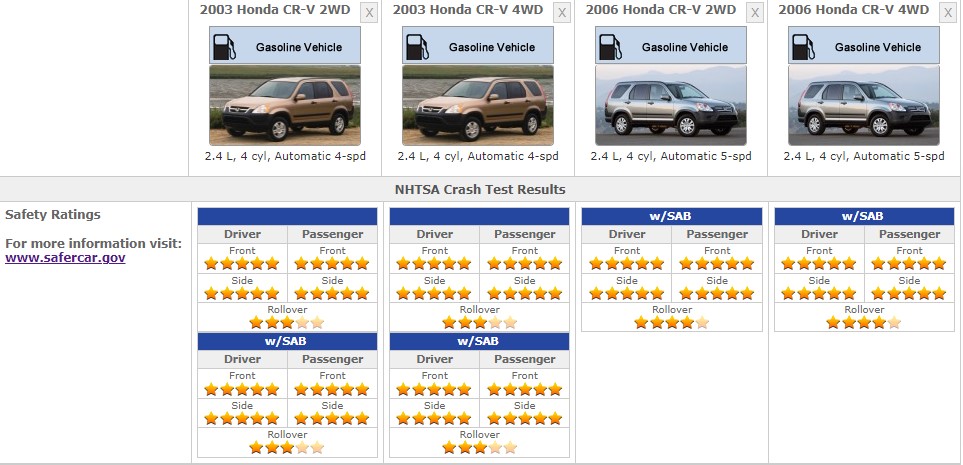

Safety Ratings




HONDA CRV 2006 SAFETY RATINGS

References


  1. 2006 Honda CRV Owners Manual

  2. Honda CRV - Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Cornering Light Bulb: 7506

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb: 7440

  • High Beam Headlight Bulb: H1-55W

  • Low Beam Headlight Bulb: H1-55W

Rear Lights

  • Back Up Light Bulb: 7440

  • Brake Light Bulb:

    • 7443-SCK

    •  7443

    •  7528

  • Center High Mount Stop Light Bulb: 7440

  • License Plate Light Bulb: 2825

  • Parking Light Bulb: 168

  • Rear Sidemarker Light Bulb: 168

  • Rear Turn Signal Light Bulb:

    • 12496

    •  7440NA

  • Tail Light Bulb:

    • 7443-SCK

    •  7443

    •  7528

Interior Lights

  • Dome Light Bulb: DE3175

  • Glove Box Light Bulb: DE3021

  • Luggage Compartment Light Bulb: DE3175

  • Map Light Bulb: 204
