Engine 1.5L 4-Cylinder SOHC

  • Recommended oil viscosity: 0W-20

  • Oil certification: API

  • Drain plug torque: 29 ft-lbs

  • Oil capacity: 3.8 quarts

Spark Plug Gap

  • 1.5L 4-Cylinder: 0.052''

Fuel

  • Capacity: 10.6 US gal (40 L)

Washer Fluid

  • Capacity:

    • U.S.: 2.6 US qt (2.5 L)

    • Canada: 5.12 US qt (4.85 L)

Brake Fluid

  • Type: Honda Heavy Duty Brake Fluid DOT 3

Automatic Transmission (CVT) Fluid

  • Type: Honda CVTF (continuously variable transmission fluid)

  • Capacity: 3.0 US qt (2.8 L)

Manual Transmission Fluid

  • Type: Honda Manual Transmission Fluid

  • Capacity: 1.5 US qt (1.4 L)

Coolant

  • Type: Honda Long-Life Antifreeze/Coolant Type2

  • Capacity: 1.16 US gal (4.4 L) (change including the remaining 0.116 US gal (0.44 L) in the reserve tank)

Powertrain


Engine

  • Honda Hybrid System

  • Gasoline: 1.5 L LEA I4 1,497 cc (91.4 cu in) SOHC 16-valve i-VTEC

  • · (CVT) – 111 hp (83 kW) @ 6000rpm

  • 106 lb⋅ft (144 N⋅m) @ 4800rpm

  • · (MT) – 112 hp (84 kW) @ 6000rpm

  • 107 lb⋅ft (145 N⋅m) @ 4800rpm

  • Electric: DC brushless motor – MF6 Model

  • 14 hp (10 kW) @ 1500 rpm

  • 58 lb⋅ft (79 N⋅m) @ 1000 rpm

Transmission

  • CVT

  • 6-speed manual

Fuel Consumption

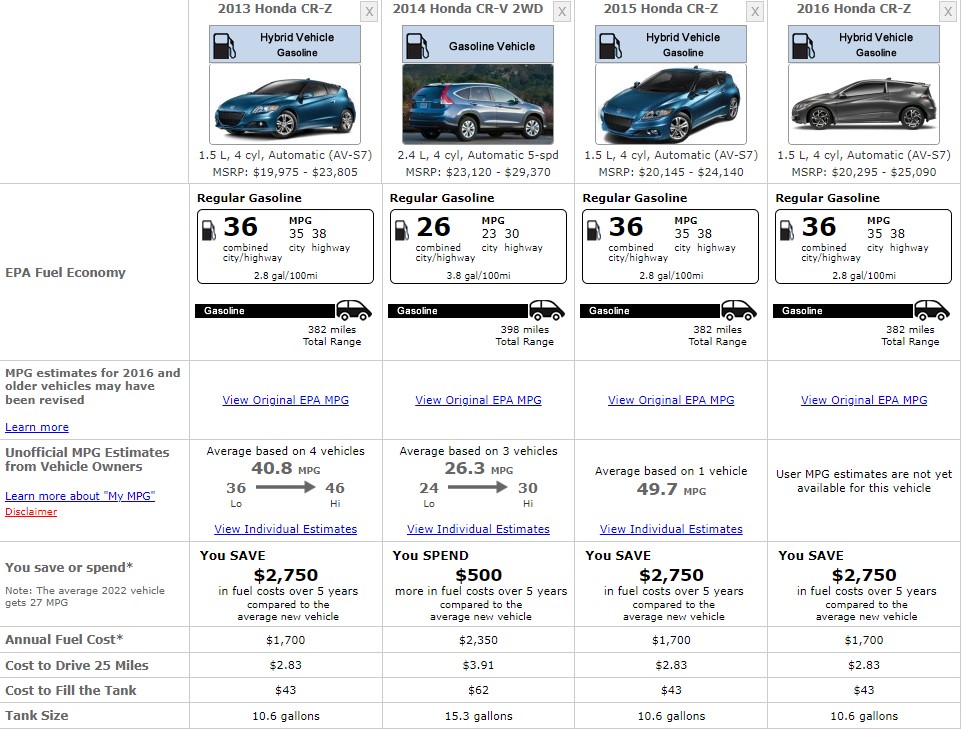

HONDA CRZ FUEL CONSUMPTION

Safety Ratings

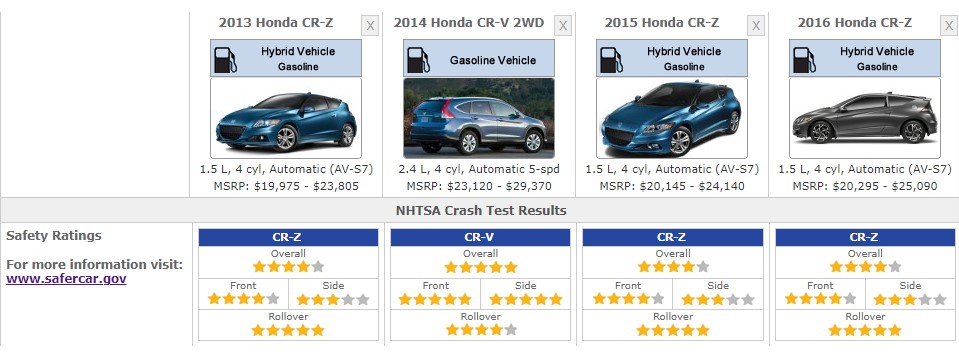

HONDA CRZ SAFETY RATINGS

References


  1. 2012 Honda CRZ Owners Manual

  2. Honda CRV- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Daytime Running Light Bulb: 9005

  • Front Fog Light Bulb: H11-55W

  • Front Sidemarker Light Bulb:

    • 7443-SCK

    •  7444NA

  • Front Turn Signal Light Bulb:

    • 7443-SCK

    • 7444NA

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • H11-55W

    •  HID-D4S

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 2825

  • Parking Light Bulb:

    • 7443-SCK

    • 7444NA

  • Rear Sidemarker Light Bulb: 168

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb: LED

Interior Lights

  • Auto Trans Indicator Light Bulb: 74

  • Dome Light Bulb: DE3175

  • Interior Door Light Bulb: 194

  • Luggage Compartment Light Bulb: 168

  • Map Light Bulb: DE3175
