Engine 1.5L 4-Cylinder SOHC

  • Recommended oil viscosity: 0W-20

  • Oil certification: API

  • Drain plug torque: 30 ft-lbs

  • Oil capacity: 4.6 quarts

Spark Plug Gap

  • 1.5L 4-Cylinder: 0.052''

Fuel

  • Capacity: 15.9 US gal (60 L)

Washer Fluid

  • Capacity:

    • U.S.: 2.6 US qt (2.5 L)

    • Canada: 4.8 US qt (4.5 L)

Brake Fluid

  • Type: Honda Heavy Duty Brake Fluid DOT 3 preferred, or a DOT 3 or DOT 4 brake fluid as a temporary replacement

Automatic transmission fluid

  • Type: Honda ATF DW-1 (automatic transmission fluid)

  • Capacity:
    • 4WD: 7.6 US qt (7.2 L)

    • 2WD:7.4 US qt (7.0 L)

Rear Differential Fluid

  • Type: Honda Dual Pump Fluid II. Do not use ATF

  • Capacity: 1.3 US qt (1.2 L)

Coolant

  • Type: Honda Long-Life Antifreeze/Coolant Type2

  • Capacity: 1.90 US gal (7.2 L)

Refrigerant

  • Type: HFC-134a (R-134a)

  • Capacity: 17.619.4 oz (500550 g)

Refrigerant Lubricant

  • Type: ND-OIL8

Power Steering Fluid

  • Type: Honda Power Steering Fluidpreferred, or another brand of power steering fluid as a temporary replacement. Do not use ATF

Powertrain


Engine

  • 2.4 L K24A4 I4 (2003–2006)

  • 2.4 L K24A8 I4 (2007–2011)

Transmission

  • 5-speed manual (2003-2010)

  • 4-speed automatic (2003-2006)

  • 5-speed automatic (2007-2011)

Fuel Consumption

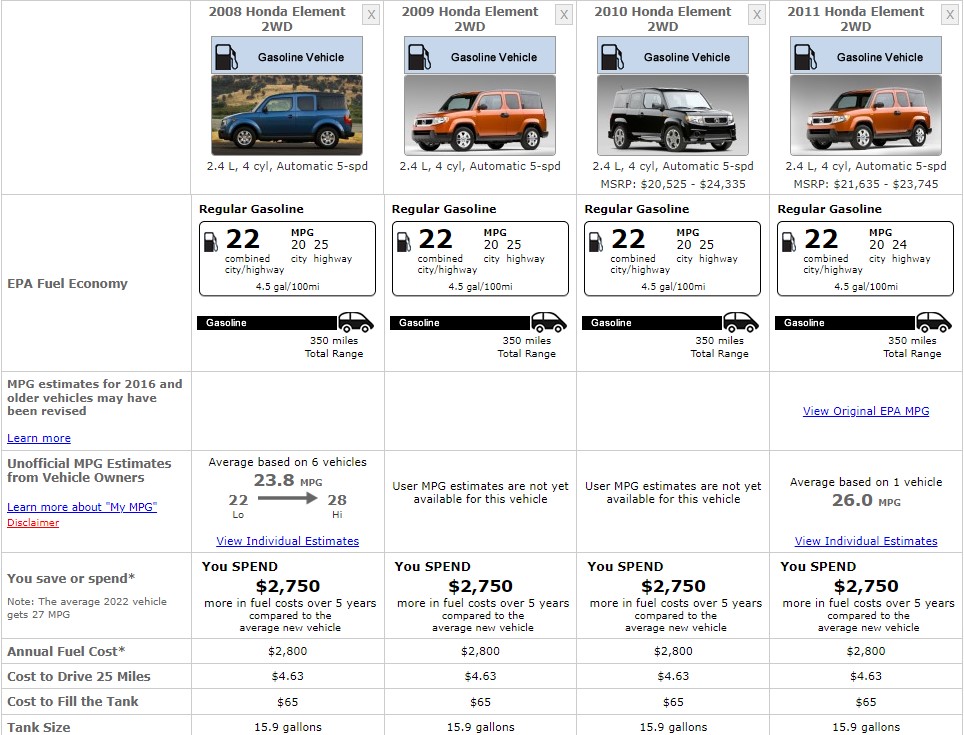

HONDA ELEMENT FUEL CONSUMPTION

Safety Ratings

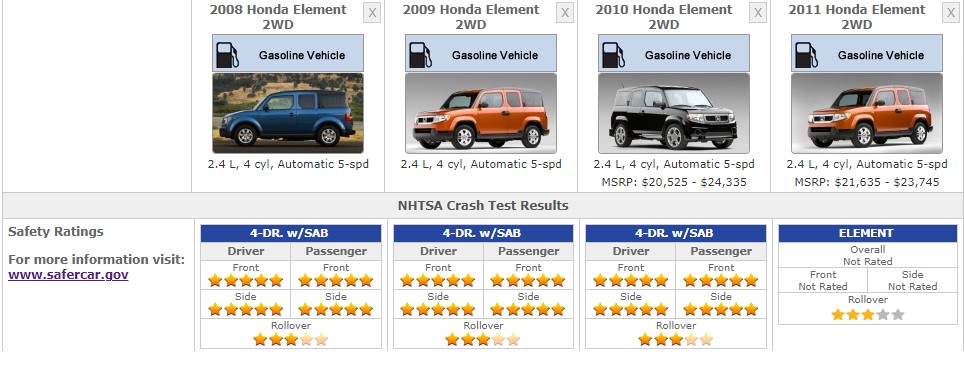

HONDA ELEMENT SAFETY RATINGS

References


  1. 2016 Honda CRV Owners Manual

  2. Honda CRV- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Daytime Running Light Bulb: 9005

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb: 1157NA

  • High Beam and Low Beam Headlight Bulb: 9003

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 7443-SCK

    •  7443

  • Center High Mount Stop Light Bulb: 7440

  • License Plate Light Bulb: 168

  • Parking Light Bulb: 1157NA

  • Rear Sidemarker Light Bulb: 168

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb:

    • 7443-SCK

    • 7443

Interior Lights

  • Auto Trans Indicator Light Bulb: 74

  • Dome Light Bulb: DE3175

  • Luggage Compartment Light Bulb: DE3175

  • Map Light Bulb: DE3175
