Engine 1.8 L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25-33ft-lbs

  • Oil capacity: 4.2 quarts

Spark Plug Gap

  • 1.8L 4-Cylinder: 0.044''

Engine 2.0 L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25-33ft-lbs

  • Oil capacity: 4.2 quarts

Spark Plug Gap

  • 1.5L 4-Cylinder: 0.044''

Fuel

  • Capacity: 12.68 US gal. (48 l)

Manual Transaxle

  • Type: API GL-4, SAE 75W/85
  • Capacity: 2.01 US qt. (1.9 l)

Automatic Transaxle

  • Type: MICHANG ATF SP-4, SK ATF SP-4 NOCA ATF SP-4, HYUNDAI genuine ATF SP-4, or other brands meeting the above specification approved by Hyundai Motor Co.,
  • Capacity: 7.71 US qt. (7.3 l)

Brake Fluid/Clutch Fluid

  • Type: FMVSS116 DOT-3 or DOT-4
  • Capacity: 0.7~0.8 US qt. (0.7~0.8 l)

Coolant

  • Type: MIXTURE, Antifreeze with water, Ethylene glycol base for aluminum radiator
  • Capacity:

    • Manual Transaxle : 6.34 US qt. (6.0 l)

    • Automatic Transaxle: 6.23 US qt. (5.9 l)

Powertrain


Engine

  • Petrol:

  • 1.6 L Gamma MPi I4

  • 1.6 L Gamma GDi I4

  • 1.8 L Nu MPi I4

  • 2.0 L Nu MPi I4

  • 2.0 L Nu GDi I4

Transmission

  • 6-speed manual

  • 6-speed automatic

Fuel Consumption

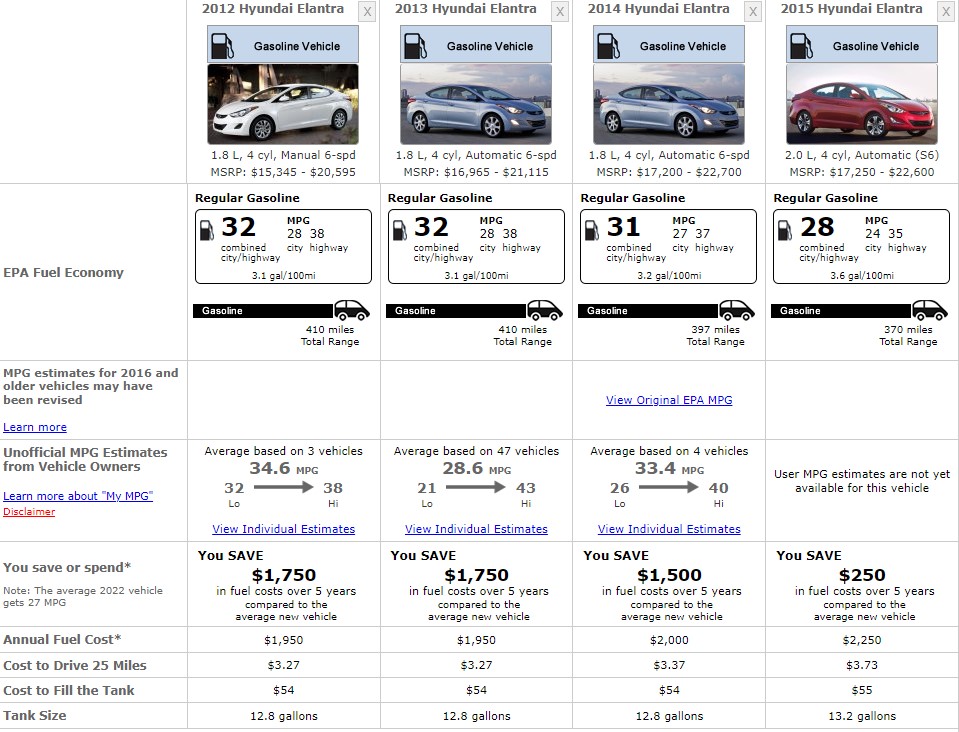

HYUNDAO ELANTRA 2011 TO 2015 FUEL CONSUMPTION

Safety Ratings

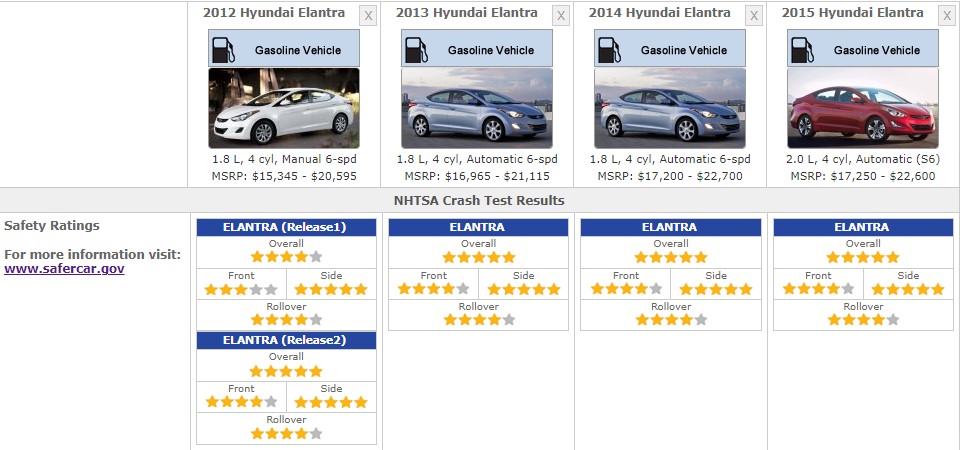

HYUNDAI ELANTRA 2015 SAFETY RATINGS

References


  1. 2015 Hyundai Elantra Owners Manual

  2. Hyundai Elantra- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Daytime Running Light Bul#: LED

  • Front Fog Light Bulb: 881

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb: 2357NA

  • High Beam Headlight Bulb: H7LL

  • Low Beam Headlight Bulb:

    • 9005L+

    • H11-55W

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • LED

    •  2357

  • Center High Mount Stop Light Bulb: 7440

  • Inner Tail Light Bulb: 168

  • License Plate Light Bulb: 168

  • Outer Tail Light Bulb: 2357

  • Parking Light Bulb: 2357NA

  • Rear Sidemarker Light Bulb:

    • LED

    •  168

  • Rear Turn Signal Light Bulb: 1156NA

  • Tail Light Bulb: LED

Interior Lights

  • Dome Light Bulb:

    • 6461

    • DE3175

  • Map Light Bulb:

    • 6461

    • DE3175

  • Trunk Light Bulb: 6418
