Engine 3.8 L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Drain Plug Torque: 25-33ft-lbs

  • Oil capacity: 7.3 quarts

Spark Plug Gap

  • 3.8L 6-Cylinder: 0.044''

Engine 5.0 L 8-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25-33ft-lbs

  • Oil capacity: 8.5 quarts

Spark Plug Gap

  • 5.0L 8-Cylinder: 0.044''

Fuel

  • Capacity: 20.34 US gal. (77 l)

Automatic Transmission Fluid

  • Type: GS ATF SP-IV-RR, HYUNDAI genuine ATF SP-IV-RR
  • Capacity:

    • Lambda 3.8: 11.09 US qt. (10.5 l)
    • Tau 5.0: 10.46 US qt. (9.9 l)

Front (AWD)/rear differential oil

  • Type: Hypoid gear oil API GL-5, SAE 75W/90 (SHELL HD AXLE OIL 75W/90 or equivalent)
  • Capacity:

    • Front (AWD) : 0.74 US qt. (0.7 l)

    • Rear: 1.48 US qt. (1.4 l)

Brake Fluid

  • Type: FMVSS116 DOT-3 or DOT-4
  • Capacity: 0.74~0.85 US qt. (0.7~0.8 l)

Coolant

  • Type: Mixture of antifreeze and water (Ethylene glycol base coolant for aluminum radiator)
  • Capacity:

    • Lambda 3.8: 8.88 US qt. (8.4 l)

    • Tau 5.0: 12.16 US qt. (11.5 l)

Transfer case oil (AWD)

  • Type: SHELL TF0870
  • Capacity: 0.65 US qt. (0.62 l)

Powertrain


Engine

  • 3.0 L Lambda II GDi V6

  • 3.3 L Lambda II GDi V6

  • 3.8 L Lambda II GDi V6

  • 5.0 L Tau GDi V8

Transmission

  •     8-speed A8LR1/A8TR1 automatic

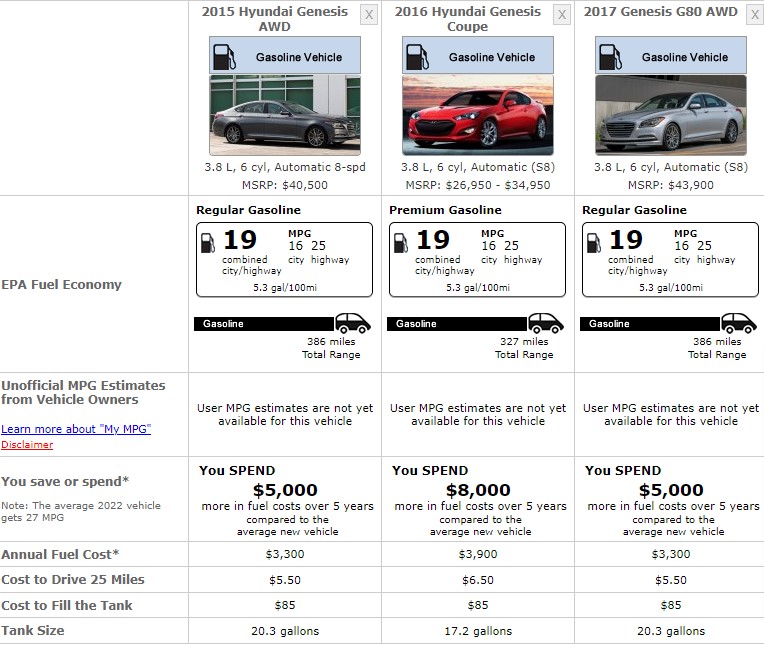

Fuel Consumption


HYUNDAI GENESIS 2015 FUEL CONSUMPTION

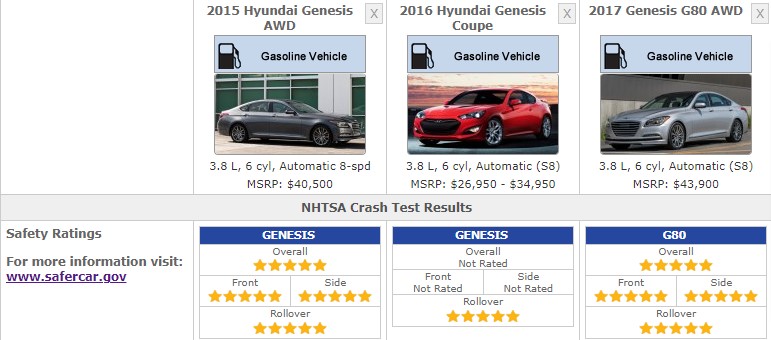

Safety Ratings


HYUNDAI GENESIS SAFETY RATINGS 2015



References


  1. 2015 Hyundai Genesis Owners Manual

  2. Hyundai Genesis- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Daytime Running Light Bulb:

    • 9005

    • LED

  • Front Fog Light Bulb: LED

  • Front Turn Signal Light Bulb:

    • 2357NA

    •  LED

  • High Beam and Low Beam Headlight Bulb: HID-D1S

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb: H11-55

Rear Lights

  • Back Up Light Bulb:

    • 921

    •  LED

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: LED

  • Parking Light Bulb: LED

  • Rear Sidemarker Light Bulb: LED

  • Rear Turn Signal Light Bulb:

    • 1156NA

    • LED

  • Tail Light Bulb: LED

Interior Lights

  • Dome Light Bulb: LED

  • Map Light Bulb: LED

  • Trunk Light Bulb: LED

  • Vanity Mirror Light Bulb: LED
