Engine 2.4 L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25-33ft-lbs

  • Oil capacity: 4.9 quarts

Spark Plug Gap

  • 2.4L 4-Cylinder: 0.044''

Engine 3.5 L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25-33ft-lbs

  • Oil capacity: 5.5 quarts

Spark Plug Gap

  • 3.5L 4-Cylinder: 0.044''

Fuel

  • Capacity: 17.96 US gal. (68 l)

Manual Transaxle Fluid

  • Type: API GL-4, SAE 75W/85
  • Capacity: 2.4 Engine: 1.90 US qt. (1.8 l)

Automatic Transaxle Fluid

  • Type: MICHANG ATF SP-IV, SK ATF SP-IV NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV or other brands meeting the above specification approved by Hyundai Motor Co.,
  • Capacity:  2.4 Engine: 7.50 US qt. (7.1 l)

Power steering

  • Type: PSF-3
  • Capacity: 1.06 US qt. (1.0 l

Brake Fluid/Clutch Fluid

  • Type: FMVSS116 DOT-3 or DOT-4
  • Capacity: 6.97 US qt. (6.6 l )

Coolant

  • Type: Ethylene glycol base for aluminum radiator
    • 2.7 V6: 7.4 qts ( 7.0 L)

    • 3.5 V6: 8.66 qts (8.2 L )

Transfer Case

  • Type: HYPOID GEAR OIL API GL-5, SAE 75W/90 (SHELL SPIRAX X or equivalent)
  • Capacity :

    • 2.4 Engine : 0.63 US qt. (0.6 l)

    • 3.5 Engine: 0.74 US qt. (0.7 l)

Rear Differential Oil (AWD)

  • Type: HYPOID GEAR OIL API GL-5, SAE 75W/90 (SHELL SPIRAX X or equivalent)
  • Capacity: 0.74 US qt. (0.7 l)

Powertrain


Engine

  • Petrol:

    • 1.5 L 4G15 I4 (China)[10]

    • 1.5 L 15S4G[10] I4 (China)

    • 2.0 L 4G94 I4 (China)[11]

    • 2.4 L Theta II I4

    • 2.7 L Mu V6

    • 3.3 L Lambda V6

    • 3.5 L Lambda II V6

  • LPG:

    • 2.7 L Mu LPi V6

  • Diesel:

    • 2.0 L D CRDI VGT I4

    • 2.0 L OED483Q I4 (China)[10]

    • 2.0 L R CRDI VGT I4

    • 2.2 L D CRDI VGT I4

    • 2.2 L R CRDI VGT I4

Transmission

  • 5-speed manual

  • 6-speed manual

  • 4-speed automatic

  • 5-speed automatic

  • 6-speed automatic

Fuel Consumption

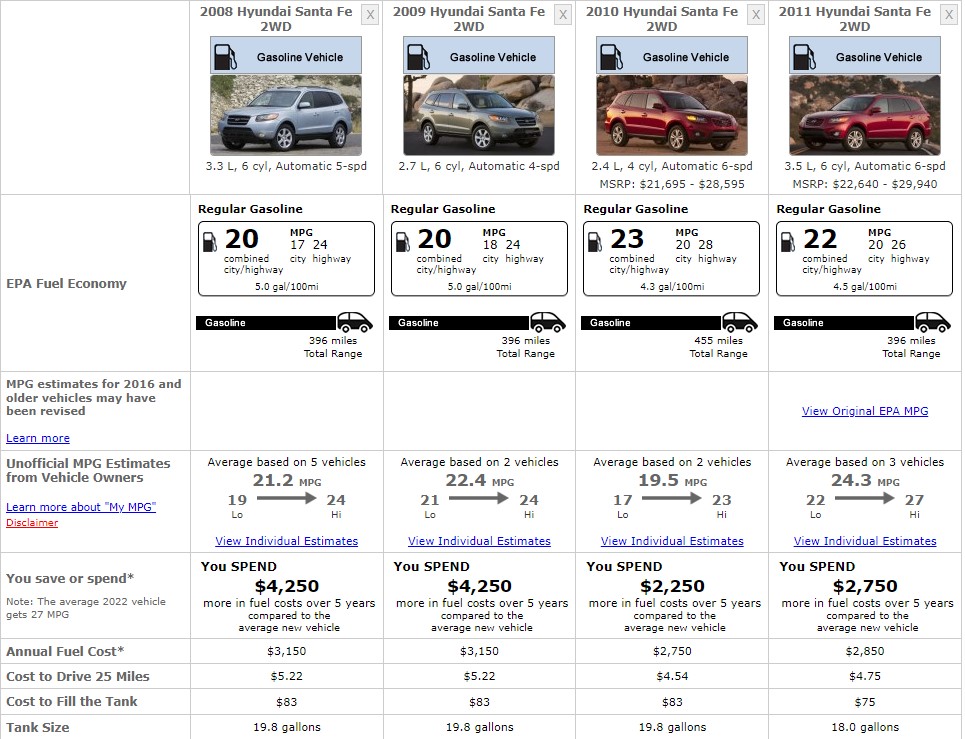

HYUNDAI SANTA FE 2011 FUEL CONSUMPTION

Safety Ratings

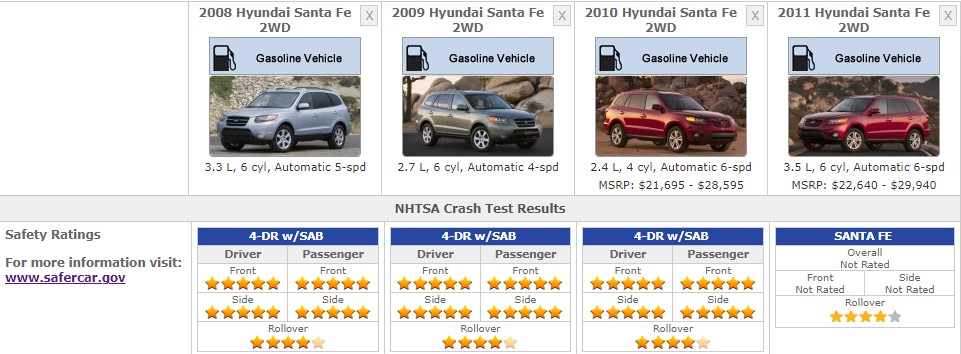

HYUNDAI 2011 SAFETY RATINGS

References


  1. 2011 Hyundai Santa Fe Owners Manual

  2. Hyundai Santa Fe- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Front Fog Light Bulb: 881

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb: 1157

  • High Beam Headlight Bulb: H7-55W

  • Low Beam Headlight Bulb: H11B

Rear Lights

  • Back Up Light Bulb: 921
  • Brake Light Bulb: 1157

  • Center High Mount Stop Light Bulb: 168

  • License Plate Light Bulb: 168

  • Parking Light Bulb: 1157

  • Rear Sidemarker Light Bulb: 168

  • Rear Turn Signal Light Bulb: 1156A

  • Tail Light Bulb: 1157

Interior Lights

  • Dome Light Bulb: 6461

  • Luggage Compartment Light Bulb: 6461

  • Map Light Bulb: 175

  • Vanity Mirror Light Bulb: DE3022
