Engine 2.4 L 4-Cylinder DOHC

  • Recommended oil viscosity: 10W-30

  • Oil certification: API

  • Drain Plug Torque: 26-32ft-lbs

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 2.4L 4-Cylinder: 0.044''

Engine 2.7 L 6-Cylinder DOHC

  • Recommended oil viscosity: 10W-30

  • Oil certification: API

  • Drain Plug Torque: 26-32ft-lbs

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 2.7L 4-Cylinder: 0.044''

Fuel

  • Capacity: 17.7us.gal (14.7 imp.gal, 67 liter)

Transaxle

  • Type:
    • Manual: HYUNDAI GENUINE PARTS MTF 75W/85 (API GL-4)

    • Automatic: HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other brands meeting the SP III specification approved by Hyundai Motor Co.

  • Capacity:

    • Manual: 2.4L: 8.24 qt (7.8 L)

    • Automatic: 3.3L: 11.52 qt  (10.9 L)

Power steering

  • Type: PSF-3 TYPE FLUID
  • Capacity: 0.95 qt (0.9 L)

Brake and clutch fluid

  • Type: DOT 3, DOT 4 or equivalent.
  • Capacity:  As required

Coolant

  • Type: Ethylene glycol base for aluminum radiator
    • Manual: 2.4L: 6.87 qt (6.5 L)

    • Automatic:

    • 2.4L : 6.66 qt (6.3 L)

    • 3.3L : 8.66 qt (8.2 L)

Transfer Case

  • Type: API GL-5, SAE 80W/90 (SHELL SPIRAX EQUIVALENT)
  • Capacity : 0.85 qt (0.8 L)

Powertrain


Engine

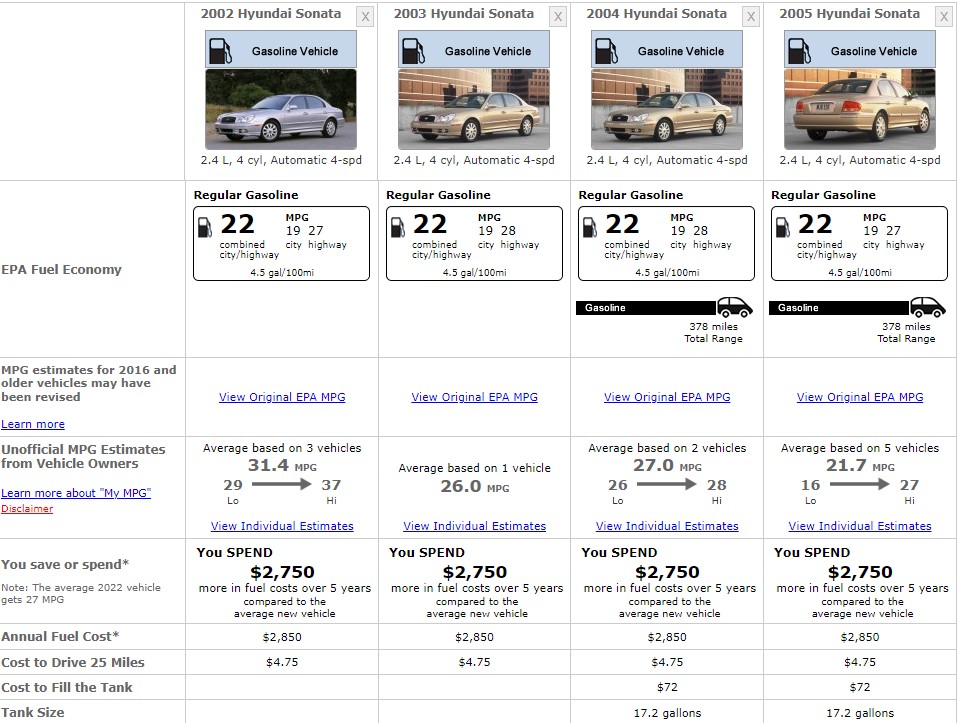

HYUNDAI SONATA 2005 FUEL CONSUMPTION

Safety Ratings

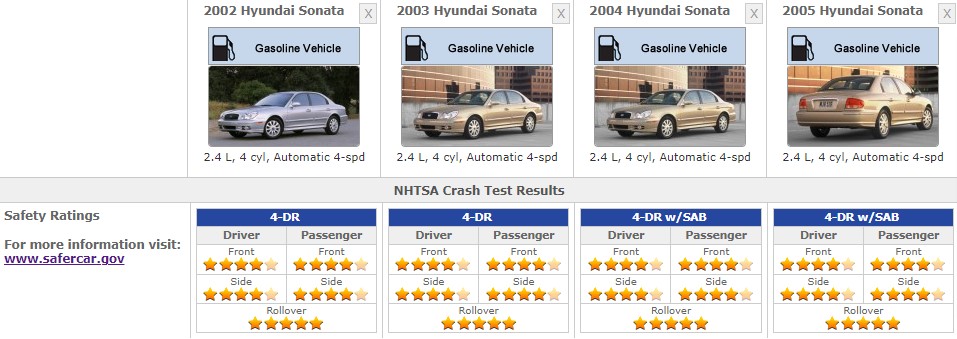

HYUNDAI SONATA 2005 SAFETY RATINGS

References


  1. 2005 Hyundai Sonata Owners Manual

  2. Hyundai Santa Fe- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Front Fog Light Bulb: 9006

  • Front Sidemarker Light Bulb: 2357NA

  • Front Turn Signal Light Bulb: 2357NA

  • High Beam Headlight Bulb: H1-55W

  • Low Beam Headlight Bulb: H7-55W

Rear Lights

  • Back Up Light Bulb: 1156

  • Brake Light Bulb: 1157

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb: 2357NA

  • Rear Sidemarker Light Bulb: 1157

  • Rear Turn Signal Light Bulb: 1156A

  • Tail Light Bulb: 1157

Interior Lights

  • Courtesy Light Bulb: 168

  • Dome Light Bulb: 47830

  • Map Light Bulb: 47830

  • Trunk Light Bulb: 6418
