Chassis

  • Type: X150

Engine 2.0L 4-Cylinder DSL

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Drain Plug Torque: 18 ft-lbs

  • Oil capacity: 6.3 quarts

Spark Plug Gap

  • 2.0L 4-Cylinder: 0.032''

Fuel tank, usable

  • Capacity:
    • XKRS vehicles: 74 liters (16.3 gallons)

    • All other vehicles: 71 liters (15.6 gallons)

    • Fill capacity (when the fuel gauge indicates empty: 65.1 liters (14.3 gallons)

    • Reserve capacity (when the fuel gauge indicates empty): 6.0 litres (1.3 gallons)

Power steering fluid

  • Type: Pentosin CHF202
  • Capacity: 33.8 (16 L)

Brake fluid

  • Type: Shell DOT4 ESL

Note: If Shell DOT4 ESL is not available, a low viscosity brake fluid meeting ISO 49225 Class 6 specification can be used. If in doubt, consult your Jaguar Dealer/Authorised Repairer

Washer fluid

  • Type: Screenwash with frost protection
  • Capacity: 6.2 liters (11 pints)

Engine coolant fluid

  • Type: 50% mixture of water and antifreeze to specification WSS M97B44 (colored orange) Extended Life Coolant

  • Capacity

    • Normally aspirated engines: 10.4 liters (18.3 pints)

    • Supercharged engines: 10.0 liters (17.6 pints)

Powertrain

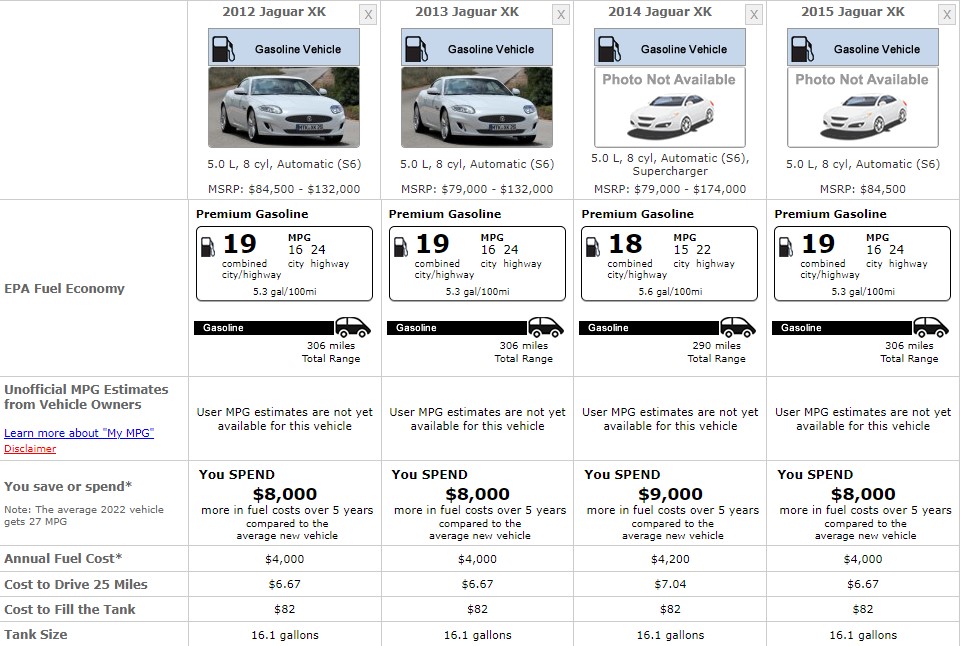

JAGUAR XK 2015 FUEL CONSUMPTION

References


  1. 2012 Jaguar XJ Owners Manual

  2.  Jaguar XJ Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Cornering Light Bulb: H8-35W

  • Front Sidemarker Light Bulb: 2825L

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3457AK

  • High Beam and Low Beam Headlight Bulb: HID-D3S

Rear Lights

  • Back Up Light Bulb: LED

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 2825

  • Parking Light Bulb: 2825

  • Rear Sidemarker Light Bulb: LED

  • Rear Turn Signal Light Bulb: LED

  • Tail Light Bulb: LED

Interior Lights

  • Courtesy Light Bulb: 2825

  • Dome Light Bulb: 6411

  • Glove Box Light Bulb: 2825

  • Trunk Light Bulb: 6418
