Chassis

  • Type: KJ

Engine 4.0L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25 ft-lbs

  • Oil capacity: 5.0 quarts

Spark Plug Gap

  • 4.0L 6-Cylinder: 0.044''

Fuel

  • Capacity: 20.5 Gallons (78 Liters)

Automatic Transmission

  • Type: Mopar ATF+4 Automatic Transmission Fluid

Transfer Case

  • Type: Mopar ATF+4 Automatic Transmission Fluid

Axle Differential (Front)

  • Type: Mopar Synthetic Gear Lubricant (SAE 75W-90) or equivalent. For trailer towing, the lubricant should be replaced with Mopar Synthetic Gear &
    Axle Lubricant (SAE 75W-140) or equivalent. Models equipped with TracLok™ require a limited-slip additive.

Axle Differential (Rear)

  • Type: Mopar Synthetic Gear Lubricant (SAE 75W-90) or equivalent. For trailer towing, the lubricant should be replaced with Mopar Synthetic Gear &  Axle Lubricant (SAE 75W-140) or equivalent. Models equipped with TracLok™ require a limited-slip additive

Brake Master Cylinder

  • Type: Mopar DOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAEJ1703 brake fluid is not available, then DOT 4 is acceptable. Use only recommended brake fluids.

Power Steering Reservoir

  • Type: Mopar ATF+4 Automatic Transmission Fluid

Coolant

  • Type: 3.7 L Engine: Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology)
  • Capacity: 14 qts (13.2 L)

Powertrain


Engine

  • 2.4 L PowerTech I4 (gasoline)

  • 2.5 L VM Motori R 425 I4 (turbo diesel)

  • 2.8 L VM Motori R 428 I4 (turbo diesel)

  • 3.7 L PowerTech V6 (gasoline)

Transmission

  • 4-speed Ultradrive 42RLE automatic

  • 4-speed Chrysler 45RFE automatic

  • 5-speed Chrysler 545RFE automatic

  • 5-speed New Venture Gear NV1500 manual

  • 5-speed New Venture Gear NV3550 manual

  • 6-speed Chrysler NSG370 manual

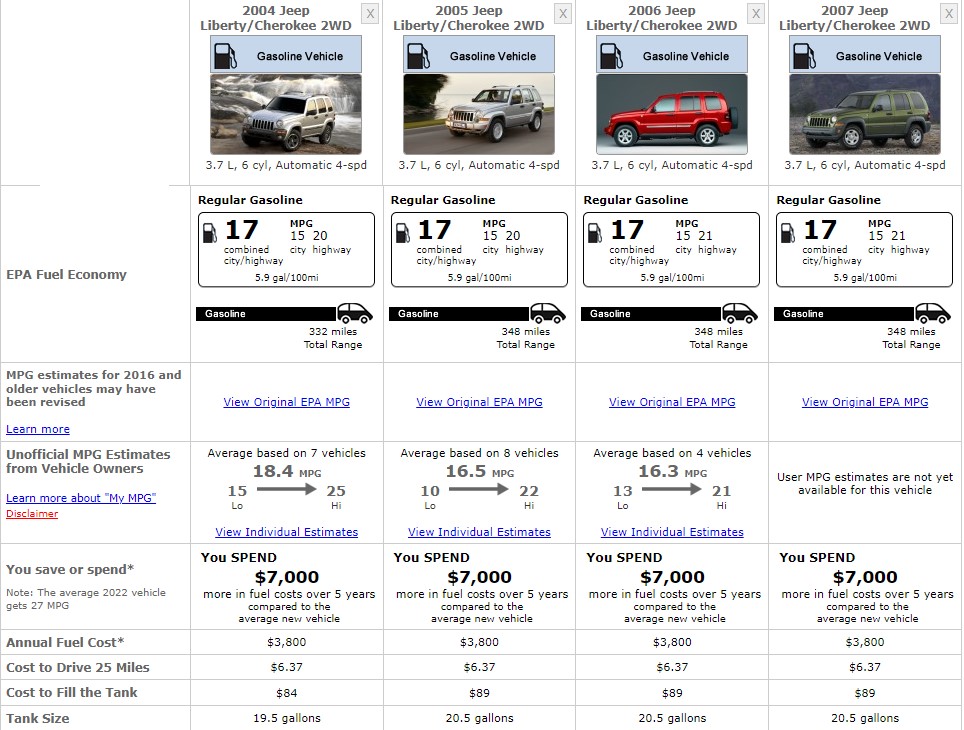

Fuel Consumption


JEEP LIBERTYU 2007 FUEL CONSUMPTION

References


  1. 2007 Jeep Cherokee Owners Manual

  2. Jeep Cherokee Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Front Fog Light Bulb: 9145

  • Front Sidemarker Light Bulb:168

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3157

  • High Beam and Low Beam Headlight Bulb: 9007LL

  • Stepwell Light Bulb: 906

Rear Lights

  • Back Up Light Bulb:

    • 3157-SCK

    •  3157

  • Brake Light Bulb:

    • 3157-SCK

    • 3157

  • Center High Mount Stop Light Bulb: 921

  • License Plate Light Bulb: 168

  • Parking Light Bulb:

    • 3157-SCK

    • 3157

    • 3157-SCK

    • 3757AK

  • Tail Light Bulb:

    • 3157-SCK

    • 3157

Interior Lights

  • Ash Tray Light Bulb: 161

  • Dome Light Bulb: 578

  • Luggage Compartment Light Bulb: 578

  • Map Light Bulb: 578
