Chassis

  • Type: KK

Engine 3.7L 6-Cylinder SOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25 ft-lbs

  • Oil capacity: 5.0 quarts

Spark Plug Gap

  • 3.7L 6-Cylinder: 0.044''

Fuel

  • Capacity: 19.5 Gallons (73.8 Liters)

Automatic Transmission

  • Type: MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product

Transfer Case

  • Type: MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensedATF+4 product.

Front Axle

  • Type: SAE 80W-90 Multi-Purpose Type, GL-5 Gear Lubricant or equivalent

Rear Axle

  • Type:SAE 75W-90 Gear Lubricant or equivalent

Brake Master Cylinder

  • Type: MOPAR DOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE J1703 brake fluid is not available, then DOT 4 is acceptable. Use only recommended brake fluids.

Power Steering Reservoir

  • Type: MOPAR Power Steering Fluid +4, MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product.

Coolant

  • Type: 3.7 L Engine: Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology)
  • Capacity: 14 qts (13.2 L)

Powertrain


Engine

  • 2.8 L VM Motori RA 428 I4 (turbo diesel)

  • 3.7 L PowerTech V6 (gasoline)

Transmission

  • 4-speed Ultradrive 42RLE automatic

  • 5-speed Mercedes-Benz W5A580 automatic

  • 6-speed Chrysler NSG370 manual

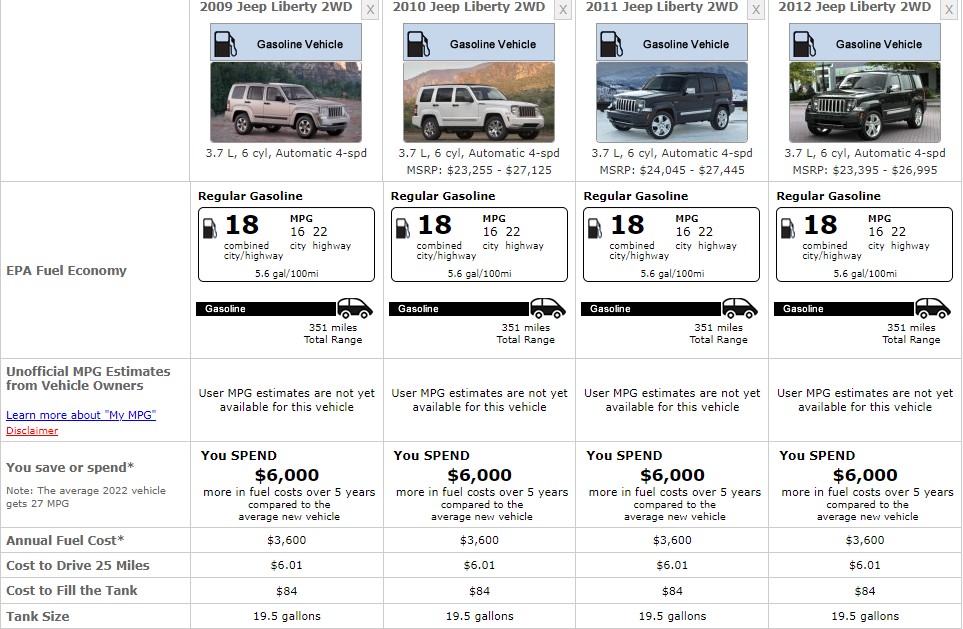

Fuel Consumption


JEEP LIBERTY 2012 FUEL CONSUMPTION

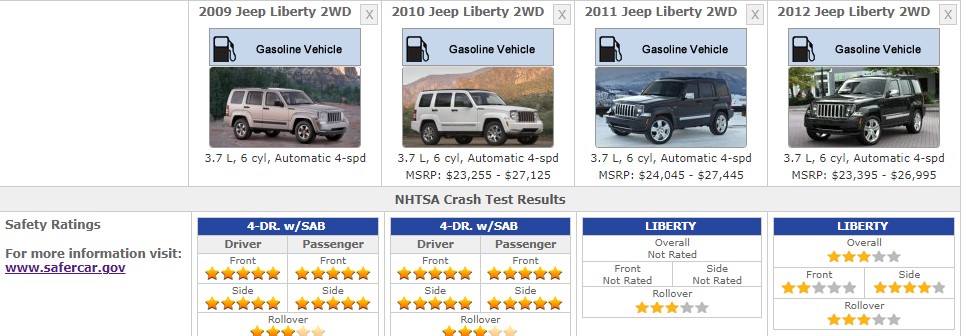

Safety Ratings


JEEP LIBERTY SAFETY RATINGS

References


  1. 2012 Jeep Liberty Owners Manual

  2. Jeep Cherokee Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Front Fog Light Bulb: 9145

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3757AK

  • High Beam and Low Beam Headlight Bulb: H13

  • Stepwell Light Bulb: 906

Rear Lights

  • Back Up Light Bulb

    • 3157-SCK,

    • 3157K

  • Brake Light Bulb

    • 3157-SCK

    •  3157K

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 2825

  • Parking Light Bulb:

    • 3157-SCK

    • 3757AK

  • Rear Sidemarker Light Bulb:

    • 3157-SCK

    • 3157K

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    • 3757AK

  • Tail Light Bulb:

    • 3157-SCK

    • 3157K

Interior Lights

  • Ash Tray Light Bulb: 161

  • Dome Light Bulb: 578

  • Luggage Compartment Light Bulb: 212-2

  • Map Light Bulb: 212-2
