Chassis

  • Type: XJ facelift

Engine 4.0L 6-Cylinder DOHC

  • Recommended oil viscosity: 10W-30

  • Oil certification: API

  • Drain Plug Torque: 25 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 4.0L 6-Cylinder: 0.035''

Fuel

  • Capacity: 20 Gallons (76 Liters)

Automatic Transmission (Gasoline Engines)

  • Type: Mopar ATF+4 Automatic Transmission Fluid

Automatic Transmission (Diesel Engines)

  • Type: Shell  3403 Automatic Transmission Fluid (P/N 52107891AA)

Transfer Case

  • Type: Quadra-Trac Models - Mopar Transfer Case Fluid (P/N 05016796)

Axle Differential (front-rear)

  • Type: Mopar Synthetic Gear Lubricant or equivalent of SAE 75W-140 (API-GL5) if equipped with a VariLok front axle. Mopar Gear Lubricant or equivalent of SAE 80W-90 (API-GL5) if not equipped with a Vari-LokT front axle. Mopar Synthetic Gear Lubricant or equivalent of SAE 75W-140 (API-GL5) if equipped with a Dana M35 or M44 Vari-LokT rear axle. Mopar Gear Lubricant or equivalent of SAE 80W-90 (API-GL5) if equipped with a Dana M44 rear axle without Vari-Lok. For trailer towing applications, use a SAE 75W-140 Synthetic Gear Lubricant in rear axle. Vari-LoT equipped axles require a friction modifier additive.

Brake Master Cylinder

  • Type: Mopar Brake Fluid DOT 3 Motor Vehicle. If Mopar brake fluid conforming to SAE J1703 standards is not available, then DOT 4 or DOT 4+ brake fluid is acceptable.

Power Steering Reservoir

  • Type: Mopar Power Steering Fluid

Ball Joints, Prop Shafts, U-Joints, Yokes, & Wheel Bearings

  • Type: Mopar Multi-Purpose Lube NLGI Grade 2 EP, GC-LB

Brake fluid

  • Type: Jaguar Super DOT 4 (ESA–M6C25–A)

Coolant

  • Type: Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology)
  • Capacity:

    • 4.0 Liter Engine: 15 Qts (14 Liters)
    • 4.7 & 4.7HO Liter Engine: 14.5 Qts (13.7 Liters)

    • 2.7L Diesel Engine: 15 Qts: (14 Liters)

Powertrain


Engine

  • gasoline:

    • 2.5 L (150 cu in) AMC I4

    • 2.8 L (173 cu in) GM LR2 V6

    • 4.0 L (242 cu in) AMC/PowerTech I6

  • diesel:

    • 2.1 L (126 cu in) Renault J8S TD I4

    • 2.5 L (153 cu in) VM Motori 425 OHV TD I4

  • China (gasoline)

    • 2.0 L Geely 4G20 I4 (BAW Qishi)

    • 2.4 L 4G64 I4 (Beijing Jeep 2500)

    • 2.4 L Geely 4G22 I4 (BAW Qishi)

    • 2.5 L C498QA I4 (Beijing BJ2021/BJ7250/2500)

    • 2.7 L C498QA3 I4 (Beijing Jeep 2700)

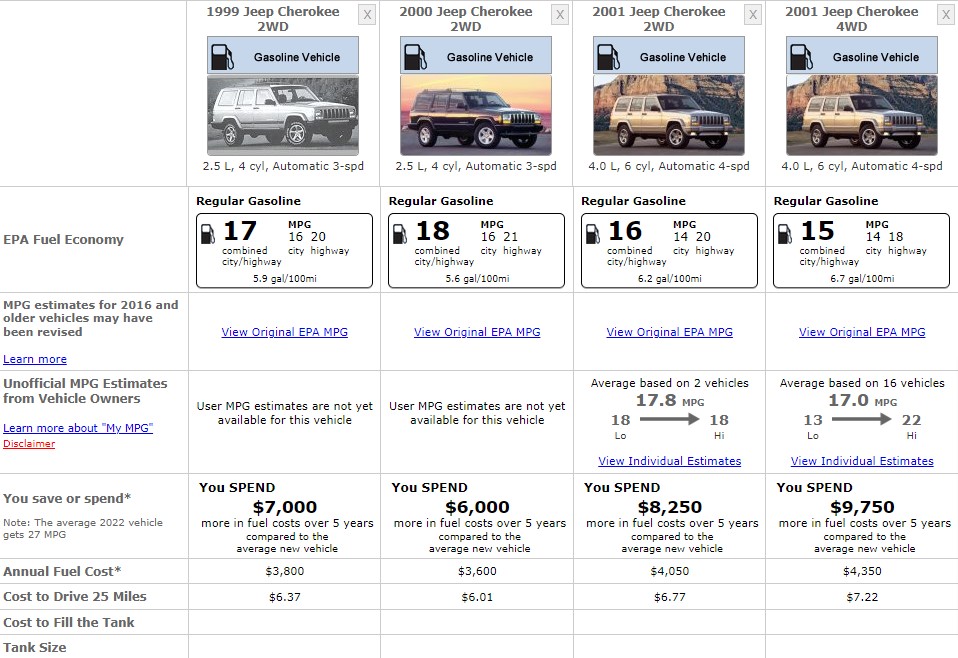

Fuel Consumption


JEEP CHEROKEE FUEL CONSUMPTION

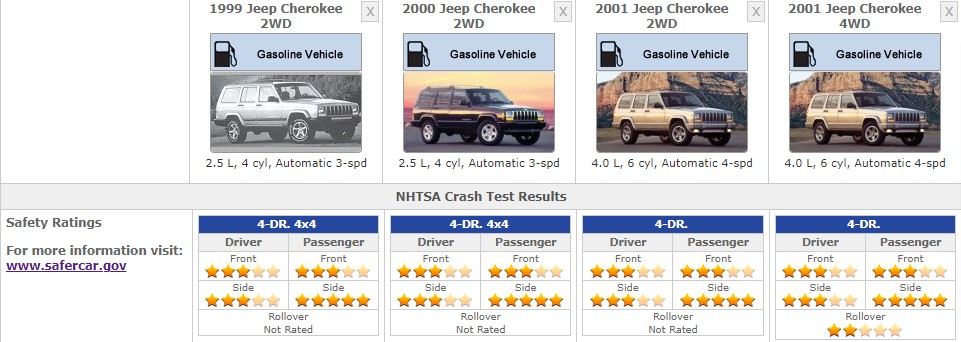

Safety Ratings


JEEP CHEROKEE 2001 SAFETY RATINGS

References


  1. 2001 Jeep Cherokee Owners Manual

  2. Jeep Cherokee Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  •  Front Fog Light Bulb: H3-55W

  • Front Sidemarker Light Bulb: 194

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    •  3157

  • High Beam and Low Beam Headlight Bulb: H6054

Rear Lights

  • Back Up Light Bulb:

    • 3157-SCK

    •  3157

  • Brake Light Bulb:

    • 3157-SCK

    • 3157

  • Center High Mount Stop Light Bulb: 922

  • License Plate Light Bulb: 168

  • Parking Light Bulb:

    • 3157-SCK

    •  3157

  • Rear Sidemarker Light Bulb: 194

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    • 3157

  • Tail Light Bulb:

    • 3157-SCK

    • 3157

Interior Lights

  • Ash Tray Light Bulb: 1891

  • Auto Trans Indicator Light Bulb: 658

  • Courtesy Light Bulb:

    • 168

    • 906

  • Dome Light Bulb: 561

  • Engine Compartment Light Bulb: 561

  • Glove Box Light Bulb: 194

  • High Beam Indicator Light Bulb: PC194

  • Instrument Panel Light Bulb:

    • 53

    • 658

    • 74

    • PC194

  • Luggage Compartment Light Bulb: 561

  • Map Light Bulb:

    • 561

    • 906

    • 912

  • Turn Signal Indicator Light Bulb: PC194
