Engine 3.7L 6-Cylinder SOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25 ft-lbs

  • Oil capacity: 5.0 quarts

Spark Plug Gap

  • 3.7L 6-Cylinder: 0.044''

Fuel

  • Capacity:
    • 3.7/4.7/5.7L Gasoline Engines: 21 Gallons (79 Liters)

    • 3.0L Diesel Engine: 22 Gallons (83 Liters)

Automatic Transmission

  • Type: Mopar ATF+4 Automatic Transmission Fluid

Transfer Case (3.7L Engine Only)

  • Type: Mopar ATF+4 Automatic Transmission Fluid

Transfer Case

  • Type: Mopar NV 247/245 Transfer Case Lubricant

Axle Differential (Front-Rear)

  • Type: Mopar Synthetic Gear & Axle Lubricant SAE 75W-140 (API-GL5) or equivalent with friction modifier additive

Brake Master Cylinder

  • Type: Mopar DOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE J1703 brake fluid is not available, then DOT 4 is acceptable. Use only recommended brake fluids

Power Steering Reservoir

  • Type: This system requires the use of Mopar Hydraulic System Power Steering Fluid (P/N 05142893AA) or equivalent, which meets DaimlerChrysler Material Standard MS-10838

Coolant

  • Type: Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology)


  • Capacity

    • 3.7 Liter Engine: 9 Qts (10 Liters)

    • 4.7 Liter Engine: 14.5 Qts (13.7 Liters)

    • 5.7 Liter Engine: 14.5 Qts (13.7 Liters)

    • 3.0 Liter Diesel Engine: 14 Qts (13.2 Liters)

Powertrain


Engine

  • 2.4 L PowerTech I4 (gasoline)

  • 2.5 L VM Motori R 425 I4 (turbo diesel)

  • 2.8 L VM Motori R 428 I4 (turbo diesel)

  • 3.7 L PowerTech V6 (gasoline)

Transmission

  • 4-speed Ultradrive 42RLE automatic

  • 4-speed Chrysler 45RFE automatic

  • 5-speed Chrysler 545RFE automatic

  • 5-speed New Venture Gear NV1500 manual

  • 5-speed New Venture Gear NV3550 manual

  • 6-speed Chrysler NSG370 manual

Fuel Consumption

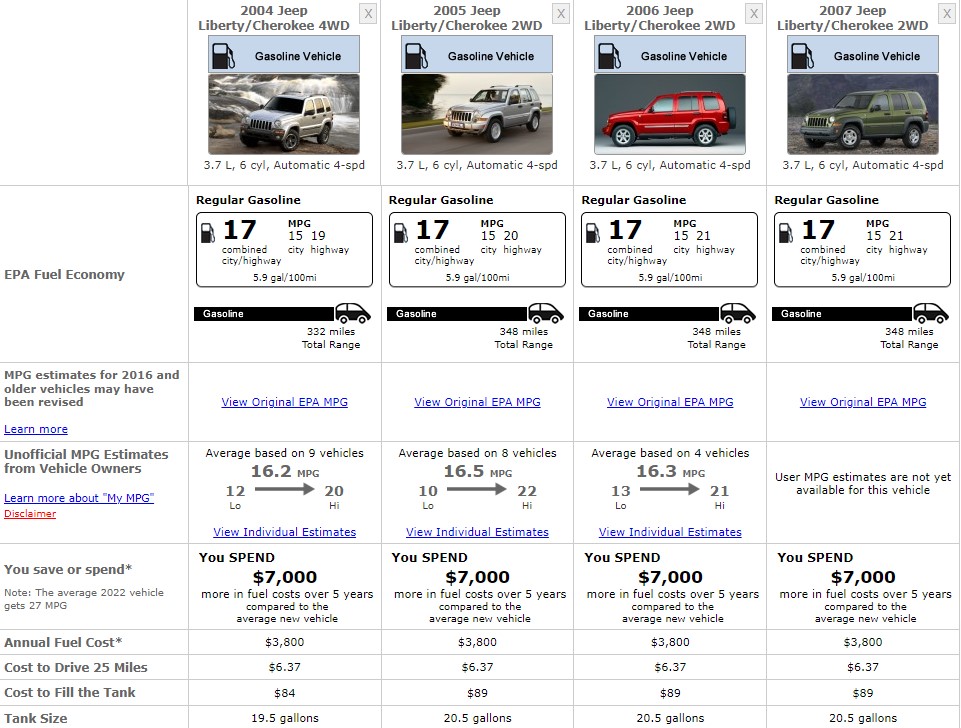

JEEP CHEROKEE FUEL COMPOSITION

Safety Ratings


JEEP CHEROKEE SAFETY RATINGS

References


  1. 2007 Jeep Cherokee Owners Manual

  2. Jeep Cherokee Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Front Fog Light Bulb: 9145

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3157

  • High Beam and Low Beam Headlight Bulb: 9007LL

  • Stepwell Light Bulb: 906

Rear Lights

  • Back Up Light Bulb

    • 3157-SCK

    • 3157

  • Brake Light Bulb:

    • 3157-SCK

    • 3157

  • Center High Mount Stop Light Bulb: 921

  • License Plate Light Bulb: 168

  • Parking Light Bulb

    • 3157-SCK

    •  3157

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    • 3757AK

  • Tail Light Bulb

    • 3157-SCK

    •  3157

Interior Lights

  • Ash Tray Light Bulb: 161

  • Dome Light Bulb: 578

  • Luggage Compartment Light Bulb: 578

  • Map Light Bulb: 578
