Chassis

  • Type: XK

Engine 3.7L 6-Cylinder SOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25 ft-lbs

  • Oil capacity: 5.0 quarts

Spark Plug Gap

  • 3.7 6-Cylinder: 0.044''

Engine 5.7L 8-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 25 ft-lbs

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 5.7L 8-Cylinder: 0.044''

Fuel

  • Capacity: 21 Gallons (79 Liters)

Automatic Transmission

  • Type: Mopar ATF+4 Automatic Transmission Fluid

Transfer Case (NV140 Single Speed Only)

  • Type: MOPAR ATF+4 Automatic Transmission Fluid or equivalent

Transfer Case (NV245 Two Speed Only)

  • Type: MOPAR NV 247/245 Transfer Case Lubricant or equivalent

Axle Differential (Front-Rear)

  • Type: MOPAR Synthetic Gear & Axle Lubricant SAE 75W-140 (API-GL5) or equivalent with friction modifier additive

Brake Master Cylinder

  • Type: MOPAR DOT 3 Brake Fluid, SAE J1703 should be used. If DOT 3, SAE J1703 brake fluid is not available, then DOT 4 is acceptable. Use only recommended brake fluids

Power Steering Reservoir

  • Type: This system requires the use of MOPAR Hydraulic System Power Steering Fluid or equivalent, which meets Chrysler Material Standard MS-
    10838.

Coolant

  • Type:
    • 3.7 L Engine — Without Rear Heat: Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology)

    • 3.7 L Engine— With Rear Heat: Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology)

    • 5.7 Liter Engine — Without Rear Heat: MOPAR Engine Coolant/Antifreeze 5 Year/100,000 Mile Formula or equivalent
    • 5.7 Liter Engine — With Rear Heat: MOPAR Engine Coolant/Antifreeze 5 Year/100,000 Mile Formula or equivalent

  • Capacity:

    • 3.7 L Engine — Without Rear Heat12.7 Quarts (11.8 Liters)

    • 3.7 L Engine— With Rear Heat14 Quarts (13.2 Liters)

    • 5.7 Liter Engine — Without Rear Heat: 15.2 Quarts (14.4 Liters)

    • 5.7 Liter Engine — With Rear Heat: 16.7 Quarts (15.8 Liters)

Powertrain


Engine

  • 3.0 L OM642 V6 (turbocharged diesel)

  • 3.7 L PowerTech V6 (gasoline)

  • 4.7 L PowerTech V8 (gasoline / E85)

  • 5.7 L Hemi V8 (gasoline)

Transmission

  • 5-speed W5A580 automatic

  • 5-speed 545RFE automatic

Fuel Consumption

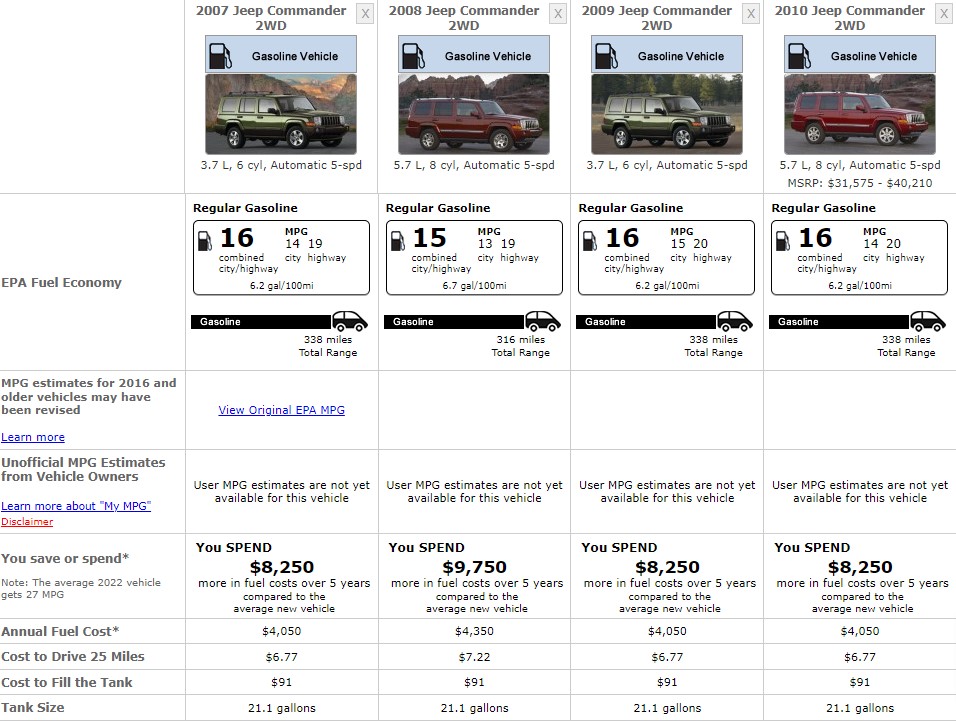

JEEP COMMANDERE FUEL CONSUMPTION

Safety Ratings


JEEP COMMANDER SAFETY RATINGS

References


  1. 2010 Jeep Commander Owners Manual

  2. Jeep Commander  Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTSA.gov

Lights

Front Lights

  • Front Fog Light Bulb: 9145

  • Front Sidemarker Light Bulb: 194

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    •  3157K

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • 9006

    • HID-D1S

  • Stepwell Light Bulb: 906

Rear Lights

  • Back Up Light Bulb:

    • 3157-SCK

    •  3057K

  • Brake Light Bulb:

    • 3157-SCK

    • 3057K

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb:

    • 3157-SCK

    • 3157K

  • Rear Sidemarker Light Bulb: 194

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    •  3057K

  • Tail Light Bulb:

    • 3157-SCK

    • 3057K

Interior Lights

  • Courtesy Light Bulb: 2825

  • Dome Light Bulb: 2825

  • Glove Box Light Bulb: 194

  • Luggage Compartment Light Bulb: 579

  • Map Light Bulb: 2825
