Guide on how to check the steering wheel angle sensor on a Mercedes-Benz. This procedure can also be used on other vehicle models.

Table of Contents

To determine your steering wheel's angle, you will need a full system diagnostic scanner

Check Steering Wheel Angle Sensor

Method 1: Using the Screen of the Backup Camera

This method does not give you the angle in degrees. If you need the angle in degrees see method two.

  1. Insert the key into the ignition switch and turn it to the on position.Turning the key into the on position.



  2. Turn the steering wheel and set it to the center or straight position.
  3. Set the gear shift to the reverse position.Shifting the gear to the reverse position.



Look on the screen of the backup camera, and if the vehicle's wheel is in a straight position and the lines on the screen of the backup camera are curved, then there's a problem with the vehicle's steering wheel angle sensor or clock spring.

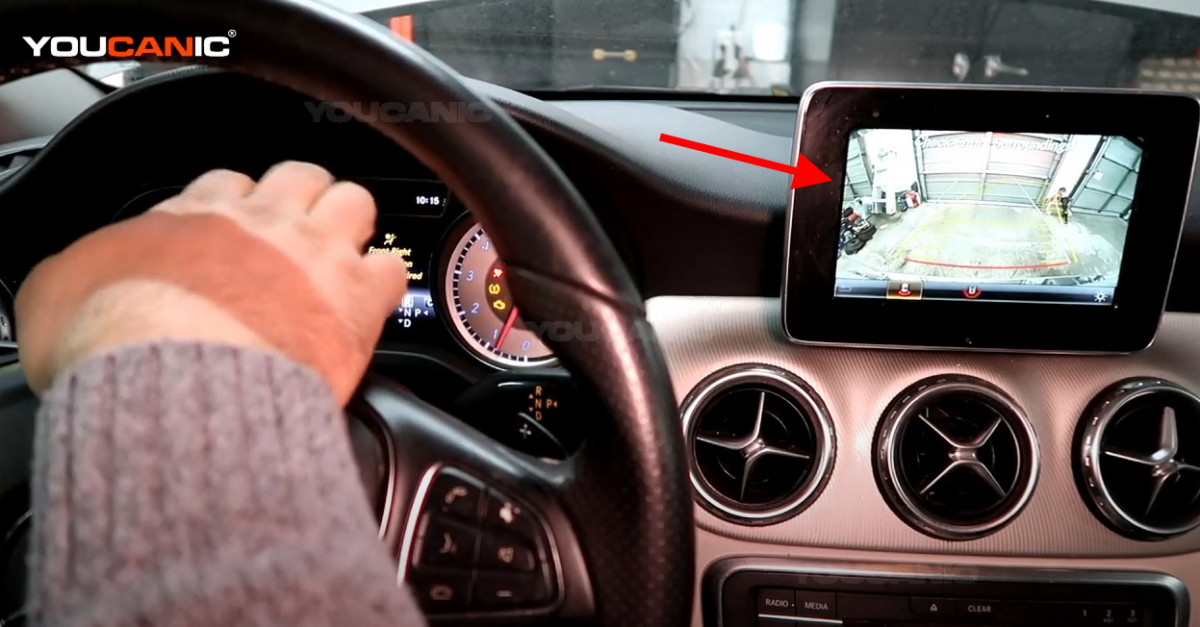

Checking the lines on the screen of the backup camera.

Method 2: Using a Full System Scanner

To get the exact steering wheel angle in degrees, you will need a full system diagnostic scanner

  1. Connect the Full System Scanner to the Vehicle.Connecting the Full System Scanner to the Vehicle.



  2. Go to the Electronic Power Steering menu on the scanner.Going to the Electronic Power Steering Menu on the Scanner.



  3. Press Read Data Stream and select Steering Angle on the scanner.Pressing Read Data Stream on the Scanner.



    Selecting the Steering Angle on the Scanner.
  4. Turn the steering wheel to the right or the left and check the values shown on the scanner. If the value on the scanner exceeds more than 720°, then there's a problem with the vehicle's steering wheel angle sensor or clock spring.Checking the values of the steering angle on the scanner.



If you can not find the steering angle setting in the power steering module, check the ABS control module or stability control option. Usually, you can also see the steering angle in degrees under these modules by displaying live data.
