Engine 4.7L 8-Cylinder DOHC

  • Recommended oil viscosity: 5W-30

  • Oil certification: API

  • Drain Plug Torque:  29FT-LBS

  • Oil capacity: 7.0 quarts

Spark Plug Gap

  • 4.7L 8-Cylinder: 0.044''

Fuel

  • Capacity: 24.5 gal. (93 L, 20.4 Imp.gal.)

Transfer

  • Type:  Hypoid gear oil API GL-4 or GL-5
  • Capacity: 1.4 qt. (1.3 L, 1.1 lmp.qt.)

Coolant

  • Type: Use either of the following:

    • “Toyota Super Long Life Coolant”

    • Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology Do not use plain water alone.

  • Capacity: 17.1 qt. (16.2 L, 14.3 Imp.qt.)

Automatic transmission

  • Type: Toyota Genuine ATF WS
  • Capacity:

    • 2WD models: 10.3 L (10.9 qt., 9.1 Imp. qt.)

    • AWD models: 10.7 L (11.3 qt., 9.4 Imp. qt.)

Front differential

  • Type:  Toyota Genuine Differential Gear Oil LT 75W-85 GL-5 or equivalent
  • Capacity: 2.01 qt. (1.90 L, 1.67 Imp.qt.)

Rear differential

  • Type:  Toyota Genuine Differential Gear Oil LT 75W-85 GL-5 or equivalent
  • Capacity: 4.44 qt. (4.20 L, 3.70 Imp.qt.)

Automatic transmission

  • Type: Toyota Genuine ATF WS
  • Capacity: 10.7 qt. (10.1 L, 8.9 Imp.qt.)

Brake Fluid

  • Type: SAE J1703 or FMVSS No.116 DOT 3 or SAE J1704 or FMVSS No.116 DOT 4

Steering

  • Type: Automatic transmission fluid DEXRON® II or III

Suspension

  • Type: Suspension fluid AHC

Chassis lubrication

  • Type:
    • Wheel bearings: Lithium base wheel bearing grease, NLGI No.0
    • Steering knuckles: Molybdenum-disulfide lithium base chassis grease, NLGI No.2

Propeller shafts

  • Type:
    • Spider: Lithium base chassis grease, NLGI No.2
    • Slide yoke: Molybdenum-disulfide lithium base chassis grease, NLGI No.2 or lithium base chassis  grease, NLGI No.2

Suspension

  • Type: Suspension fluid AHC

Powertrain


Engine

  • Gasoline:
    • 4.7 L 2UZ-FE V8 (LX 470; UZJ100)

Transmission

  • 4-speed A343F automatic 5-speed A750F automatic

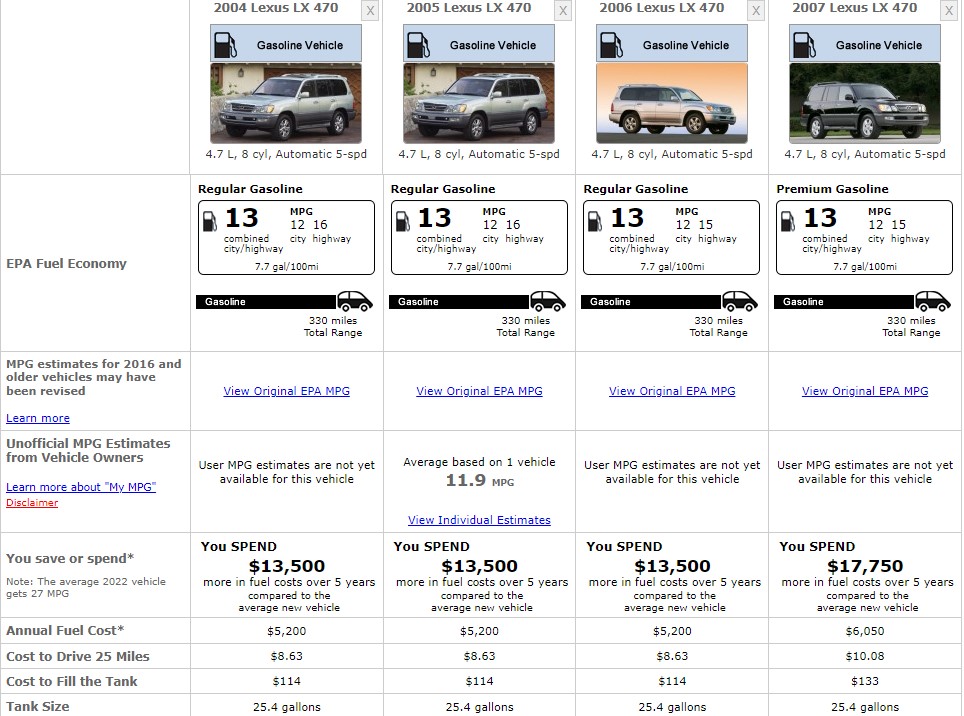

Fuel Consumption

LEXUS LX FUEL CPNSUMPTION

References


  1. 2007 Lexus LX Owners Manual

  2. Lexus LX- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSAv



Lights

Front Lights

  • Front Fog Light Bulb: H3-55W
  • Front Sidemarker Light Bulb: 168
  • Front Turn Signal Light Bulb: 12496
  • High Beam Headlight Bulb 9005
  • Low Beam Headlight Bulb: H1-55W

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 7443-SCK

    • 7443

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb: 168

  • Rear Sidemarker Light Bulb: `​​​​​​7443-SCK7443

Rear Turn Signal Light Bulb: 7440

  • Tail Light Bulb: 7443-SCK, 7443

Interior Lights

  • Ash Tray Light Bulb: 74
  • Dome Light Bulb: DE3175
  • Glove Box Light Bulb: 74
  • Interior Door Light Bulb: 194
  • Luggage Compartment Light Bulb: DE3175
