Engine 2.3L 4-Cylinder DOHC

  • Recommended oil viscosity: 0W-20

  • Oil certification: API

  • Drain Plug Torque: 23-30FT-LBS

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 2.3L 4-Cylinder: 0.044''

Engine 2.5L 4-Cylinder DOHC

  • Recommended oil viscosity: 0W-30

  • Oil certification: API

  • Drain Plug Torque: 23-30FT-LBS

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 2.5L 4-Cylinder: 0.027''

Fuel

  • Capacity:

    • 2.3-liter engine69.0 L (18.2 US gal, 15.2 Imp gal)

    • 2.5-liter engine62.0 L (16.4 US gal, 13.6 Imp gal)

Coolant

  • Type: FL-22 type

  • Capacity: 9.0 L (9.5 US qt, 7.9 Imp qt)

Manual transaxle oil

  • Type:

    • API Service: GL-4

    • SAE: 75W-80

  • Capacity: 1.65 L (1.74 US qt, 1.45 Imp qt)

Automatic transaxle fluid

  • Type: Mazda Genuine ATF-FZ

  • Capacity:

    • 5-speed transaxle: 8.14 L (8.60 US qt, 7.16 Imp qt)

    • 6-speed transaxle: 7.0 L (7.4 US qt, 6.2 Imp qt)

Transfer case oil

  • Type: Mazda Long Life Hypoid Gear Oil SG1

  • Capacity: 1.2 L (1.3 US qt, 1.1 Imp qt)

Rear differential oil

  • Type: Mazda Long Life Hypoid Gear Oil SG1

  • Capacity: 1.0 L (1.1 US qt, 0.9 Imp qt)

Brake fluid

  • Type: SAE J1703 or FMVSS116 DOT-3

Powertrain


Engine

  • 2.3 L MZR L3-VDT DISI turbo I4 (gasoline)

  • 2.5 L MZR L5-VE I4 (gasoline)

  • 2.2 L MZR-CD I4 (diesel)

Transmission

  • 6-speed F21 automatic

  • 5-speed automatic

  • 6-speed manual

Fuel Consumption

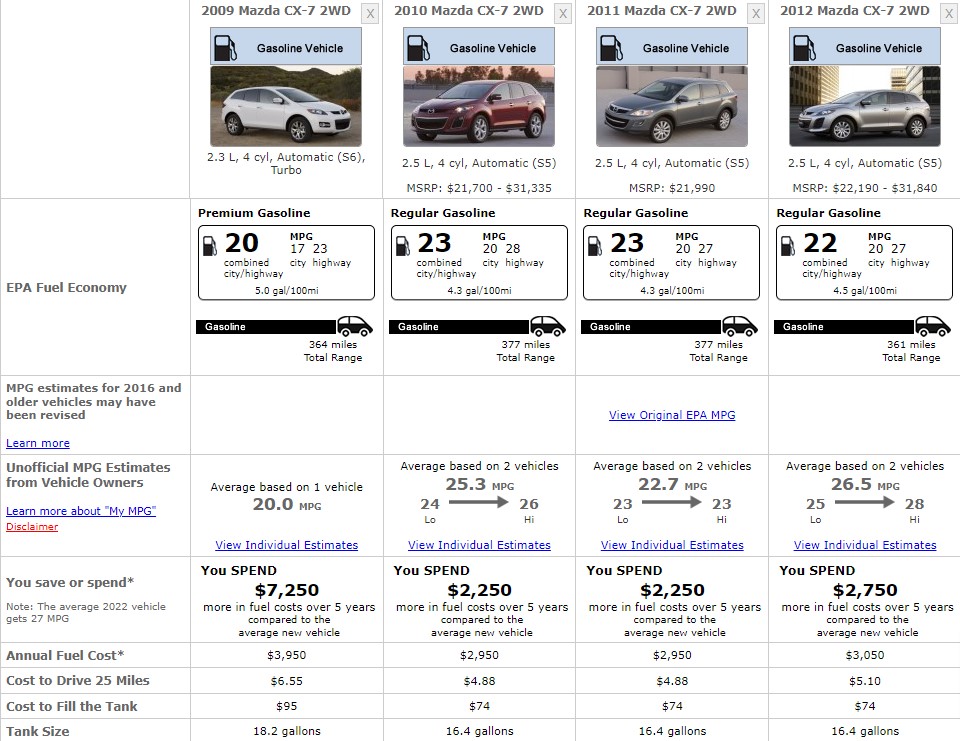

MAZDA CX 7 FUEL CONSUMPTION

Safety Ratings

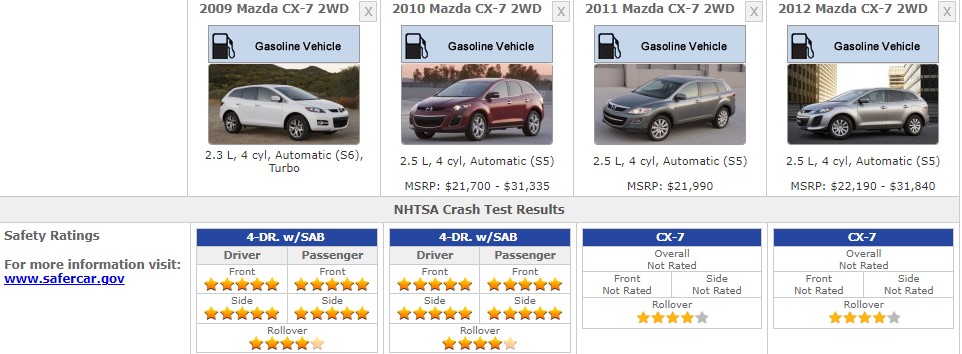

MAZDA CX7 SAFETY RATINGS

References


  1. 2012 Mazda CX-7 Owners Manual

  2. Mazda CX-7- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSAv

Lights

Front Lights

  • Front Fog Light Bulb: H11-55W

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb:

    • 7443-SCK

    • 7444NA

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • H7-55W

    • HID-D2S

Rear Lights

  • Back Up Light Bulb: 7440

  • Brake Light Bulb:

    • 7443-SCK

    • 7443

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 168

  • Parking Light Bulb:

    • 7443-SCK

    • 7444NA

  • Rear Sidemarker Light Bulb: 168

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb:

    • 7443-SCK

    • 7443

Interior Lights

  • Dome Light Bulb: DE3175

  • Luggage Compartment Light Bulb: DE3175

  • Map Light Bulb: 168
