Engine 3.7L 6-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 20FT-LBS

  • Oil capacity: 5.5 quarts

Spark Plug Gap

  • 2.3L 4-Cylinder: 0.044''

Fuel

  • Capacity: 76.0 L (20.1 US gal, 16.7 Imp gal)

Coolant

  • Type: FL-22 type

  • Capacity:

    • Mexico: 12.1 L (12.8 US qt, 10.6 Imp qt

    • Except Mexico With Towing Package: 12.1 L (12.8 US qt, 10.6 Imp qt)

    • Except Mexico Without Towing Package:  11.5 L (12.2 US qt, 10.1 Imp qt)

Automatic transaxle fluid

  • Type: Mazda Genuine JWS3309

  • Capacity: 6.6 L (7.0 US qt, 5.8 Imp qt)

Transfer case oil

  • Type: Mazda Long Life Hypoid Gear Oil SG1

  • Capacity: 0.53 L (0.56 US qt, 0.47 Imp qt)

Rear differential oil

  • Type: API Service GL-5 (SAE 80W-90)

  • Capacity: 1.0 L (1.1 US qt, 0.9 Imp qt

Brake fluid

  • Type: SAE J1703 or FMVSS116 DOT-3

Power Steering Fluid

  • Type: Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)

Washer Fluid

  • Type: Mazda Long Life Hypoid Gear Oil SG1

  • Capacity: 4.5 L (4.8 US qt, 4.0 Imp qt)

Powertrain


Engine

    Gasoline:

  • 3.5 L MZI V6 (2007)

  • 3.7 L MZI V6 (2008–2015)

Transmission

  • 6-speed F21 automatic

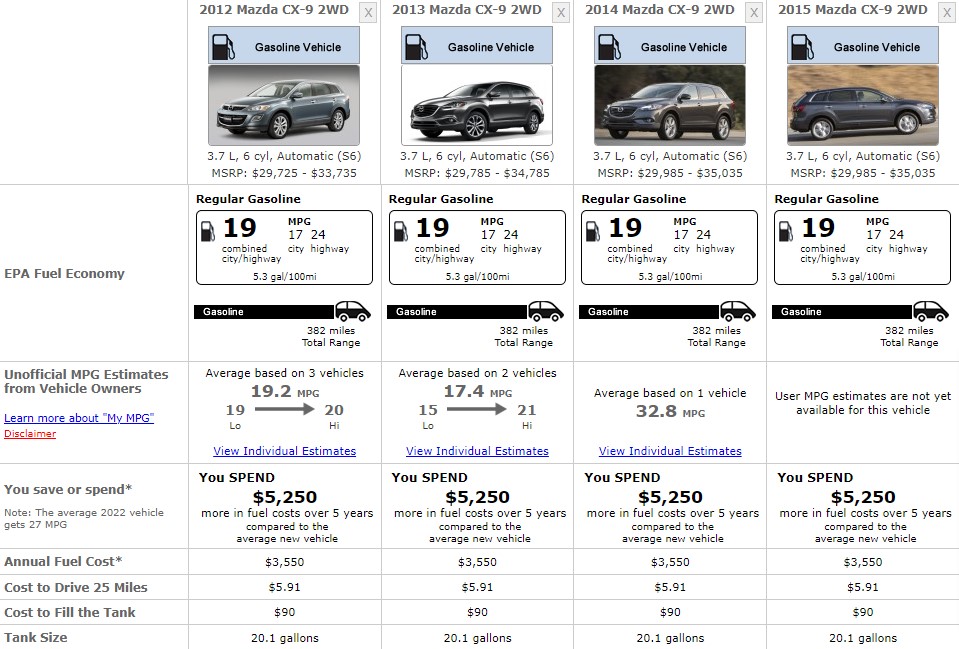

Fuel Consumption


MAZDA CX9 FUEL CONSUMPTION

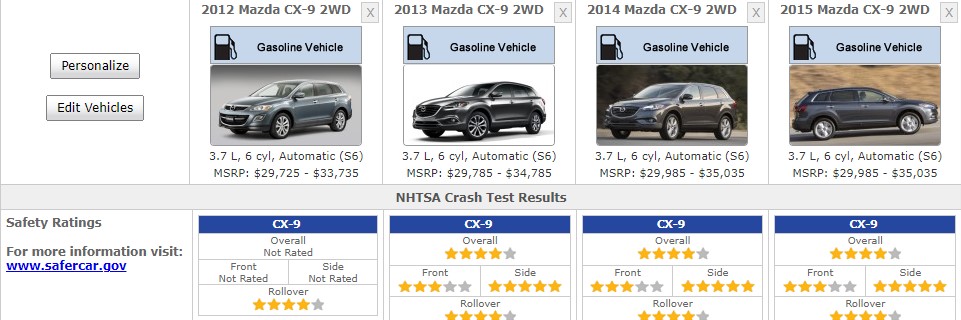

Safety Ratings


MAZDA CX9 SAFETY RATINGS

References


  1. 2015 Mazda CX-9 Owners Manual

  2. Mazda CX-9- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSAv

Lights

Front Lights

  • Daytime Running Light Bulb: 9005, LED

  • Front Fog Light Bulb: H11-55W

  • Front Sidemarker Light Bulb: 2827

  • Front Turn Signal Light Bulb: 7440NA

  • High Beam and Low Beam Headlight Bulb: HID-D4S

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb: H11-55W

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 7443-SCK

    • 7443

  • Center High Mount Stop Light Bulb: LED

  • Inner Tail Light Bulb: 2825

  • License Plate Light Bulb: 2825

  • Outer Tail Light Bulb:

    • 7443-SCK

    • 7443

  • Parking Light Bulb:

    • 2825

    • LED

  • Rear Sidemarker Light Bulb: 2825

  • Rear Turn Signal Light Bulb: 7440NA

Interior Lights

  • Courtesy Light Bulb: 2825

  • Dome Light Bulb: DE3175

  • Interior Door Light Bulb: 168

  • Luggage Compartment Light Bulb: DE3175

  • Map Light Bulb: DE3175
