Engine 1.5L 4-Cylinder DOHC

  • Recommended oil viscosity: 0W-20

  • Oil certification: API

  • Drain Plug Torque: 22-30 FT-LBS

  • Oil capacity: 4.1 quarts

Spark Plug Gap

  • 1.5L 4-Cylinder: 0.048''

Fuel

  • Capacity: 44.0 L (11.6 US gal, 9.68 Imp gal)

Coolant

  • Type: FL-22 type

  • Capacity:

  • SKYACTIV-G 1.5 Manual transaxle

    • Europe Left-hand drive model: 5.4 L (5.7 US qt, 4.8 Imp qt)

    • Europe Right-hand drive model: 5.0 L (5.3 US qt, 4.4 Imp qt)

    • Russia: 5.4 L (5.7 US qt, 4.8 Imp qt)

    • Israel: 5.0 L (5.3 US qt, 4.4 Imp qt)

    • Except above Left-hand drive model 5.0 L (5.3 US qt, 4.4 Imp qt)/ 5.4 L (5.7 US qt, 4.8 Imp qt)

    • Except above (Right hand drive model with heater) : 5.0 L (5.3 US qt, 4.4 Imp qt)

    • Except above (Right hand drive model with heater): 4.5 L (4.8 US qt, 4.0 Imp qt)

  • SKYACTIV-G 1.5 Automatic transaxle

    • Europe Left-hand drive model: 5.6 L (5.9 US qt, 4.9 Imp qt)

    • Europe Right-hand drive model:5.2 L (5.5 US qt, 4.6 Imp qt)

    • Russia: 5.6 L (5.9 US qt, 4.9 Imp qt)

    • Israel, Saudi Arabia: 5.2 L (5.5 US qt, 4.6 Imp qt)

    • Except above Left-hand drive model:5.2 L (5.5 US qt, 4.6 Imp qt)/ 5.6 L (5.9 US qt, 4.9 Imp qt

    • Except above (Right-hand drive model with heater):5.2 L (5.5 US qt, 4.6 Imp qt)

    • Except above (Right-hand drive model with heater): 4.7 L (5.0 US qt, 4.1 Imp qt)

  • SKYACTIV-D 1.5 ( For engine) :

    • Europe:6.6 L (7.0 US qt, 5.8 Imp qt)

    • Except above, Left-hand drive model: 6.7 L (7.1 US qt, 5.9 Imp qt)

    • Except above, Right-hand drive model: 6.8 L (7.2 US qt, 6.0 Imp qt)

    • For water-cooled charge air cooler: 2.0 L (2.1 US qt, 1.8 Imp qt)

Manual transaxle oil

  • Type:

    • API Service: GL-4

    • SAE: 7W-80

  • Capacity:

    • SKYACTIV-G 1.5: 1.59 L (1.68 US qt, 1.40 Imp qt)

    • SKYACTIV-D 1.5: 1.64 L (1.73 US qt, 1.44 Imp qt)

Automatic transaxle fluid

  • Type: Mazda Original Oil ATF-FZ

  • Capacity:

    • SKYACTIV-G 1.3, SKYACTIV-G 1.5: 7.2 L (7.6 US qt, 6.3 Imp qt)

    • SKYACTIV-D 1.5: 7.8 L (8.2 US qt, 6.9 Imp qt)

Brake/Clutch fluid

  • Type: SAE J1703 or FMVSS116 DOT-3 or DOT-4
  • (Except for European models): Use FMVSS116 DOT-4 brake fluid for vehicles equipped with the SKYACTIV-D 1.5 engine and drum-type rear brakes

Powertrain


Engine

  • Gasoline:

    • 1.3 L Skyactiv-G P3-VPS I4

    • 1.5 L Skyactiv-G F-P5 I4

  • Diesel:

    • 1.5 L Skyactiv-D S5-DPTS I4-TD

  • MHEV gasoline:

    • 1.5 L Skyactiv-Hybrid F-P5 + Mazda M Hybrid I4

Transmission

  • 5-speed Skyactiv-MT manual

  • 6-speed Skyactiv-MT manual

  • 6-speed Skyactiv-Drive automatic

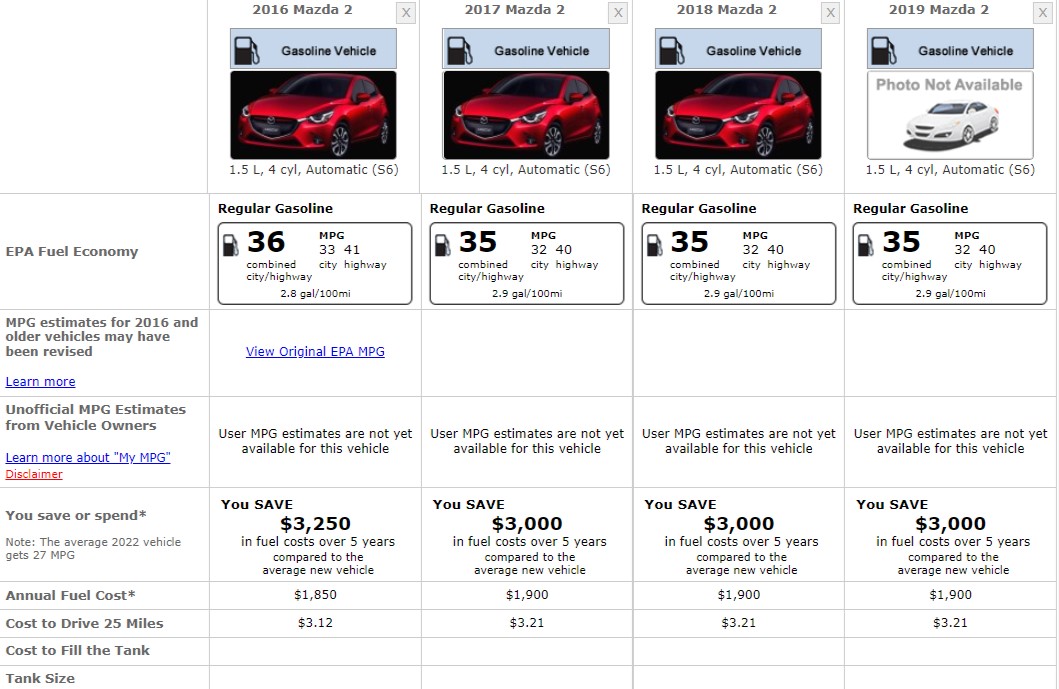

Fuel Consumption


MAZDA 2 FUEL CONSUMPTION

References


  1. 2019 Mazda 2 Owners Manual

  2. Mazda 2- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSAv

Lights

Front Lights

  • Headlights

    • Halogen bulb headlights High/Low beam: 60/55W, H4 (H4)

    • LED headlights High beam: LED

  • Running lights
    • With halogen bulb headlights: 21/5W, W21/5W (7443)

    • With LED headlights: LED

  • Position lights
    • With halogen bulb headlights (with running lights): 21/5W, W21/5W (7443)

    • With LED headlights: LED

  • Front direction indicator lights: 21W, WY21W (7443NA)

  • Front fog lights: 55W, H11 (H11)

  • Side direction indicator lights: LED

  • High-mount brake light: LED

Rear Lights

  • Rear direction indicator lights: 21W, WY21W (7443NA)
  • Brake lights/Tail lights

    • Bulb type21/5W, W21/5W (7443)

    • LED type: LED
  • Reverse lights: 16W, W16W (921)

  • Rear fog light: 21W, W21W (7440)

  • Number plate lights: 5W, W5W

Interior Lights

  • Boot light (Saloon): 3W

  •  Luggage compartment light (Hatchback): 5W

  •  Overhead light (Front)

    •  With map lights: 8W

    •  Without map lights:10W

  •  Overhead light (Rear): 10 W
