Engine 2.0L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 22-30 FT-LBS

  • Oil capacity: 4.4 quarts

Spark Plug Gap

  • 2.0L 4-Cylinder: 0.052''

Engine 2.3L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 22-30 FT-LBS

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 2.3L 4-Cylinder: 0.048''

Fuel

  • Capacity: 55.0 L (14.5 US gal, 12.1 Imp gal)

Coolant

  • Type: FL-22 type

  • Capacity: 7.5 L (7.9 US qt, 6.6 Imp qt)

Manual transaxle oil

  • Type:

  • Without turbocharger, Any temperature:
    • API Service: GL-4

    • SAE: 75W-90

  • Without turbocharger, Above 10°C (50°F)

    • API Service: GL-4

    • SAE: 80W-90

  • With turbocharger:

    • API Service: GL-4

    • SAE:75W-90

  • Capacity:

    • Without turbocharger:2.87 L (3.03 US qt, 2.53 Imp qt)

    • With turbocharger:2.5 L (2.6 US qt, 2.2 Imp qt)

Automatic transaxle fluid

  • Type: ATF M-V

  • Capacity:

    • 4-speed transaxle: 7.2 L (7.6 US qt, 6.3 Imp qt)

    • 5-speed transaxle: 8.14 L (8.60 US qt, 7.16 Imp qt)

Power Steering Fluid

  • Type: ATF M-III or equivalent (e.g. Dexron® II)2

Brake/Clutch fluid

  • Type: SAE J1703 or FMVSS116 DOT-3

Powertrain


Engine

  • Petrol:

    • 1.4 L MZR Z I4

    • 1.5 L MZR ZY-VE I4

    • 1.6 L MZR ZM-DE I4

    • 2.0 L MZR L I4

    • 2.0 L MZR LF-VD I4

    • 2.3 L MZR L I4

  • Diesel:

    • 1.6 L MZ-CD I4

Transmission

  • 5-speed manual

  • 6-speed B2C2-B / RF7J manual

  • 4-speed Ford 4F27E/Mazda FN4A-EL automatic

  • 5-speed automatic

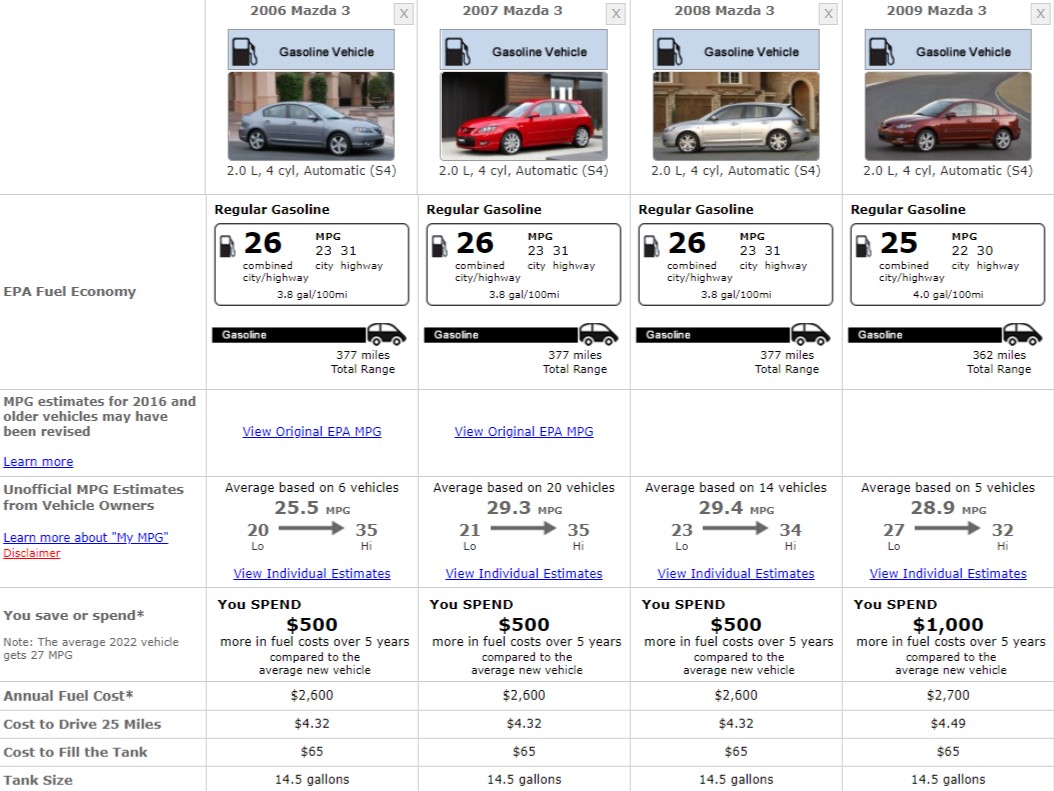

Fuel Consumption


MAZDA 3 FUEL CONSUMPTION

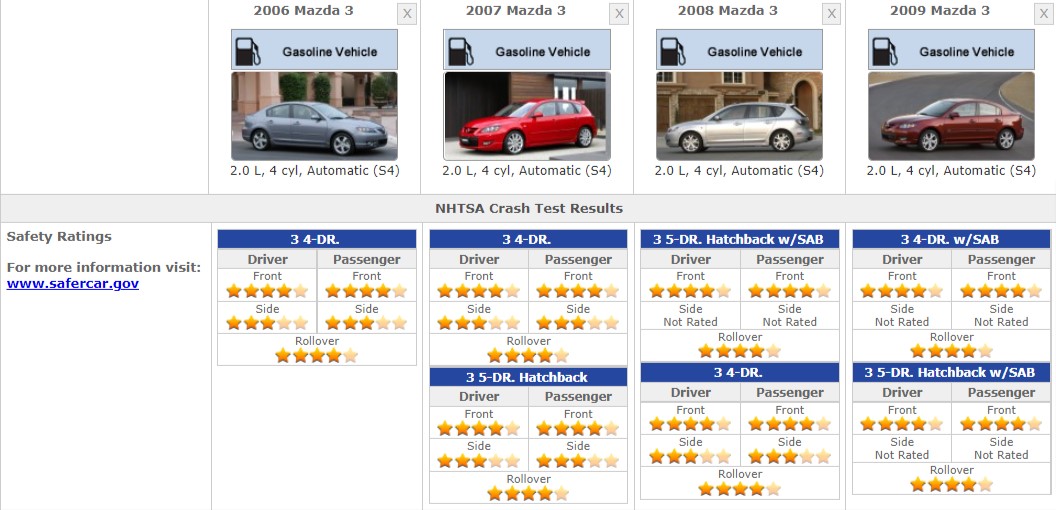

Safety Ratings


MAZDA 3 SAFETY RATINGS

References


  1. 2009 Mazda3 Owners Manual

  2. Mazda3- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSAv

Lights

Front Lights

  • Front Fog Light Bulb: H11-55W

  • Front Inner Turn Signal Light Bulb: 1157NA

  • Front Outer Turn Signal Light Bulb: 2827

  • Front Sidemarker Light Bulb: 1157NA

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • H7-55W

    • HID-D2S

Rear Lights

  • Back Up Light Bulb: 7440

  • Brake Light Bulb:

    • 7443-SCK

    •  7443

  • Center High Mount Stop Light Bulb: 921

  • License Plate Light Bulb: 2825

  • Parking Light Bulb: 1157NA

  • Rear Turn Signal Light Bulb: 7440

  • Tail Light Bulb:

    • 7443-SCK

    •  7443

Interior Lights

  • Dome Light Bulb: DE3175

  • Map Light Bulb: 2825

  • Trunk Light Bulb: 2825
