Engine 2.0L 4-Cylinder SKYACTV

  • Recommended oil viscosity: 0W-20

  • Oil certification: API

  • Oil capacity: 4.4 quarts

Spark Plug Gap

  • 2.0L 4-Cylinder: 0.044''

Engine 2.3L 4-Cylinder DOHC

  • Recommended oil viscosity: 0W-20

  • Oil certification: API

  • Drain Plug Torque: 22-30 FT-LBS

  • Oil capacity: 4.4 quarts

Spark Plug Gap

  • 2.3L 4-Cylinder: 0.052''

Engine 2.3L 4-Cylinder DOHC

  • Recommended oil viscosity: 0W-20

  • Oil certification: API

  • Drain Plug Torque: 23-30 FT-LBS

  • Oil capacity: 5.3 quarts

Spark Plug Gap

  • 2.3L 4-Cylinder: 0.052''

Fuel

  • Capacity:

    • MZR 2.0, SKYACTIV-G 2.0: 55.0 L (14.5 US gal, 12.1 Imp gal)

    • MZR 2.3 DISI Turbo, MZR 2.5: 60.0 L (15.9 US gal, 13.2 Imp gal)

Coolant

  • Type: FL-22 type

  • Capacity:

    • SKYACTIV-G 2.0 Manual transaxle: 7.4 L (7.8 US qt, 6.5 Imp qt)

    • SKYACTIV-G 2.0 Automatic transaxle: 8.2 L (8.7 US qt, 7.2 Imp qt)

    • Except SKYACTIV-G 2.0: 7.5 L (7.9 US qt, 6.6 Imp qt)

Manual transaxle oil

  • Type:

    • API Service: GL-4

    • SAE: 75W-80

  • Capacity:

    • MZR 2.0 : 2.77 L (2.93 US qt, 2.44 Imp qt)

    • SKYACTIV-G 2.0:C1.70 L (1.80 US qt, 1.50 Imp qt)

    • MZR 2.3 DISI Turbo: 2.5 L (2.6 US qt, 2.2 Imp qt)

    • MZR 2.5: 2.85 L (3.01 US qt, 2.51 Imp qt)

Automatic transaxle fluid

  • Type:

    • 5-speed transaxle: Mazda Genuine ATF M-V

    • 6-speed transaxle: Mazda Genuine ATF FZ

  • Capacity:

    • 5-speed transaxle: 8.14 L (8.60 US qt, 7.16 Imp qt)

    • 6-speed transaxle: 7.8 L (8.2 US qt, 6.9 Imp qt)

Power Steering Fluid

  • Type: Mazda Genuine ATF M-III, M-V, or equivalent (e.g. Dexron® II)

Brake/Clutch fluid

  • Type: SAE J1703 or FMVSS116 DOT-3

Powertrain


Engine

  • Petrol:

    • 1.5 L MZR ZY-VE I4

    • 1.6 L MZR ZM-DE I4

    • 2.0 L MZR L I4

    • 2.3 L MZR L DISI I4 turbo

    • 2.5 L MZR L5-VE I4

  • Diesel:

    • 1.6 L MZ-CD I4

    • 2.0 L MZR RF I4

    • 2.2 L MZR R2 I4

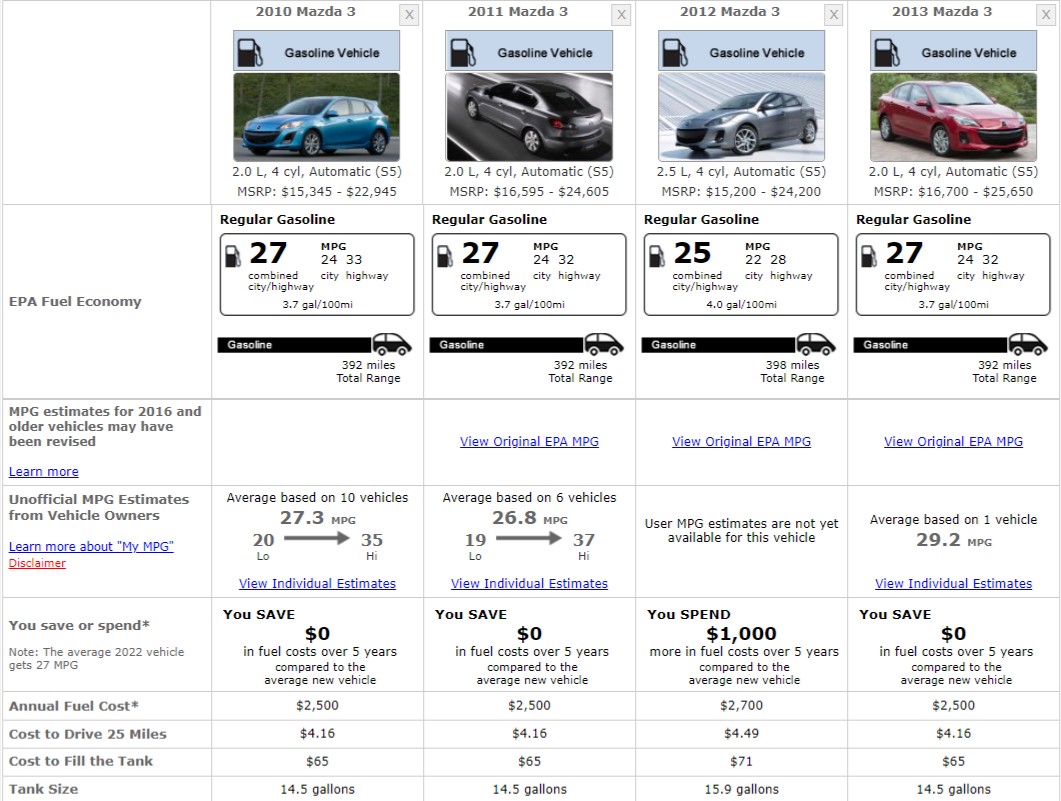

Fuel Consumption


MAZDA 3 FUEL CONSUMPTION

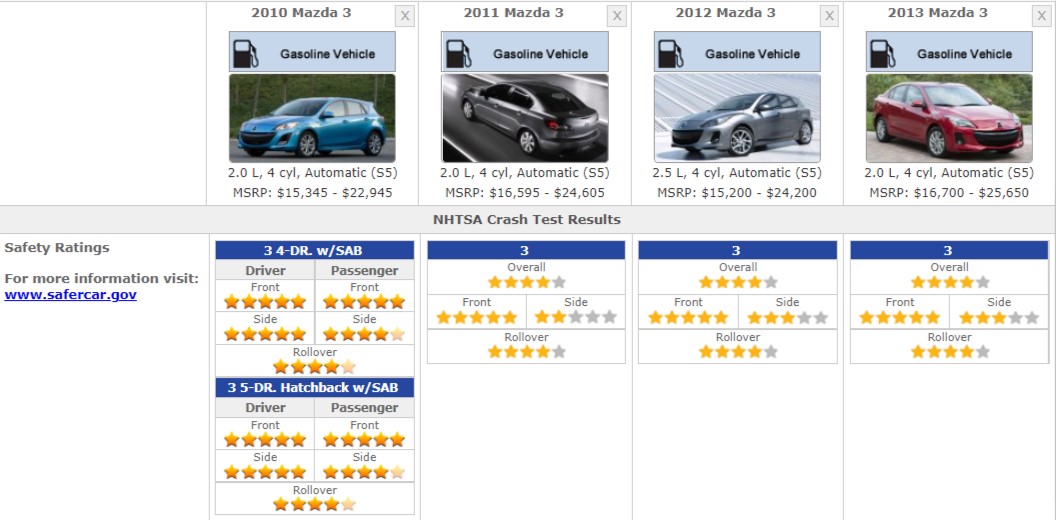

Safety Ratings


MAZDA 3 SAFETY RATINGS

References


  1. 2013 Mazda3 Owners Manual

  2. Mazda3- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSAv

Lights

Front Lights

  • Daytime Running Light Bulb:

    • 7443-SCK

    • 7443

    • H8-35W

  • Front Fog Light Bulb:

    • H11-55W

    • 9006

  • Front Sidemarker Light Bulb:

    • 7443-SCK

    •  7444NA

  • Front Turn Signal Light Bulb:

    • 7443-SCK

    • 7444NA

  • High Beam and Low Beam Headlight Bulb: HID-D2S

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb: H11-55W

Rear Lights

  • Back Up Light Bulb: 7440

  • Brake Light Bulb:

    • 7443-SCK

    • 7443

    • LED

  • Center High Mount Stop Light Bulb:

    • 921

    •  LED

    • 7440

  • License Plate Light Bulb: 2825

  • Parking Light Bulb: 2825

  • Rear Sidemarker Light Bulb:

    • 7443-SCK

    •  744

    • LED

  • Rear Turn Signal Light Bulb:

    • 7440

    • 7440NA

  • Tail Light Bulb:

    • 7443-SCK

    •  7443

    • LED.

Interior Lights

  • Dome Light Bulb: DE3175

  • Luggage Compartment Light Bulb: DE3022

  • Map Light Bulb: DE3175

  • Trunk Light Bulb: 194
