Engine 2.3L 4-Cylinder DOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 22-30FT-LBS

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 2.3L 4-Cylinder: 0.052''

Fuel

  • Capacity:

    • U.S.A. and Canada

      • 2WD: 50.0 L (13.2 US gal, 11.0 Imp gal)

      • AWD: 48.0 L (12.7 US gal, 10.6 Imp gal)

    • Mexico: 51.0 L (13.5 US gal, 11.2 Imp gal)

Coolant

  • Type: FL-22 type

  • Capacity: 7.5 L (7.9 US qt, 6.6 Imp qt)

Manual transaxle oil

  • Type:

    • API Service: GL-4

    • SAE: 75W-80

  • Capacity: 2.77 L (2.93 US qt, 2.44 Imp qt)

Automatic transaxle fluid

  • Type: Mazda Genuine ATF M-V

  • Capacity: 8.14 L (8.60 US qt, 7.16 Imp qt)

Brake/Clutch fluid

  • Type: SAE J1703 or FMVSS116 DOT-3

Power steering fluid

  • Type: Mazda Genuine ATF M-III or equivalent (e.g. Dexron® II)

Powertrain


Engine

  • 1.8 L MZR I4

  • 2.0 L MZR I4

  • 2.3 L MZR I4

  • 2.0 L MZR-CD diesel I4

Transmission

  • 5-speed manual

  • 6-speed manual

  • 4-speed automatic

  • 5-speed automatic

Fuel Consumption

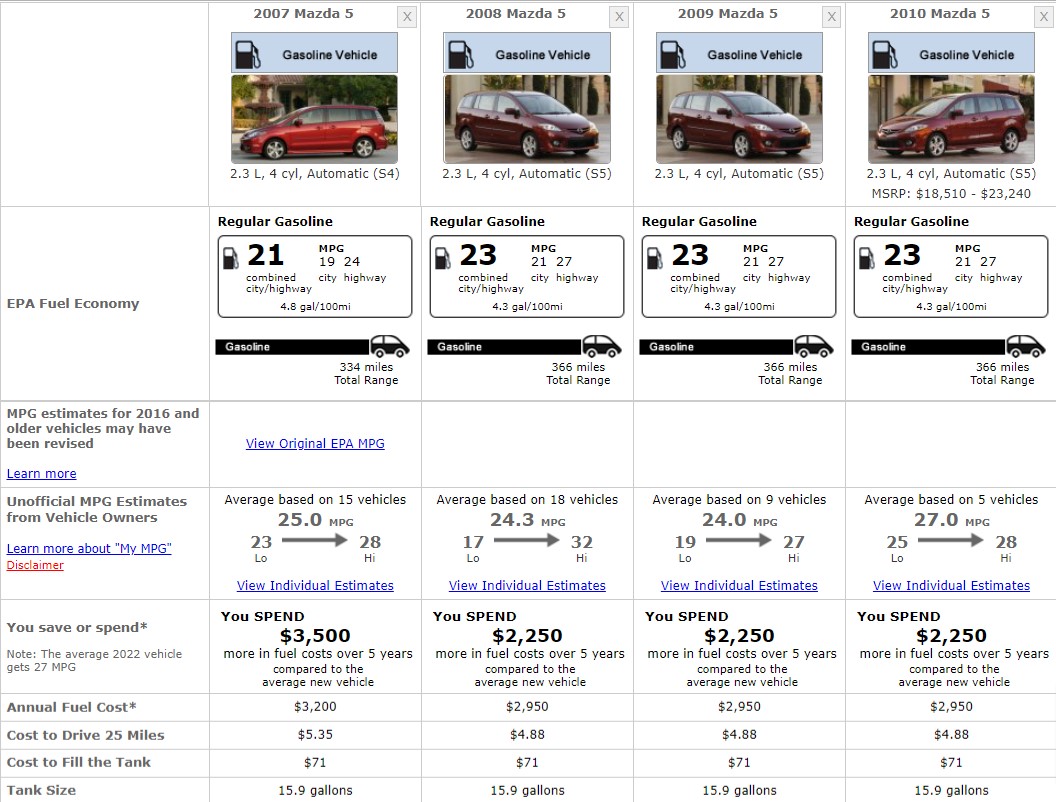

MAZDA 5 FUEL CONSUMPTION

References


  1. 2019 Mazda5 Owners Manual

  2. Mazda5 - Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSAv

Lights

Front Lights

  • Front Fog Light Bulb: H11-55W

  • Front Sidemarker Light Bulb: 1157NA

  • Front Turn Signal Light Bulb: 1157NA

  • High Beam Headlight Bulb: 9005

  • Low Beam Headlight Bulb:

    • H7-55W

    • HID-D2S

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 7443-SCK

    •  7443

    • LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 2825

  • Parking Light Bulb: 1157NA

  • Rear Sidemarker Light Bulb:

    • 7443-SCK

    • 7443

    • LED

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb:

    • 7443-SCK

    • 7443

    • LED

Interior Lights

  • Dome Light Bulb: DE3175

  • Luggage Compartment Light Bulb: DE3175

  • Map Light Bulb: 2825
