Engine 2.3L 4-Cylinder

  • Recommended Oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 21 ft-lbs

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 2.73L 4-Cylinder: 0.054’’

Engine 3.0L 6-Cylinder

  • Recommended Oil viscosity: 5W-20

  • Oil certification: API

  • Drain Plug Torque: 19 ft-lbs

  • Oil capacity: 6.0 quarts

Spark Plug Gap

  • 5.7L 8-Cylinder: 0.054’’

Fuel

  • Capacity: 16.5 gallons (62.5L)

Coolant

  • Type: Mazda yellow-colored Premium Engine Coolant

  • Capacity:

    • 2.3L I4 engine with manual transaxle

    • 2.3L I4 engine with automatic transaxle

    • 3.0L V6 engine with automatic transaxle

Brake fluid

  • Type: High Performance DOT 3 Motor Vehicle Brake Fluid
  • Capacity: Fill to line on reservoir

Power Steering Fluid

  • Type: MERCON

  • Capacity: Fill to line on reservoir

Transmission fluid

  • Type:

    • Manual Transaxle 2WD:  API service GL-5, SAE 75W-140 Synthetic Lubricant

    • Manual Transaxle 4WD: API service GL-5, SAE 75W-140 Synthetic Lubricant

    • 2.3L / 3.0L engine with Automatic transaxle and oil cooler: MERCON ATF

  • Capacity:

    • Manual Transaxle 2WD:  2.4 quarts(2.3L)

    • Manual Transaxle 4WD: 2.5 quarts (2.4L)

    • 2.3L / 3.0L engine with Automatic transaxle and oil cooler: 10.2 quarts (9.6L)

Transfer Case

  • Type:

    • 4WD (Automatic): API service GL-5, SAE 75W-140 Synthetic Lubricant

    • 4WD( Manual): API service GL-5, SAE 80W-90 Synthetic Lubricant

  • Capacity: 12 ounces (0.35L)

Windshield washer fluid

  • Capacity: 4.8 quarts (4.5L)

Powertrain


Engine

  • 2.0 L YF I4 (EPE)

  • 2.3 L L3 I4 (EP3)

  • 3.0 L AJ V6 (EPF)

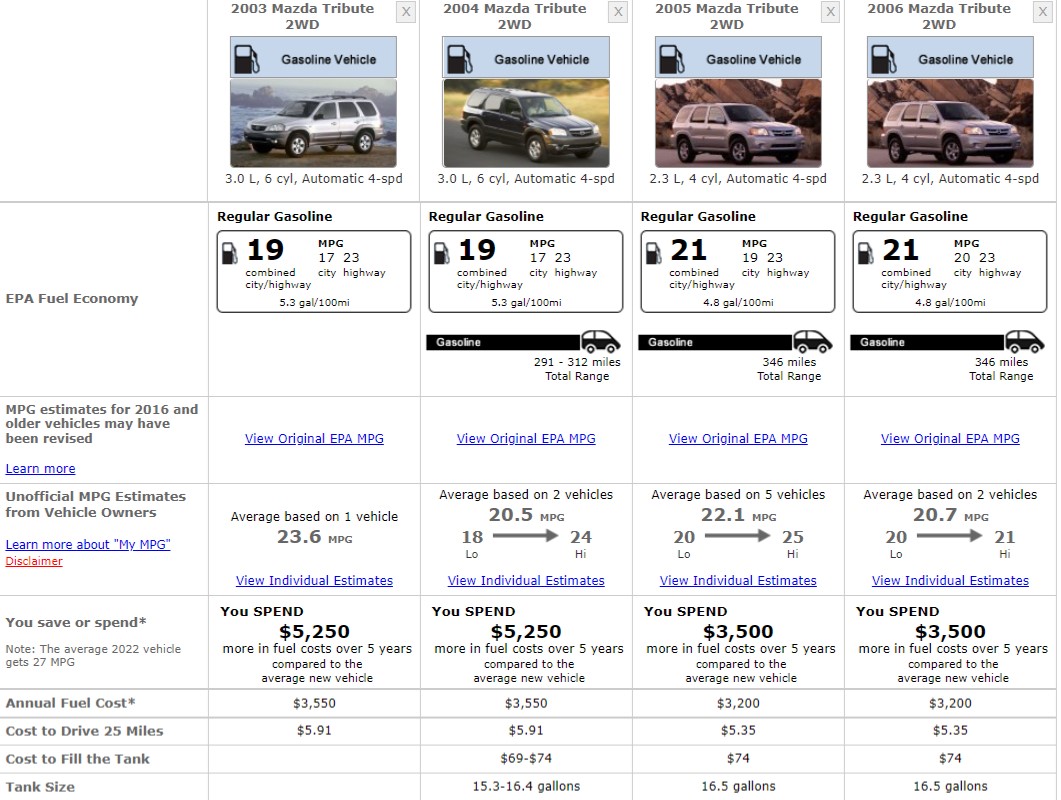

Fuel Consumption


MAZDA TRIBUTE FUEL CONSUMPTION

Safety Ratings


MAZDA TRIBUTE FUEL CONSUMPTION

References


  1. 2006 Mazda Tribute Owners Manual

  2. Mazda Tribute- Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSAv

Lights

Front Lights

  • Front Fog Light Bulb: H1-55W

  • Front Sidemarker Light Bulb:

    • 3157-SCK

    • 3157AK

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3157AK

  • High Beam and Low Beam Headlight Bulb: 9003

Rear Lights

  • Back Up Light Bulb: 7440

  • Brake Light Bulb:

    • 7443-SCK

    • 7443

  • Center High Mount Stop Light Bulb: 168

  • License Plate Light Bulb: 2825

  • Parking Light Bulb:

    • 3157-SCK

    • 3157AK

  • Rear Turn Signal Light Bulb: 7440NA

  • Tail Light Bulb:

    • 7443-SCK

    • 7443

Interior Lights

  • Ash Tray Light Bulb: 161

  • Courtesy Light Bulb: 168

  • Dome Light Bulb: 912

  • Glove Box Light Bulb: 161

  • Luggage Compartment Light Bulb: 211-2

  • Map Light Bulb: 168
