Chassis

  • Type: W163

Engine 3.7L 6-Cylinder DOHC

  • Recommended Oil viscosity: 0W-40

  • Recommended Engine Oil: SL

  • Drain Plug Torque: 27FT-LBS

  • Oil capacity: 8.5 qt

Spark Plug Gap

  • 2.0L 4-Cylinder: 0.044'

Brake Fluid

  • Type: Only use brake fluid approved for Mercedes-Benz according to MB-Freigabe or MB-Approval 331.0.

Fuel

  • Capacity: 24.6 US gal (93.0 l)

DEF

  • Capacity: 7.3 US gal (27.5 l)

Coolant

  • Type:

  • Capacity:

    • ML 350:Approx. 11.1 US qt (10.5 l)

    • ML 350 4MATIC:Approx. 11.1 US qt (10.5 l)

    • ML 400: Approx. 10.9 US qt (10.3 l)

    • ML 400 4MATIC: Approx. 10.9 US qt (10.3 l)

    • ML 550 4MATIC: Approx. 12.0 US qt (11.4 l)

    • ML 250 BlueTEC 4MATIC: Approx. 10.7 US qt (10.1 l)

    • ML 350 BlueTEC 4MATIC: Approx. 12.2 US qt (11.5 l)

    • Approx. 12.2 US qt (11.5 l): Approx. 12.2 US qt (11.5 l)

Refrigerant

  • Capacity: 37.0 ± 0.4 oz (1050 ± 10 g)

PAG oil

  • Capacity: 4.9 ± 0.4 oz (140 ± 10 g)

Washer Fluid

  • Type: Only use windshield washer fluid which is also suitable for use on plastic surfaces, e.g. MB SummerFit or MB Winter-Fit.

Powertrain


Engine

  • 2.3 L I4 (150 hp only manual)

  • 2.7 L I5 (Diesel)

  • 3.2 L V6

  • 3.7 L V6

  • 4.3 L V8

  • 5.0 L V8

  • 5.5 L V8

Transmission

  • 5-speed manual

  • 5-speed automatic

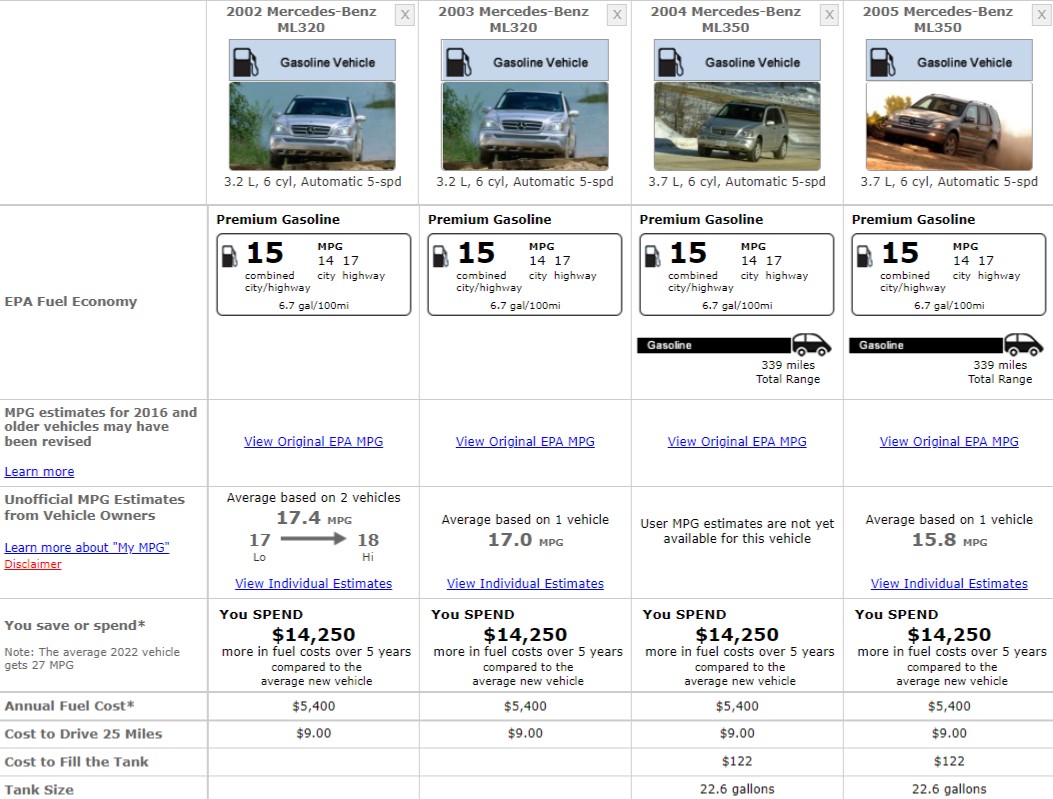

Fuel Consumption


MERCEDES-BENZ M-CLASS FUEL CONSUMPTION



References


  1. 2005 Mercedes-Benz ML-Class Owners Manual

  2. Mercedes-Benz ML - Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • Front Fog Light Bulb: H8-35W

  • Front Sidemarker Light Bulb: 1157NA

  • Front Turn Signal Light Bulb: 1157NA

  • High Beam Headlight Bulb: H7-55W

  • Low Beam Headlight Bulb:

    • H7-55W

    • HID-D2S

Rear Lights

  • Back Up Light Bulb: 7506

  • Brake Light Bulb: 7506

  • Center High Mount Stop Light Bulb: 7506

  • License Plate Light Bulb: 6418

  • Parking Light Bulb: 1157NA

  • Rear Sidemarker Light Bulb: 2825

  • Rear Turn Signal Light Bulb: 12496

  • Tail Light Bulb: 7225

Interior Lights

  • Courtesy Light Bulb: 6418

  • Dome Light Bulb: 6411

  • Glove Box Light Bulb: 6418

  • Luggage Compartment Light Bulb: 6411

  • Map Light Bulb: 6411
