Engine 2.4L 4-Cylinder SOHC

  • Recommended Oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 26-32 ft-lbs

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 2.4L 4-Cylinder: 0.032"

Engine 3.8L 6-Cylinder SOHC

  • Recommended oil viscosity: 5W-20

  • Oil certification: API

  • Drain plug torque: 26-32 ft-lbs

  • Oil capacity: 4.5 quarts

Spark Plug Gap

  • 3.8L 6-Cylinder: 0.032"

Engine  Coolant

  • Type: Long Life Antifreeze Coolant or an equivalent

  • Capacity

    • 2.4 Liter

      • Capacity: Manual Transmission: 9.3 quarts

      • Capacity: Automatic Transmission: 9.2 quarts

    • 3.8 Liter

      • Capacity: Manual Transmission: 8.6 quarts

      • Capacity: Automatic Transmission: 8.5 quarts

Fuel

  • Capacity: 17.7 Gallons ( 67 Liters)

Automatic Transaxle

  • Type: DIAMOND ATF SP III

  • Capacity

    • ​​​​​4A/T 8.1 qt (7.7 L)

    • 5A/T 8.9 qt (8.4 L)

Brake Fluid

  • Type: Brake fluid DOT3 or DOT4

A/C  Refrigerant

  • Type: R134A

  • Capacity : 4.2 qt (4.0 L)

Washer Fluid

  • Capacity: 4.2 qt (4.0 L)

Powertrain


Engine

  • 2.0 L 140 hp (104 kW) 420A I4

  • 2.4 L 141 hp (105 kW) 4G64 I4

  • 2.4 L 141 hp (105 kW) 4G64 I4

Transmission

  • 4-speed automatic

  • 5-speed manual

Manual Transaxle

  • Type: DiaQueen NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80

  • Capacity:

    • 5M/T 2.3 qt (2.2 L)

    • 6M/T 2.1 qt (2.0 L)

Fuel Consumption

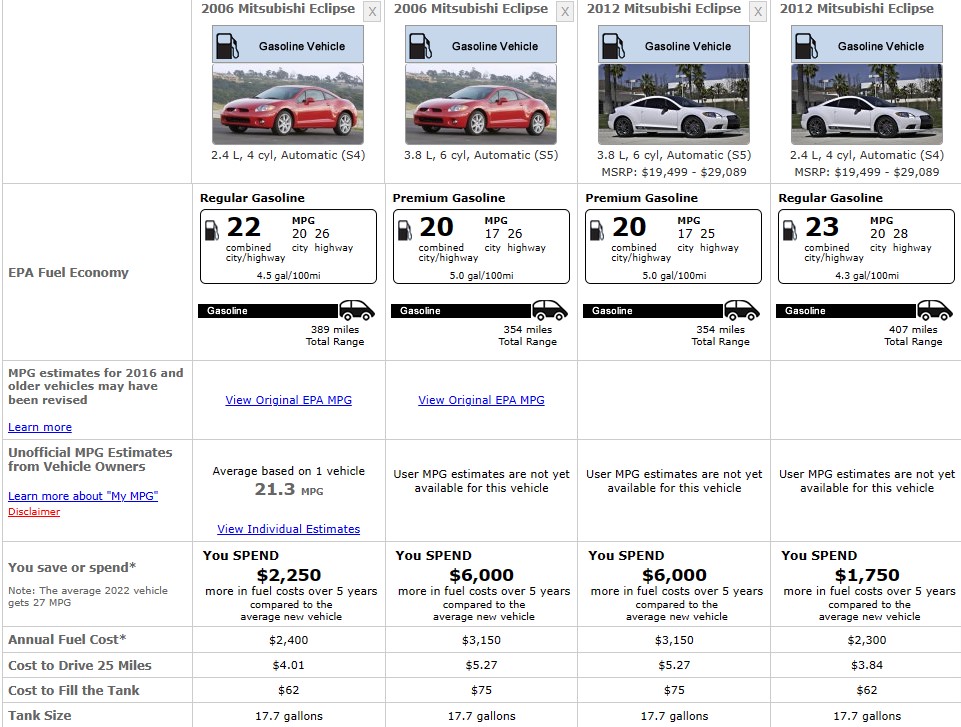

Fuel Economy Eclipse

References


  1. 2012 Mitsubishi Eclipse Owner’s Manual
  2. Mitsubishi Eclipse-  Wikipedia.org
  3. US Department of Energy- FuelEconomy.gov
  4. NHSTA | National Highway Traffic Safety Administration -  NHTSA.gov



Lights

Front Lights

  • LED Driving Lights & Fog Lights: FDC-MB1

  • Front Fog Light Bulb: 9145

  • Front Side Marker Light Bulb

    • 3157-SCK

    • 3457AK

    • 194NA

  • Front Turn Signal Light Bulb

    • 3157-SCK

    • 3457AK

    • 3156AK

  • High Beam and Low Beam Headlight Bulb: H13, HID-D1S

Rear Exterior Lights

  • Back-Up Light Bulb:3156K

  • Brake Light Bulb: LED

  • Center High Mount Stop Light Bulb: LED

  • License Plate Light Bulb: 2825

  • Parking Light Bulb:

    • 3157-SCK

    • 3457AK

    • 194NA

  • Rear Side marker Light Bulb: 168

  • Rear Turn Signal Light Bulb

    • 3157-SCK

    • 3157AK

Interior Lights

  • Courtesy Light Bulb: 74

  • Glove Box Light Bulb: 74

  • Trunk Light Bulb: DE3022
