Chassis

  • Type: W22

Engine 2.4L 4-Cylinder DOHC

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: API

  • Drain Plug Torque: 22-29FT-LBS

  • Oil capacity: 3.5 qt

Spark Plug Gap

  • 2.4L 4-Cylinder: 0.044''

Engine 3.3L 6-Cylinder SOHC

  • Recommended Oil viscosity: 5W-30

  • Recommended Engine Oil: API

  • Drain Plug Torque: 22-29FT-LBS

  • Oil capacity: 3.5 qt

Spark Plug Gap

  • 3.3L 6-Cylinder: 0.044''

Fuel

  • Capacity:

    • KA24DE (4 cylinder): 18–3/4 gal (71.0 L)
    • VG33E (6 cylinder): 19–3/8 gal (73.5 L)

    • VG33ER (6 cylinder with supercharger) : 19–3/8 gal (73.5L)

Cooling system (with heater and reservoir tank)

  • Type: 50% Genuine NISSAN Long Life Antifreeze/Coolant or equivalent, 50% Demineralized or distilled water

  • Capacity:

    • KA24DE M/T 4X2: 7–3/4 qt (7.3 L)
    •  VG33E/VG33ER A/T & M/T:11–5/8 qt (10.95L)

Manual transmission gear oil

  • Type: Genuine NISSAN Manual Transmission Fluid HQ Multi 75W-85 or equivalent
  • Capacity:

    • KA24DE M/T 4X2: 4–1/4 pt (2.0 L)
    •  VG33E/VG33ER 4X2: 5–7/8 pt (2.8L)

    •  VG33E/VG33ER 4X4: 10–3/4 pt (5.1L)

Final drive gear oil

  • Type: API GL-5, Viscosity SAE 80W-90*1 or 80W-90 LS*1 for Limited Slip Differential (LSD) applications
  • Capacity:

    • KA24DE M/T 4X2: 2–3/4 pt (1.3 L)
    •  VG33E/VG33ER 4X4 Front: 3–3/4 pt (1.75L)

    •   VG33E/VG33ER 4X4 Rear: 5–7/8 pt (2.2L)

Transfer fluid



  • Type: API GL-4, Viscosity SAE 75W-85 or 75W-90 or Genuine Nissan Matic D ATF (Continental U.S. and Alaska) or Canada NISSAN Automatic Transmission Fluid.
  • Capacity: 2–3/8 qt (2.2L)

Automatic transmission fluid

  • Type: Genuine Nissan Matic D ATF (Continental U.S. and Alaska) or Canada NISSAN Automatic Transmission Fluid



Power steering fluid (PSF)

  • Type: Genuine NISSAN PSF or equivalent

​​​​​​​Brake and clutch fluid

  • Type: Genuine NISSAN Super Heavy Duty Brake Fluid*4 or equivalent Dot 3 (US FMVSS No. 116)

Multi-purpose grease

  • Type: NLGI No. 2 (Lithium Complex)

Air conditioning system refrigerant

  • Type: HFC-134a (R-134a)
  • Capacity: 1.32 – 1.54 lb(0.60 – 0.70)kg

Air conditioning system oil

  • Type: NISSAN A/C System Oil Type ND-OIL8 or equivalent
  • Capacity: 6.8 oz ( 200 ml)

Windshield washer fluid (shared between front and rear wipers)

  • Type: Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent

Powertrain


Engine

  • Gasoline:

    • 2.4 L KA24DE 143 hp (107 kW) I4

    • 3.3 L VG33E 170 hp (130 kW) V6

    • 3.3 L VG33E 180 hp (130 kW) V6

    • 3.3 L supercharged VG33ER 210 hp (160 kW) V6

  • Diesel:

    • 2.8 L TDI 4.07TCA 132 hp (98 kW) I4

    • 2.8 L TDI CRD 4.07TCE 140 hp (100 kW) I4

Transmission

  • 4-speed automatic

  • 5-speed manual

Fuel Consumption

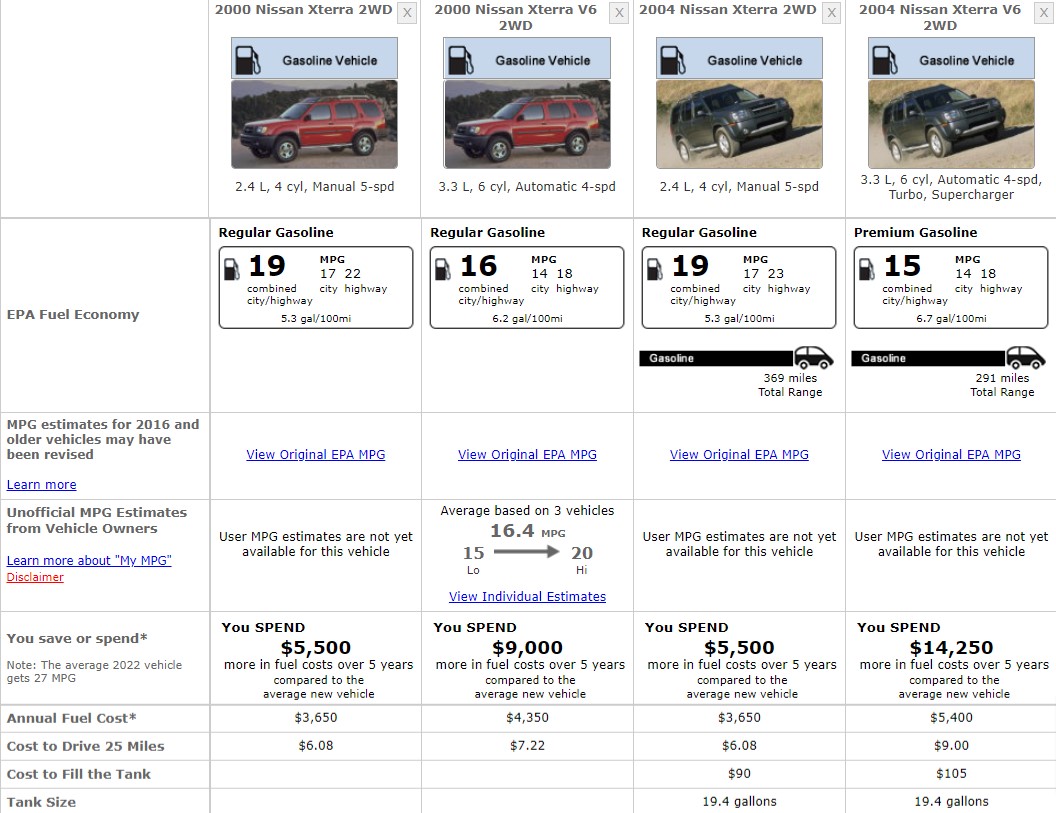

NISSAN XTERRA W222 FUEL CONSUMPTION

References


  1. 2004 Nissan Sentra Owners Manual

  2. 2004 Nissan Sentra - Class Wikipedia.org

  3. US Department of Energy - FuelEconomy.gov

  4. NHTSA | National Highway Traffic Safety Administration -  NHTNHTSA

Lights

Front Lights

  • LED Driving Lights & Fog Lights: FDC-MB1

  • Front Fog Light Bulb: 899

  • Front Sidemarker Light Bulb: 168

  • Front Turn Signal Light Bulb:

    • 3157-SCK

    • 3457AK

  • High Beam and Low Beam Headlight Bulb: 9007

Rear Lights

  • Back Up Light Bulb: 921

  • Brake Light Bulb:

    • 3157-SCK

    • 3057K

  • Center High Mount Stop Light Bulb: 912

  • License Plate Light Bulb: 168

  • Parking Light Bulb:

    • 3157-SCK

    • 168

    • 3457AK

  • Rear Turn Signal Light Bulb:

    • 3157-SCK

    • 3157NAK

  • Tail Light Bulb:

    • 3157-SCK

    • 3057K

Interior Lights

  • Dome Light Bulb: DE3175

  • Map Light Bulb: 168
